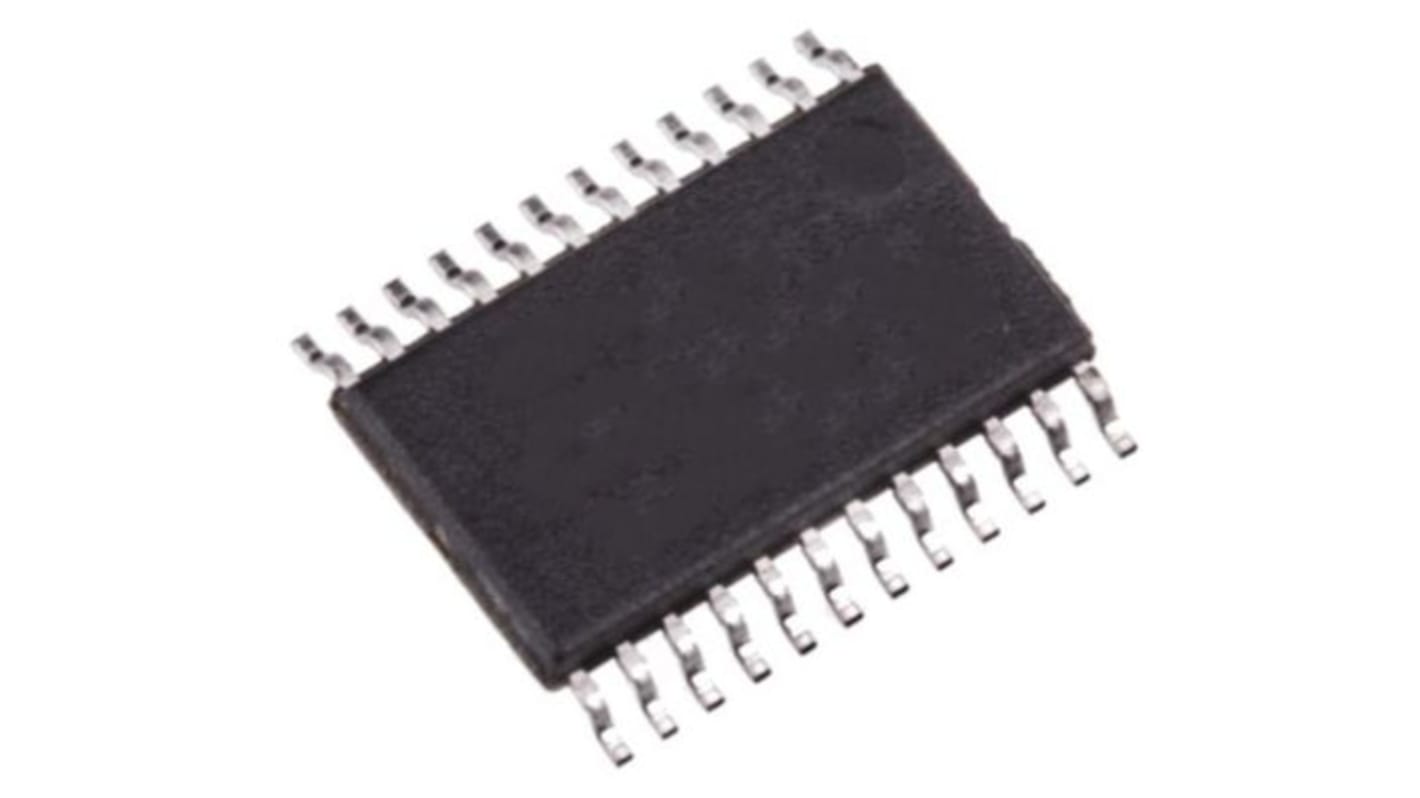

Renesas Electronics QS3861PAG8, Bus Switch, 24-Pin TSSOP
- RS-stocknr.:
- 217-3757
- Fabrikantnummer:
- QS3861PAG8
- Fabrikant:
- Renesas Electronics
Subtotaal (1 verpakking van 25 eenheden)*
€ 12,175
(excl. BTW)
€ 14,725
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 4.375 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per verpakking* |
|---|---|---|
| 25 + | € 0,487 | € 12,18 |
*prijsindicatie
- RS-stocknr.:
- 217-3757
- Fabrikantnummer:
- QS3861PAG8
- Fabrikant:
- Renesas Electronics
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Renesas Electronics | |
| Product Type | Bus Switch | |
| Logic Family | CMOS | |
| Number of Elements per Chip | 1 | |
| Mount Type | Surface | |
| Maximum Quiescent Current | 3μA | |
| Minimum Supply Voltage | 2.3V | |
| Package Type | TSSOP | |
| Pin Count | 24 | |
| Maximum Supply Voltage | 3.6V | |
| Maximum Propagation Delay Time @ CL | 0.25ns | |
| Maximum On State Resistance | 15Ω | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Series | QS3861 | |
| Length | 8.7mm | |
| Height | 1.47mm | |
| Automotive Standard | No | |
| Alles selecteren | ||
|---|---|---|
Merk Renesas Electronics | ||
Product Type Bus Switch | ||
Logic Family CMOS | ||
Number of Elements per Chip 1 | ||
Mount Type Surface | ||
Maximum Quiescent Current 3μA | ||
Minimum Supply Voltage 2.3V | ||
Package Type TSSOP | ||
Pin Count 24 | ||
Maximum Supply Voltage 3.6V | ||
Maximum Propagation Delay Time @ CL 0.25ns | ||
Maximum On State Resistance 15Ω | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Series QS3861 | ||
Length 8.7mm | ||
Height 1.47mm | ||
Automotive Standard No | ||
The Renesas Electronics QS3861 series bus switch provides a set of ten high-speed CMOS TTL-compatible bus switches. The low ON resistance (5 ohm) of the QS3861 allows inputs to be connected without adding propagation delay. It has 24 lead count and has TSSOP package type.
Enhanced N channel FET with no inherent diode to Vcc
5 ohm bidirectional switches connect inputs to outputs
Zero propagation delay, zero ground bounce
Undershoot clamp diodes on all switch and control inputs
