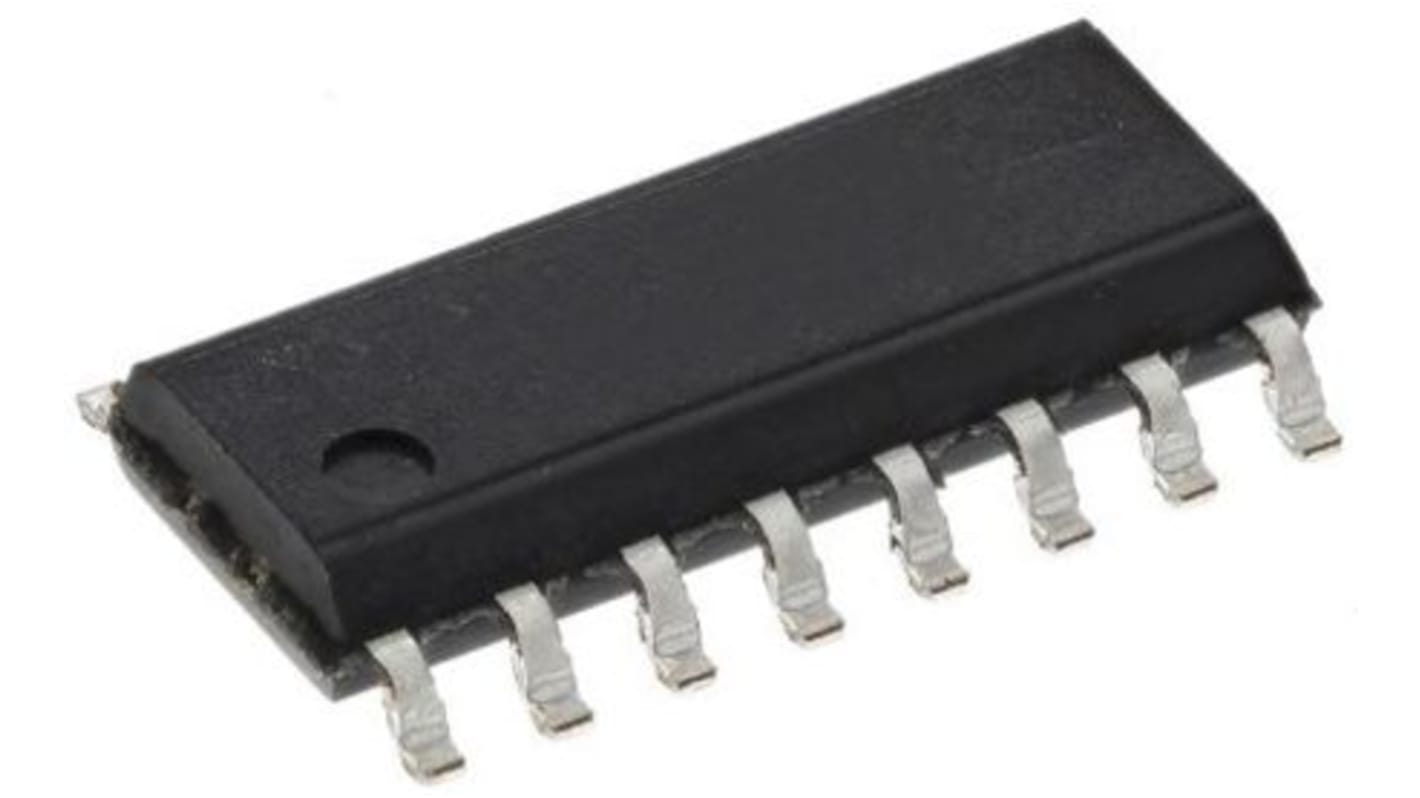

Renesas Electronics QS3253QG, Bus Switch, 2 x 4:1, 16-Pin QSOP
- RS-stocknr.:
- 217-7954
- Fabrikantnummer:
- QS3253QG
- Fabrikant:
- Renesas Electronics
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 tube van 97 eenheden)*
€ 35,987
(excl. BTW)
€ 43,553
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 97 stuk(s) vanaf 17 augustus 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per tube* |
|---|---|---|
| 97 - 97 | € 0,371 | € 35,99 |
| 194 - 485 | € 0,304 | € 29,49 |
| 582 - 970 | € 0,293 | € 28,42 |
| 1067 - 2425 | € 0,286 | € 27,74 |
| 2522 + | € 0,278 | € 26,97 |
*prijsindicatie
- RS-stocknr.:
- 217-7954
- Fabrikantnummer:
- QS3253QG
- Fabrikant:
- Renesas Electronics
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Renesas Electronics | |
| Product Type | Bus Switch | |
| Logic Family | CMOS | |
| Configuration | 2 x 4:1 | |
| Number of Elements per Chip | 20 | |
| Mount Type | Surface | |
| Maximum Quiescent Current | 3μA | |
| Minimum Supply Voltage | 2.3V | |
| Package Type | QSOP | |
| Maximum Supply Voltage | 3.6V | |
| Pin Count | 16 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Propagation Delay Time @ CL | 0.25ns | |
| Maximum On State Resistance | 15Ω | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Height | 1.47mm | |
| Series | QS3253 | |
| Length | 8.7mm | |
| Automotive Standard | No | |
| Alles selecteren | ||
|---|---|---|
Merk Renesas Electronics | ||
Product Type Bus Switch | ||
Logic Family CMOS | ||
Configuration 2 x 4:1 | ||
Number of Elements per Chip 20 | ||
Mount Type Surface | ||
Maximum Quiescent Current 3μA | ||
Minimum Supply Voltage 2.3V | ||
Package Type QSOP | ||
Maximum Supply Voltage 3.6V | ||
Pin Count 16 | ||
Minimum Operating Temperature -40°C | ||
Maximum Propagation Delay Time @ CL 0.25ns | ||
Maximum On State Resistance 15Ω | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Height 1.47mm | ||
Series QS3253 | ||
Length 8.7mm | ||
Automotive Standard No | ||
The Renesas Electronics QS3253 is a high-speed CMOS TTL-compatible dual 4:1 multiplexer/ demultiplexer with 3-state outputs. The QS3253 is function and pinout compatible version of the 74F253, 74FCT253, and the 74ALS/AS/ LS253 dual 4:1 multiplexers. The low ON resistance of the QS3253 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The QS3253 operates at -40C to +85C.
Enhanced N channel FET with no inherent diode to Vcc
5 ohm bidirectional switches connect inputs to outputs
Zero propagation delay, zero ground bounce
Undershoot clamp diodes on all switch and control inputs
TTL-compatible control inputs
Available in 16 pin QSOP and S1 packages
