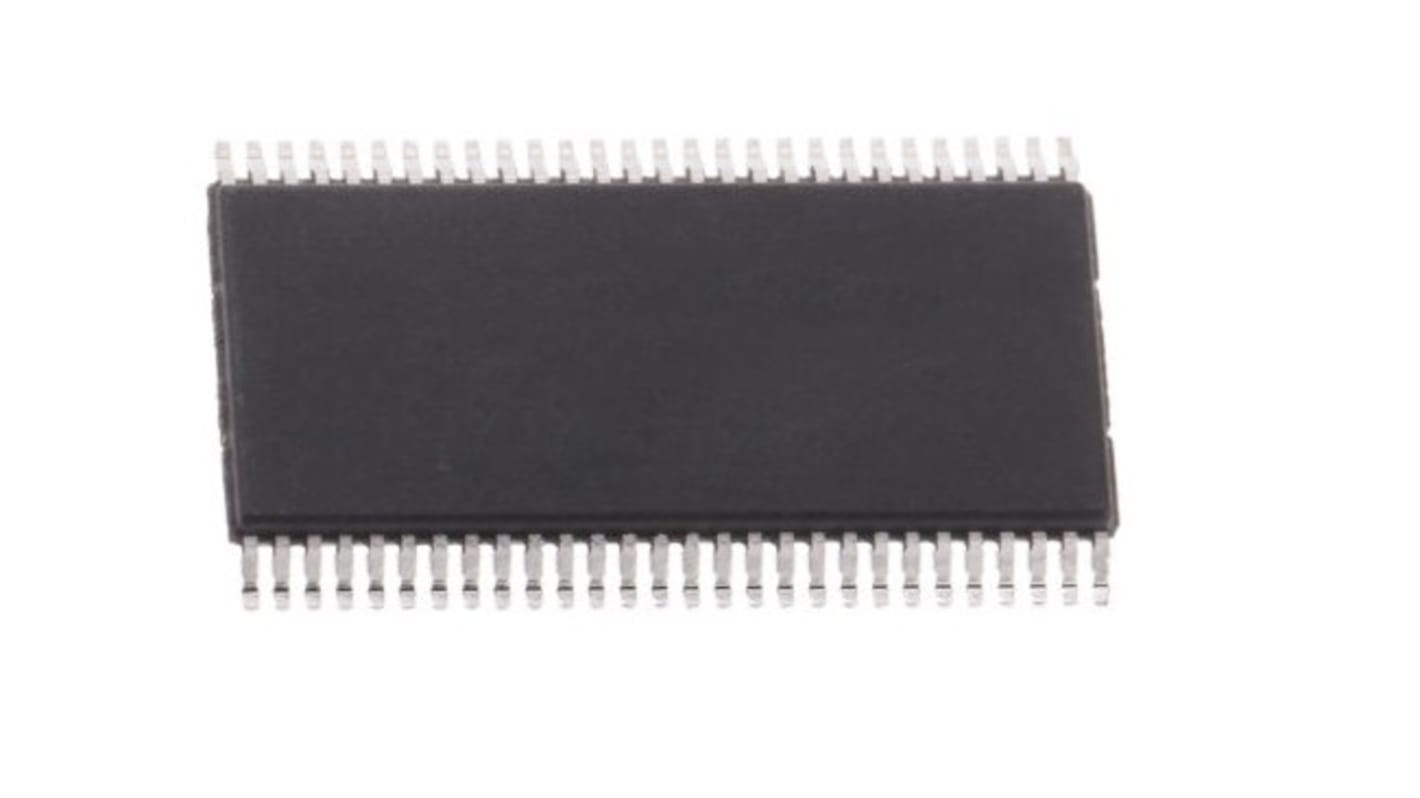

Renesas Electronics QS3VH16233PAG8, Bus Switch, MUX/DEMUX, 56-Pin TSSOP
- RS-stocknr.:
- 264-3541P
- Fabrikantnummer:
- QS3VH16233PAG8
- Fabrikant:
- Renesas Electronics
Afbeelding representeert productcategorie
Momenteel niet beschikbaar
We weten niet of dit item nog op voorraad komt, RS is van plan dit binnenkort uit ons assortiment te halen.
- RS-stocknr.:
- 264-3541P
- Fabrikantnummer:
- QS3VH16233PAG8
- Fabrikant:
- Renesas Electronics
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Renesas Electronics | |
| Product Type | Bus Switch | |
| Logic Family | LVTTL | |
| Configuration | MUX/DEMUX | |
| Maximum Quiescent Current | 3mA | |
| Minimum Supply Voltage | 2.3V | |
| Package Type | TSSOP | |
| Maximum Supply Voltage | 4.6V | |
| Pin Count | 56 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Propagation Delay Time @ CL | 0.2ns | |
| Maximum On State Resistance | 4Ω | |
| Maximum Operating Temperature | 85°C | |
| Series | QS3VH | |
| Standards/Approvals | Industrial | |
| Automotive Standard | No | |
| Alles selecteren | ||
|---|---|---|
Merk Renesas Electronics | ||
Product Type Bus Switch | ||
Logic Family LVTTL | ||
Configuration MUX/DEMUX | ||
Maximum Quiescent Current 3mA | ||
Minimum Supply Voltage 2.3V | ||
Package Type TSSOP | ||
Maximum Supply Voltage 4.6V | ||
Pin Count 56 | ||
Minimum Operating Temperature -40°C | ||
Maximum Propagation Delay Time @ CL 0.2ns | ||
Maximum On State Resistance 4Ω | ||
Maximum Operating Temperature 85°C | ||
Series QS3VH | ||
Standards/Approvals Industrial | ||
Automotive Standard No | ||
The Renesas Electronics Hot switch is a 32 bit to 16 bit high bandwidth bus switch which can multiplex or demultiplex data. It has very low ON resistance resulting in under 250ps propagation delay through the switch. This device can be used as two 16 bit to 8 bit multiplexers or as one 32 bit to 16 bit multiplexer. SELx inputs control the data flow. It has TESTx inputs control either one or two ports connection. In the OFF and ON states the switches are 5V tolerant. In the OFF state the switches offer very high impedance at the terminals.
Low RON 4 Ω typical present
Flat RON characteristics over operating range
Bidirectional dataflow with near zero delay available
Excellent RON matching between channels
Vcc operation is from ranging 2.3 V to 3.6 V available
High bandwidth up to 500 MHz present
LVTTL compatible control inputs available
Undershoot clamp diodes on all switch and control inputs
