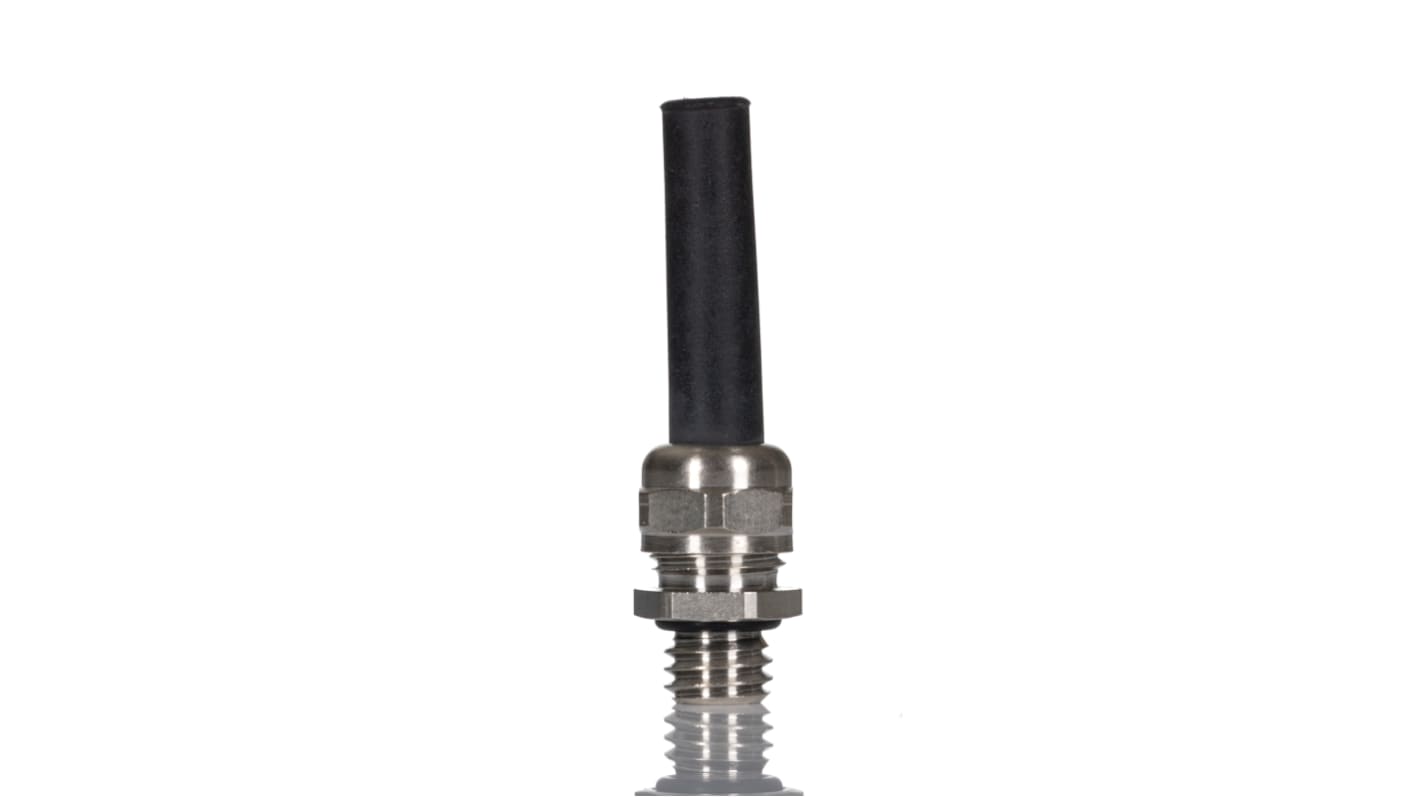

SES Sterling A1 Series Metallic Nickel Plated Brass Cable Gland, M8 Thread, 3.8 mm min., 4.8 mm max., IP68
- RS-stocknr.:
- 161-4509
- Fabrikantnummer:
- A1008.52
- Fabrikant:
- SES Sterling
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 12,06
(excl. BTW)
€ 14,59
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Laatste voorraad RS
- Laatste 62 stuk(s), klaar voor verzending vanaf een andere locatie
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 12,06 |
| 5 - 9 | € 11,43 |
| 10 + | € 11,10 |
*prijsindicatie
- RS-stocknr.:
- 161-4509
- Fabrikantnummer:
- A1008.52
- Fabrikant:
- SES Sterling
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SES Sterling | |
| Product Type | Cable Gland | |
| Thread Size | M8 | |
| Maximum Cable Diameter | 4.8mm | |
| Minimum Cable Diameter | 3.8mm | |
| Material | Nickel Plated Brass | |
| Colour | Metallic | |
| Series | A1 | |
| IP Rating | IP68 | |
| Hazardous Area Certification | NO | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | No | |
| Alles selecteren | ||
|---|---|---|
Merk SES Sterling | ||
Product Type Cable Gland | ||
Thread Size M8 | ||
Maximum Cable Diameter 4.8mm | ||
Minimum Cable Diameter 3.8mm | ||
Material Nickel Plated Brass | ||
Colour Metallic | ||
Series A1 | ||
IP Rating IP68 | ||
Hazardous Area Certification NO | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals No | ||
- Land van herkomst:
- CH
Sealed metal cable gland IP68
A sealed metal cable gland with installation designed to be pull proof and dip water proof. Ideal for use with mobile devices with electrical connections.
Features and Benefits
The sleeve has extra mechanical protection and prevents cables from being cut;Adjustable anti-kink spout to fit the desired cable diameter
Standards
IP68
