- RS-stocknr.:
- 170-7229
- Fabrikantnummer:
- 02010002010
- Fabrikant:
- SES Sterling
Bekijk alle Cable Sleeves
68 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
418 op voorraad - levertijd is 3 à 5 werkdagen (UK-voorraad)
Prijs 1 Bag of 100
€ 4,27
(excl. BTW)
€ 5,17
(incl. BTW)
Bag(s) | Per zak | Per stuk* |
1 - 14 | € 4,27 | € 0,043 |
15 - 49 | € 4,06 | € 0,041 |
50 + | € 3,94 | € 0,039 |
*prijsindicatie |
- RS-stocknr.:
- 170-7229
- Fabrikantnummer:
- 02010002010
- Fabrikant:
- SES Sterling
Datasheets
Wetgeving en compliance
- Land van herkomst:
- FR
Productomschrijving

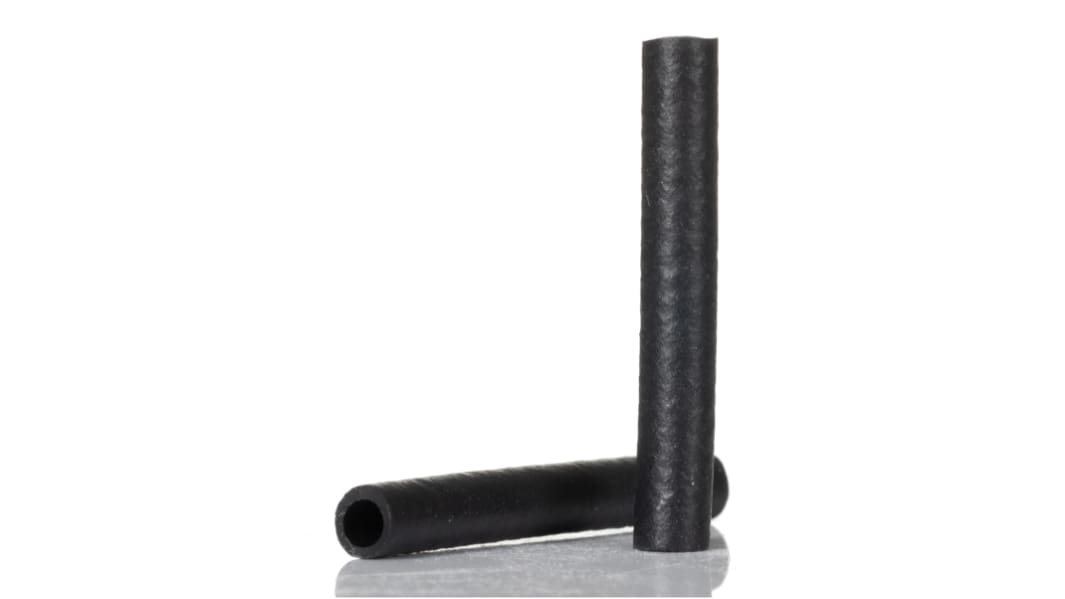

SES Sterling Expandable Cable Sleeve
The SES sterling black expandable cable sleeve is a protective cover with the diameter of 1.75mm and the length of 20mm. It is made of highly elastic polychloroprene rubber material. This sleeve has good mechanical properties along with resistance to ozone, aromatic fuels, moisture and oil.
Features and Benefits
Dielectric strength is 13kV
Tensile strength at break is >6.5MPa
Tear strength is >10 kN/m
Ultimate elongation of >500 %
Flame retardant
Maximum cable diameter is 3mm
Minimum cable diameter is 1.75mm
Operating temperature ranging between -30°C and 90°C
Wall thickness is 0.5mm
Tensile strength at break is >6.5MPa
Tear strength is >10 kN/m
Ultimate elongation of >500 %
Flame retardant
Maximum cable diameter is 3mm
Minimum cable diameter is 1.75mm
Operating temperature ranging between -30°C and 90°C
Wall thickness is 0.5mm
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
UL94 V-0
BS EN 61340-5-1:2007
UL94 V-0
Specificaties
Kenmerk | Waarde |
---|---|
Sleeve Diameter | 1.75mm |
Colour | Black |
Material | Neoprene |
Sleeve Length | 20mm |
Braided | No |
Expandable | Yes |
Minimum Cable Diameter | 1.75mm |
Maximum Cable Diameter | 3.5mm |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +90°C |
Dielectric Strength | 13kV |
Wall Thickness | 0.5mm |
Series | Helavia |
