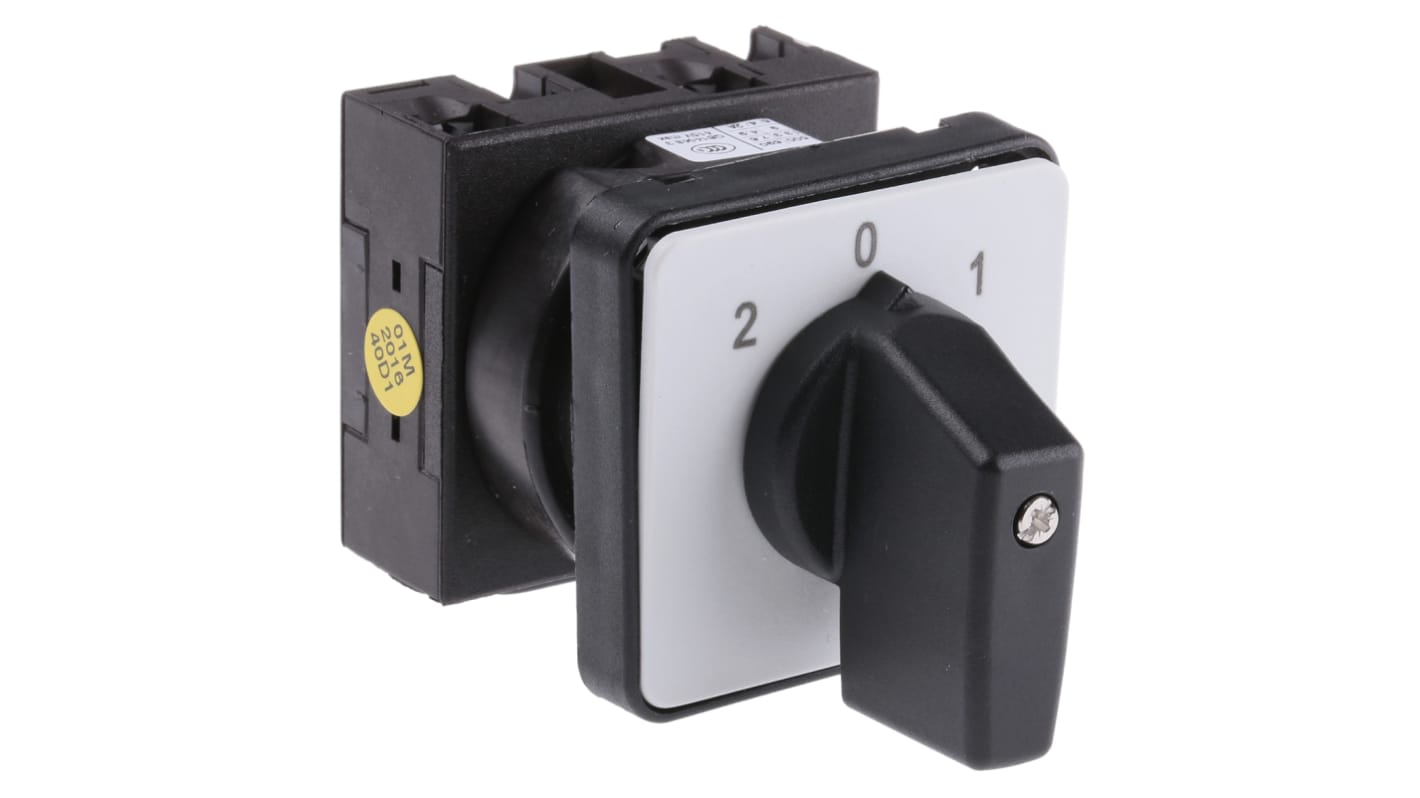

Eaton 3 Position 45 °, Knob Actuator 20 A

RS-stocknr.:: 332-183
Fabrikantnummer:: 78819006 T0-1-15421/E/EZ-P1(RS332-183)
Fabrikant:: Eaton

Eaton 3 Position 45 °, Knob Actuator 20 A

Bulkkorting beschikbaar

Subtotaal (1 eenheid)*

€ 29,24

(excl. BTW)

€ 35,38

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

Plus verzending 36 stuk(s) vanaf 04 mei 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 - 4	€ 29,24
5 - 11	€ 28,36
12 +	€ 27,42

*prijsindicatie

RS-stocknr.:: 332-183
Fabrikantnummer:: 78819006 T0-1-15421/E/EZ-P1(RS332-183)
Fabrikant:: Eaton

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Eaton
	Series	T0
	Product Type	Rotary Switch Cam Switch
	Electrical Phase	1
	Number of Positions	3
	Mount Type	Flush
	Terminal Type	Screw
	Number of Poles	1
	Angle of Throw	45 °
	IP Rating	IP65
	Contact Current	20A
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	50°C
	Actuator Type	Knob
	Contact Voltage	690V
	Standards/Approvals	IEC/EN 60947
	Width	48mm
	Hazardous Area Certification	IECEx
	Length	48mm
	Depth	76mm
	Mechanical Life	1000000Operations

	Alles selecteren
	Merk Eaton
	Series T0
	Product Type Rotary Switch Cam Switch
	Electrical Phase 1
	Number of Positions 3
	Mount Type Flush
	Terminal Type Screw
	Number of Poles 1
	Angle of Throw 45 °
	IP Rating IP65
	Contact Current 20A
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 50°C
	Actuator Type Knob
	Contact Voltage 690V
	Standards/Approvals IEC/EN 60947
	Width 48mm
	Hazardous Area Certification IECEx
	Length 48mm
	Depth 76mm
	Mechanical Life 1000000Operations

Eaton Cam Switch, 20A Maximum Current, 690V Maximum Voltage - 78819006 T0-1-15421/E/EZ-P1(RS332-183)

This cam switch is a robust electrical component designed for changeover applications in industrial settings. With a pole configuration of SP and a switch type of changeover cam switch, it offers three distinct positions with an angle of throw of 45°. Its compact dimensions of 90 x 75 x 48mm make it suitable for flush mounting within control panels or equipment enclosures.

Features & Benefits

• Designed for maximum current handling of 20A

• Operates at a maximum voltage rating of 690V AC

• Provides a normal state configuration of NO/NC for versatility

• Ensures IP65 protection against dust and water ingress

• Features a user-friendly knob actuator for ease of operation

• Allows for flexibility with a three-position setup for various applications

Applications

• Utilised in control circuits requiring reliable changeover capabilities

• Suitable for motor controls in industrial machinery

• Adapted for use in automated systems within manufacturing processes

• Deployed in environments demanding protection from dust and moisture

What are the operational limits regarding temperature for this switch?

It operates effectively between -25°C and +50°C in open conditions and up to +40°C when enclosed.

How does the degree of protection enhance safety?

The IP65 rating prevents dust and moisture, significantly increasing safety and performance in harsh environments.

What types of loads can it handle efficiently?

It accommodates AC-23A applications, managing motor loads up to 6.5kW based on voltage ratings provided.

How can the installation flexibility be maximised?

It is designed for a variety of mounting positions, compatible with flush mounting to integrate seamlessly into existing systems.

Note

Eaton formerly known as Moeller
