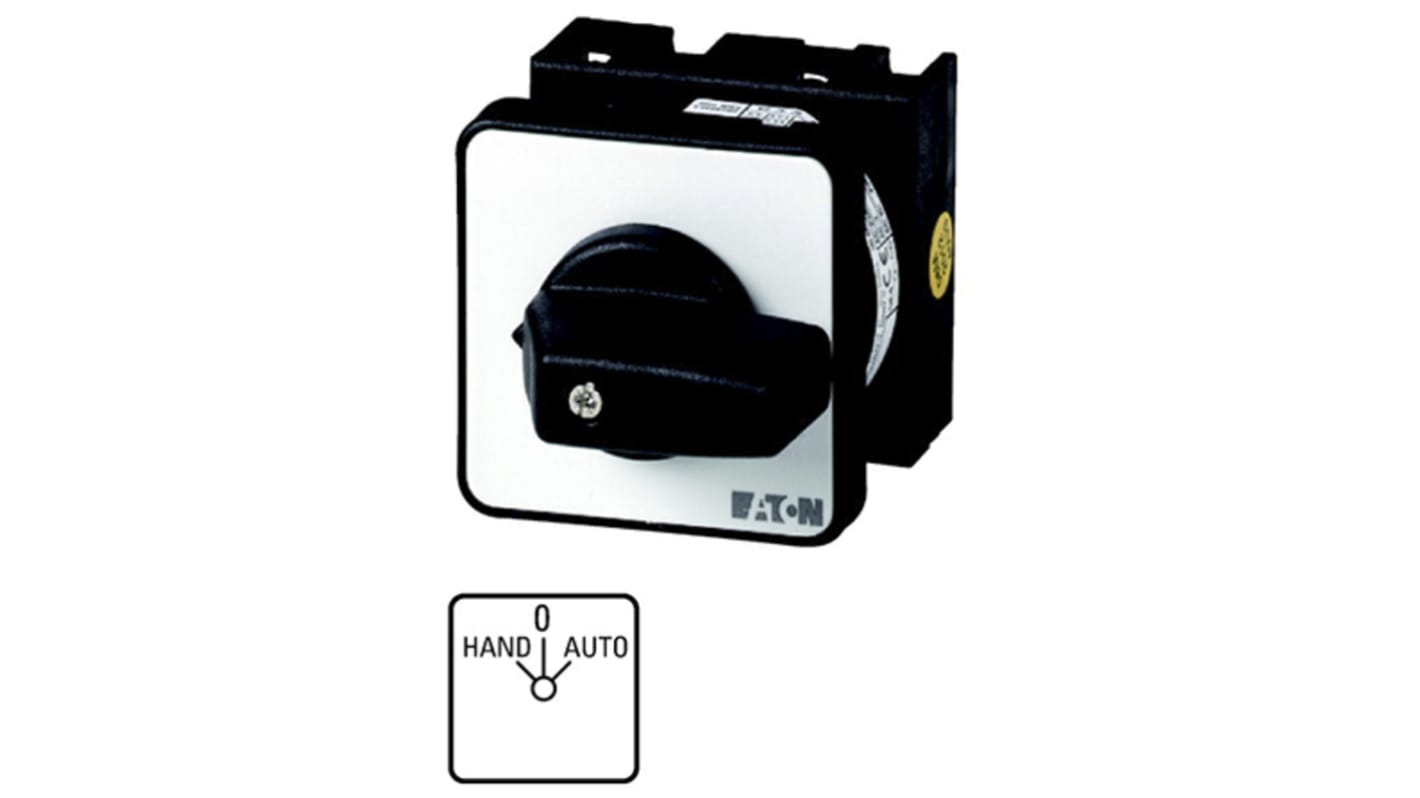

Eaton 3 Position 45 °, Toggle Actuator 20 A
- RS-stocknr.:
- 103-8417
- Fabrikantnummer:
- 022245 T0-1-15431/EZ
- Fabrikant:
- Eaton
Subtotaal (1 eenheid)*
€ 25,26
(excl. BTW)
€ 30,56
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 2 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 25,26 |
*prijsindicatie
- RS-stocknr.:
- 103-8417
- Fabrikantnummer:
- 022245 T0-1-15431/EZ
- Fabrikant:
- Eaton
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Eaton | |
| Product Type | Cam Switch | |
| Series | T0 | |
| Electrical Phase | 1, 3 | |
| Mount Type | Center | |
| Number of Positions | 3 | |
| Terminal Type | Screw | |
| Number of Poles | 1 | |
| Angle of Throw | 45 ° | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 20A | |
| Actuator Type | Toggle | |
| Maximum Operating Temperature | 50°C | |
| Contact Voltage | 690V ac | |
| Depth | 48mm | |
| Length | 48mm | |
| Width | 48mm | |
| Hazardous Area Certification | IECEx | |
| Standards/Approvals | IEC/EN 60947, CSA, IEC/EN 60947-3, IEC/EN 60204, CE marking, CSA-C22.2 No. 94, UL, VDE 0660, UL 508, CSA-C22.2 No. 14-05 | |
| Mechanical Life | 10000000Operations | |
| Alles selecteren | ||
|---|---|---|
Merk Eaton | ||
Product Type Cam Switch | ||
Series T0 | ||
Electrical Phase 1, 3 | ||
Mount Type Center | ||
Number of Positions 3 | ||
Terminal Type Screw | ||
Number of Poles 1 | ||
Angle of Throw 45 ° | ||
IP Rating IP65 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 20A | ||
Actuator Type Toggle | ||
Maximum Operating Temperature 50°C | ||
Contact Voltage 690V ac | ||
Depth 48mm | ||
Length 48mm | ||
Width 48mm | ||
Hazardous Area Certification IECEx | ||
Standards/Approvals IEC/EN 60947, CSA, IEC/EN 60947-3, IEC/EN 60204, CE marking, CSA-C22.2 No. 94, UL, VDE 0660, UL 508, CSA-C22.2 No. 14-05 | ||
Mechanical Life 10000000Operations | ||
- Land van herkomst:
- GB
Changeover (CO) Switches
Professional range of Eaton flush and centre-mounted changeover switches. All the changeover switches are IP65 rated and have an option of either 2, 4,6 or 8 auxiliary contacts. The control switches are available with either a 45, 60 or 90° switching angle.
IP65 rated
2, 4, 6 or 8 auxilliary contacts
Centre or Flush mounting available
45, 60 or 90° switching angle
Eaton
Note
Eaton formerly known as Moeller
