Fluke 378 FC Clamp Meter, 999.9 A dc 2500 A ac 1000 V dc 1000 V ac CAT III 1000 V, CAT IV 600 V Non-Contact Voltage

RS-stocknr.:: 220-4697
Fabrikantnummer:: FLUKE-378 FC/E
Fabrikant:: Fluke

Fluke 378 FC Clamp Meter, 999.9 A dc 2500 A ac 1000 V dc 1000 V ac CAT III 1000 V, CAT IV 600 V Non-Contact Voltage

Afbeelding representeert productcategorie

Subtotaal (1 eenheid)*

€ 1.004,00

(excl. BTW)

€ 1.214,84

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Beperkte voorraad

12 resterend, klaar voor verzending
Plus verzending 5 stuk(s) vanaf 14 mei 2026
Plus verzending 8 stuk(s) vanaf 28 mei 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 1.004,00

*prijsindicatie

RS-stocknr.:: 220-4697
Fabrikantnummer:: FLUKE-378 FC/E
Fabrikant:: Fluke

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Fluke
	Product Type	Clamp Meter
	Resistance Resolution	10Ω
	Maximum DC Current Measurement	999.9A dc
	Maximum AC Voltage Measurement	1000V ac
	Maximum DC Voltage Measurement	1000V dc
	Maximum Resistance Measurement	60kΩ
	Model Number	378 FC
	Clamp Meter Type	AC/DC Clamp Meter
	DC Voltage Accuracy	1 % rdg + 10 Digits
	DC Voltage Resolution	0.1 (≤600.0 V) V;1 (≤1000 V) V
	DC Current Accuracy	± 2 % rdg + 10 Digits
	Resistance Measurement Accuracy	±1 % rdg + 5 Digits
	AC Current Resolution	0.1A
	Minimum Operating Temperature	-10°C
	AC Voltage Accuracy	±1 % rdg + 5 Digits
	AC Voltage Resolution	1V ac
	Maximum Jaw Opening	34mm
	AC Current Accuracy	2 %
	DC Current Resolution	0.1A
	Maximum Operating Temperature	50°C
	Length	274mm
	Height	47mm
	Width	86mm
	Standards/Approvals	IEC 610102032, IEC 6155713, IEC 610102033, IEC 610101
	Weight	463g
	True RMS	Yes
	Maximum AC Current Measurement	2500A ac
	Safety Category Voltage	1000, 600V
	Battery Life	200h
	Battery Type	AA IEC LR06
	Calibrated	UKAS
	Maximum Temperature Measurement	50°C
	Non-Contact Voltage Detector	Yes
	Power Source	Battery
	Safety Category Level	CAT III 1000 V, CAT IV 600 V

	Alles selecteren
	Merk Fluke
	Product Type Clamp Meter
	Resistance Resolution 10Ω
	Maximum DC Current Measurement 999.9A dc
	Maximum AC Voltage Measurement 1000V ac
	Maximum DC Voltage Measurement 1000V dc
	Maximum Resistance Measurement 60kΩ
	Model Number 378 FC
	Clamp Meter Type AC/DC Clamp Meter
	DC Voltage Accuracy 1 % rdg + 10 Digits
	DC Voltage Resolution 0.1 (≤600.0 V) V;1 (≤1000 V) V
	DC Current Accuracy ± 2 % rdg + 10 Digits
	Resistance Measurement Accuracy ±1 % rdg + 5 Digits
	AC Current Resolution 0.1A
	Minimum Operating Temperature -10°C
	AC Voltage Accuracy ±1 % rdg + 5 Digits
	AC Voltage Resolution 1V ac
	Maximum Jaw Opening 34mm
	AC Current Accuracy 2 %
	DC Current Resolution 0.1A
	Maximum Operating Temperature 50°C
	Length 274mm
	Height 47mm
	Width 86mm
	Standards/Approvals IEC 610102032, IEC 6155713, IEC 610102033, IEC 610101
	Weight 463g
	True RMS Yes
	Maximum AC Current Measurement 2500A ac
	Safety Category Voltage 1000, 600V
	Battery Life 200h
	Battery Type AA IEC LR06
	Calibrated UKAS
	Maximum Temperature Measurement 50°C
	Non-Contact Voltage Detector Yes
	Power Source Battery
	Safety Category Level CAT III 1000 V, CAT IV 600 V

Datasheet - FLUKE-378 FC/E

Fluke Clamp Meter, 1000V Maximum AC Voltage Measurement, 999.9A Maximum DC Current Measurement - FLUKE-378 FC/E

This clamp metre is a handheld instrument for non-contact voltage detection and true-rms AC/DC current and voltage measurement in industrial and field environments. It supports single-phase and three-phase checks, records readings wirelessly to a smartphone, and accepts a flexible current probe for large conductor access.

Features & Benefits

• True-rms measurement enhances accuracy for non-sinusoidal signals
• Dual readout enables simultaneous display of two parameters
• AC jaw measures up to 999.9 A for routine circuit checks
• iFlex probe extends AC range to 2500 A for large conductors
• Non-contact FieldSense provides live voltage without touching conductors
• Safety ratings CAT III 1000V and CAT IV 600V for industrial installations

Applications

• Suitable for diagnosing incoming supply versus equipment faults using PQ indication
• Ideal for commissioning and balancing three-phase systems with phase-to-phase readings
• Used for high-current measurements on busbars and large cables with flexible probe
• Can be used for preventative maintenance logging via smartphone connectivity
• Used for non-intrusive voltage checks on distribution panels

How long will it operate between battery changes?

It runs on two AA LR06 batteries and provides approximately 200 hours of typical use.

What maximum voltages and currents can it measure?

It measures up to 1000V on voltage inputs and up to 999.9 A via the jaw or 2500 A with the flexible probe.

How does the tool assist with intermittent fault diagnosis?

Wireless logging sends measurements to a smartphone for trend analysis and remote review, enabling capture of transient events.

What resistance and capacitance ranges are supported?

Resistance measurement extends to 60 kΩ with resolutions down to 0.1 Ω and capacitance to 1000 μF with 0.1 μF resolution on small values.

What environmental conditions limit operation?

It operates between −10 °C and 50 °C with specified humidity limits and is rated IP30 with the jaw closed.

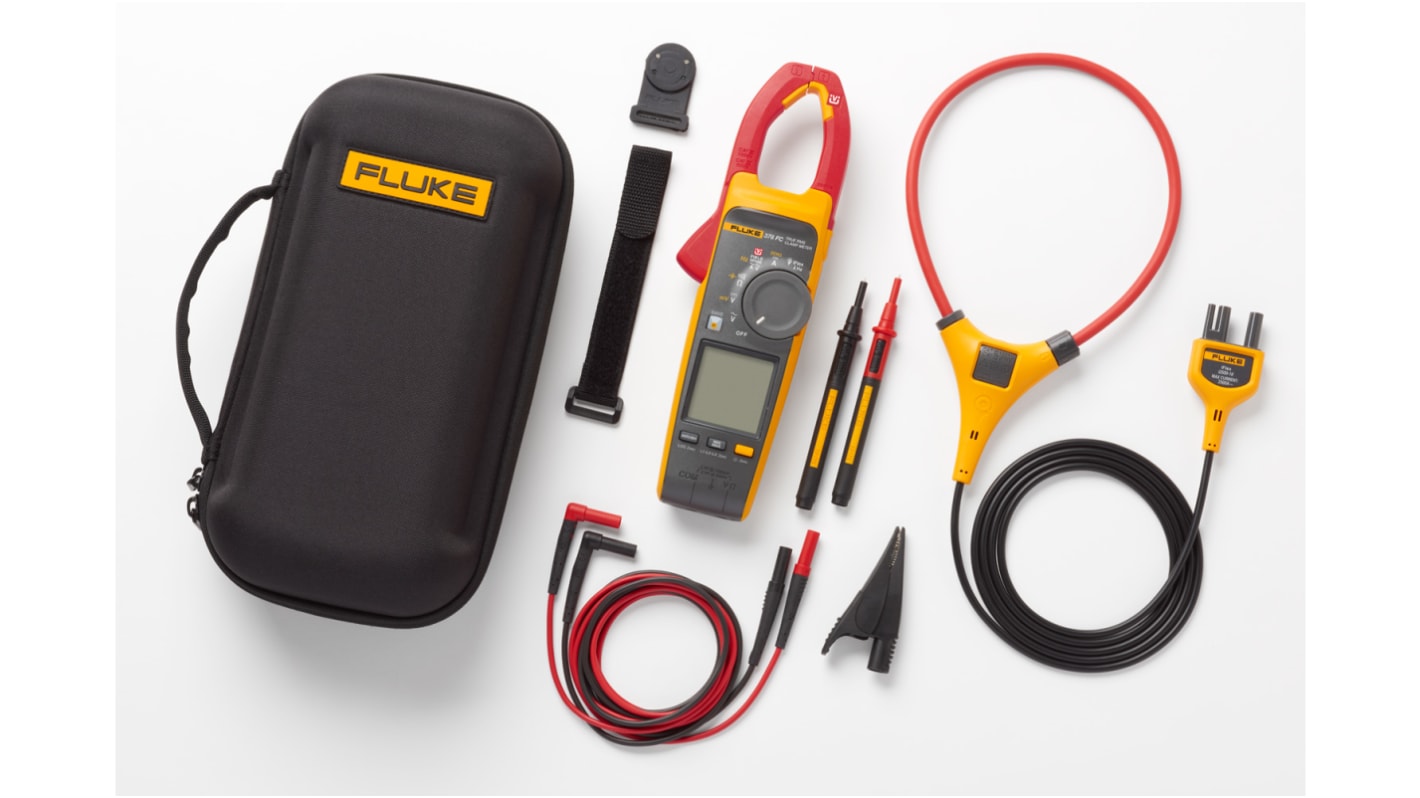

Supplied with

• 378 FC Non-Contact Voltage True-rms Clamp Meter
• iFlex flexible current probe (18 inches; 48 cm)
• TL224 silicone insulated test leads
• TP175 adjustable length test probes
• AC285 grounding clip (black, quantity one)
• TPAK magnetic hanging kit, with 9 inch (23 cm) hanging strap
• Carrying case
• Quick reference guide
