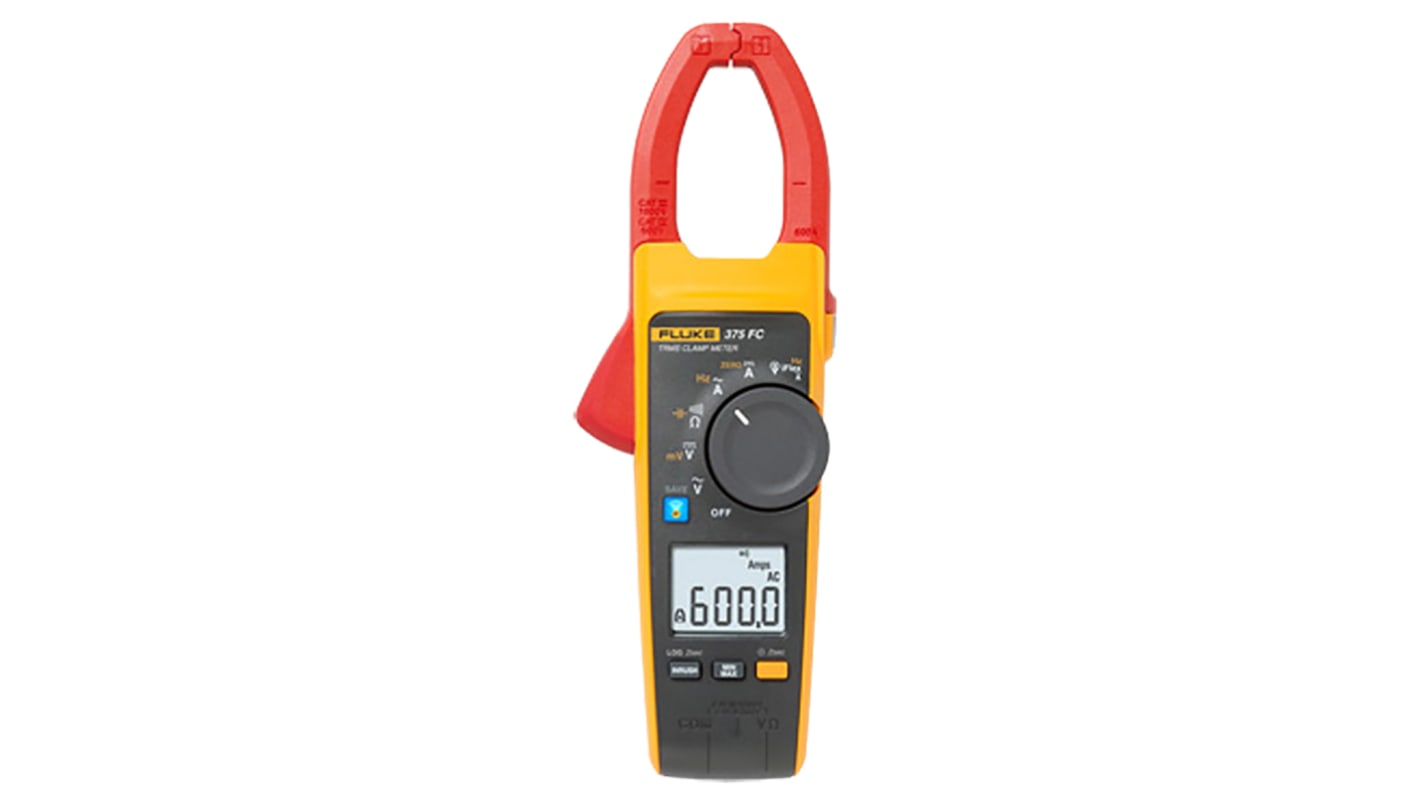

Fluke 375 FC Clamp Meter Bluetooth, 600A dc, Max Current 600A ac CAT III 1000V With UKAS Calibration

RS-stocknr.:: 905-6960
Fabrikantnummer:: FLUKE-375 FC
Fabrikant:: Fluke

Fluke 375 FC Clamp Meter Bluetooth, 600A dc, Max Current 600A ac CAT III 1000V With UKAS Calibration

Subtotaal (1 eenheid)*

€ 789,00

(excl. BTW)

€ 954,69

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 75,00

Op voorraad

11 stuk(s) klaar voor verzending

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 789,00

*prijsindicatie

RS-stocknr.:: 905-6960
Fabrikantnummer:: FLUKE-375 FC
Fabrikant:: Fluke

Fluke 370 FC Series True RMS Wireless AC/DC Clamp Meters

Fluke 370 FC clamp meters are CAT IV 600 V, CAT III 1000 V safety-rated instruments offering advanced troubleshooting performance to capture a wide range of measurements with a single tool. The 370 FC clamp meters log measurements to pinpoint intermittent faults precisely, without the need for the technician to be present. The measurements can then be wirelessly transmitted to the Fluke Connect app on smartphones or tablets and automatically uploaded to the cloud. This improves safety by keeping technicians outside the arc flash zone and away from dangerous moving machinery.

Fluke 370 FC models are:
374 FC ( 905-5911 ) 600 A, 6000 Ω
375 FC ( 905-5917 ) 600 A, 500 mV, 60.00 kΩ, 5 - 500.0 Hz
376 FC ( 905-5914 ) 999.9 A, 500 mV, 60.00 kΩ, 5 - 500.0 Hz.

Features & Benefits

• Proprietary in-rush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
• True RMS voltage and current for accurate measurements on non-linear signals
• Expanded measurement range to 2500 A ac with the iFlex flexible current probes, which provide access to large conductors in tight spaces
• Integrated variable frequency drive low pass filter for accurate motor drive measurements (376 FC and 375 FC models only)
• 500 mV dc measurement range to interface with other accessories (376 FC and 375 FC models only)
• Connect your meter to your smartphone with Fluke Connect Measurements
• Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls
• Compatible with TPAK magnetic hanging strap

Supplied with

TL75 test leads, AA alkaline batteries (x2), coated instruction card, safety information sheet, soft carrying case, 18-inch iFlex® flexible current probe (376 FC only), TPAK magnetic hanging strap (376 FC only)

FLUKE 375 FC True RMS AC/DC Clamp Meter - 370 FC Series

Pinpoint intermittent faults when they happen for efficient troubleshooting with the versatile 375 FC clamp meter from FLUKE. You can use it to measure voltage up to 1000V AC/DC and current up to 600A. Just clamp it in place and leave it to monitor your set up without the need for a technician to be present. Proprietary in-rush measurement technology filters out noise, allowing you to see the motor starting current exactly as the circuit protection sees it. Thanks to Bluetooth connectivity, it's a cinch to upload your results to the cloud using the FLUKE app.

Fluke 375 FC Features & Benefits

• True-RMS response means you can accurately measure voltage and current, even on non-linear signals
• Supplied with a soft carrying case, so it stays protected while in transit
• Powered by 2 x AA batteries for convenient operation
• Light weight of 388g makes it easy to take with you into the field

Applications

• Industrial control systems
• HVAC servicing
• Commercial buildings

Can I use the Fluke375 FC clamp meter to test VFDs?

Yes. Thanks to the meter's integrated low-pass filter, it will attenuate unwanted high-frequency signals to give you accurate motor drive measurements, allowing you to reliably test your VFD equipment.

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Fluke
	Absolute Maximum AC Current Measurement	600A ac
	Absolute Maximum DC Current Measurement	600A dc
	Absolute Maximum AC Voltage Measurement	600V ac
	Absolute Maximum DC Voltage Measurement	600V dc
	Absolute Maximum Resistance Measurement	60kΩ
	Connectivity	Bluetooth
	Model Number	375 FC
	Calibrated	UKAS
	AC Current Measurement Resolution	100mA
	DC Current Measurement Resolution	100mA
	Best DC Current Accuracy	2% ±5 Digits
	Clamp Meter Type	AC/DC Clamp Meter
	Best AC Current Accuracy	2% ±5 Digits (Jaw), 3% ±5 (Probe)
	Best AC Voltage Accuracy	1.5% ±5 Digits
	Functions Measured	AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
	True RMS	Yes
	Best DC Voltage Accuracy	1% ±5 Digits
	Jaw Capacity Busbars	34mm
	Battery Type	2 AA, IEC LR6, NEDA 15A
	Safety Category	CAT III 1000 V, CAT IV 600V
	Best Resistance Measurement Accuracy	1% ±5 Digits
	Maximum Operating Temperature	+50°C
	Display Type	Backlit LCD
	Safety Category Level	CAT III, CAT IV
	Weight	388g
	AC Voltage Measurement Range	1000 V
	AC Current Measurement Range	600 A
	AC Voltage Measurement Resolution	100mV
	Height	43mm
	Safety Category Voltage	600 V, 1000V
	Minimum Operating Temperature	-10°C
	Power Source	Battery
	DC Voltage Measurement Resolution	100mV
	Dimensions	246 x 83 x 43mm
	DC Current Measurement Range	600 A
	Resistance Measurement Resolution	10Ω
	Length	246mm
	Width	83mm

	Alles selecteren
	Merk Fluke
	Absolute Maximum AC Current Measurement 600A ac
	Absolute Maximum DC Current Measurement 600A dc
	Absolute Maximum AC Voltage Measurement 600V ac
	Absolute Maximum DC Voltage Measurement 600V dc
	Absolute Maximum Resistance Measurement 60kΩ
	Connectivity Bluetooth
	Model Number 375 FC
	Calibrated UKAS
	AC Current Measurement Resolution 100mA
	DC Current Measurement Resolution 100mA
	Best DC Current Accuracy 2% ±5 Digits
	Clamp Meter Type AC/DC Clamp Meter
	Best AC Current Accuracy 2% ±5 Digits (Jaw), 3% ±5 (Probe)
	Best AC Voltage Accuracy 1.5% ±5 Digits
	Functions Measured AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
	True RMS Yes
	Best DC Voltage Accuracy 1% ±5 Digits
	Jaw Capacity Busbars 34mm
	Battery Type 2 AA, IEC LR6, NEDA 15A
	Safety Category CAT III 1000 V, CAT IV 600V
	Best Resistance Measurement Accuracy 1% ±5 Digits
	Maximum Operating Temperature +50°C
	Display Type Backlit LCD
	Safety Category Level CAT III, CAT IV
	Weight 388g
	AC Voltage Measurement Range 1000 V
	AC Current Measurement Range 600 A
	AC Voltage Measurement Resolution 100mV
	Height 43mm
	Safety Category Voltage 600 V, 1000V
	Minimum Operating Temperature -10°C
	Power Source Battery
	DC Voltage Measurement Resolution 100mV
	Dimensions 246 x 83 x 43mm
	DC Current Measurement Range 600 A
	Resistance Measurement Resolution 10Ω
	Length 246mm
	Width 83mm
