Vishay VLM.334 Yellow, Green, Pure Green CoB LED
- RS-stocknr.:
- 244-4847
- Fabrikantnummer:
- VLMPG33N1P2-GS08
- Fabrikant:
- Vishay
Momenteel niet beschikbaar
We weten niet of dit artikel weer voorradig zal zijn, het wordt door de fabrikant stopgezet.
- RS-stocknr.:
- 244-4847
- Fabrikantnummer:
- VLMPG33N1P2-GS08
- Fabrikant:
- Vishay
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Vishay | |
| Product Type | CoB LED | |
| Luminous Intensity | 71mcd | |
| Maximum Forward Current | 50mA | |
| Packaging | SMD | |
| Series | VLM.334 | |
| Viewing Angle | ±60° | |
| LED Colour | Yellow, Green, Pure Green | |
| Forward Voltage | 2.5V | |
| Standards/Approvals | JEDEC level 2a, CECC 00802, J-STD-020 | |
| Automotive Standard | AEC-Q101 | |
| Alles selecteren | ||
|---|---|---|
Merk Vishay | ||
Product Type CoB LED | ||
Luminous Intensity 71mcd | ||
Maximum Forward Current 50mA | ||
Packaging SMD | ||
Series VLM.334 | ||
Viewing Angle ±60° | ||
LED Colour Yellow, Green, Pure Green | ||
Forward Voltage 2.5V | ||
Standards/Approvals JEDEC level 2a, CECC 00802, J-STD-020 | ||
Automotive Standard AEC-Q101 | ||

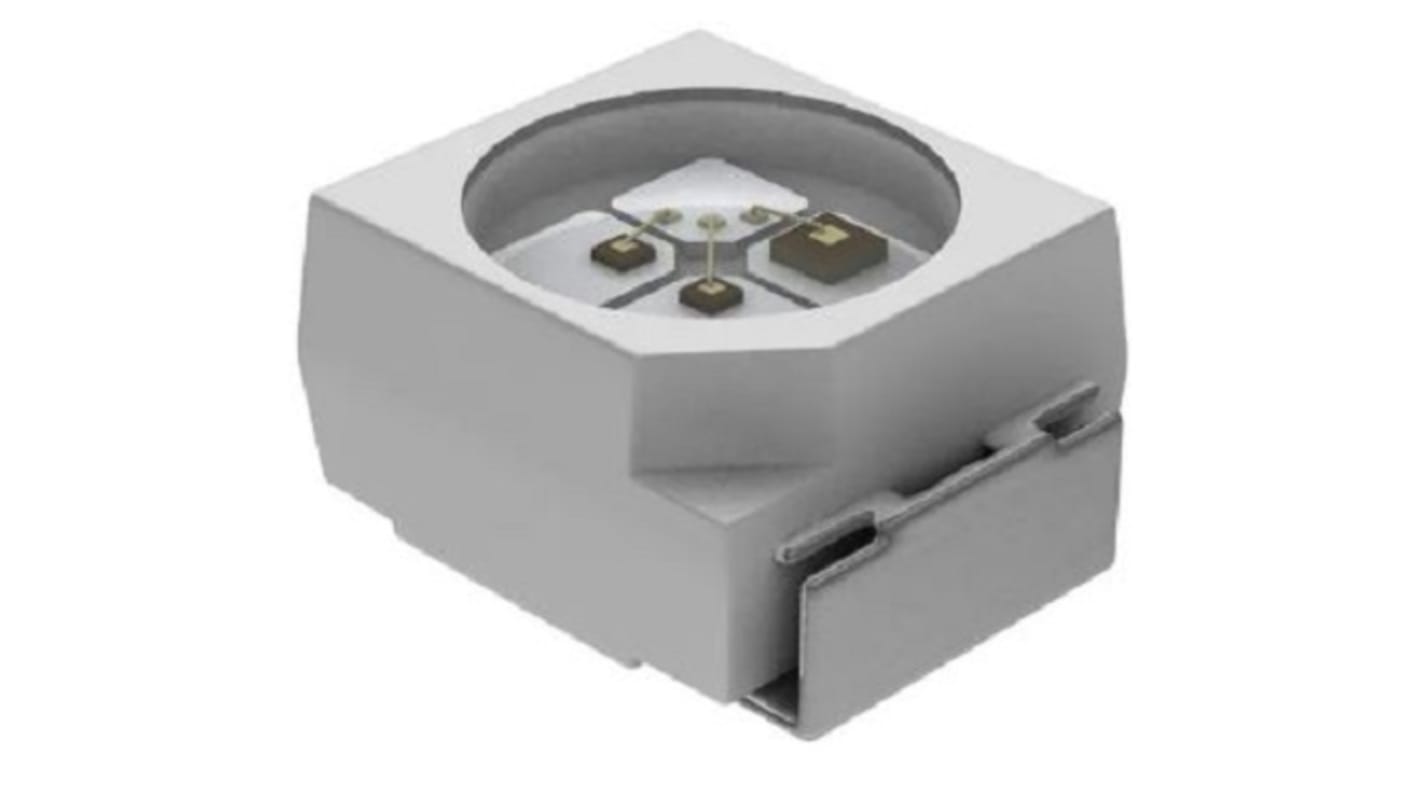

The Vishay SMD LED consists of a lead frame which is embedded in a white thermoplast. The reflector inside this package is filled up with clear epoxy.
SMD LED with exceptional brightness
Luminous intensity categorized
Low profile package
Low power consumption
