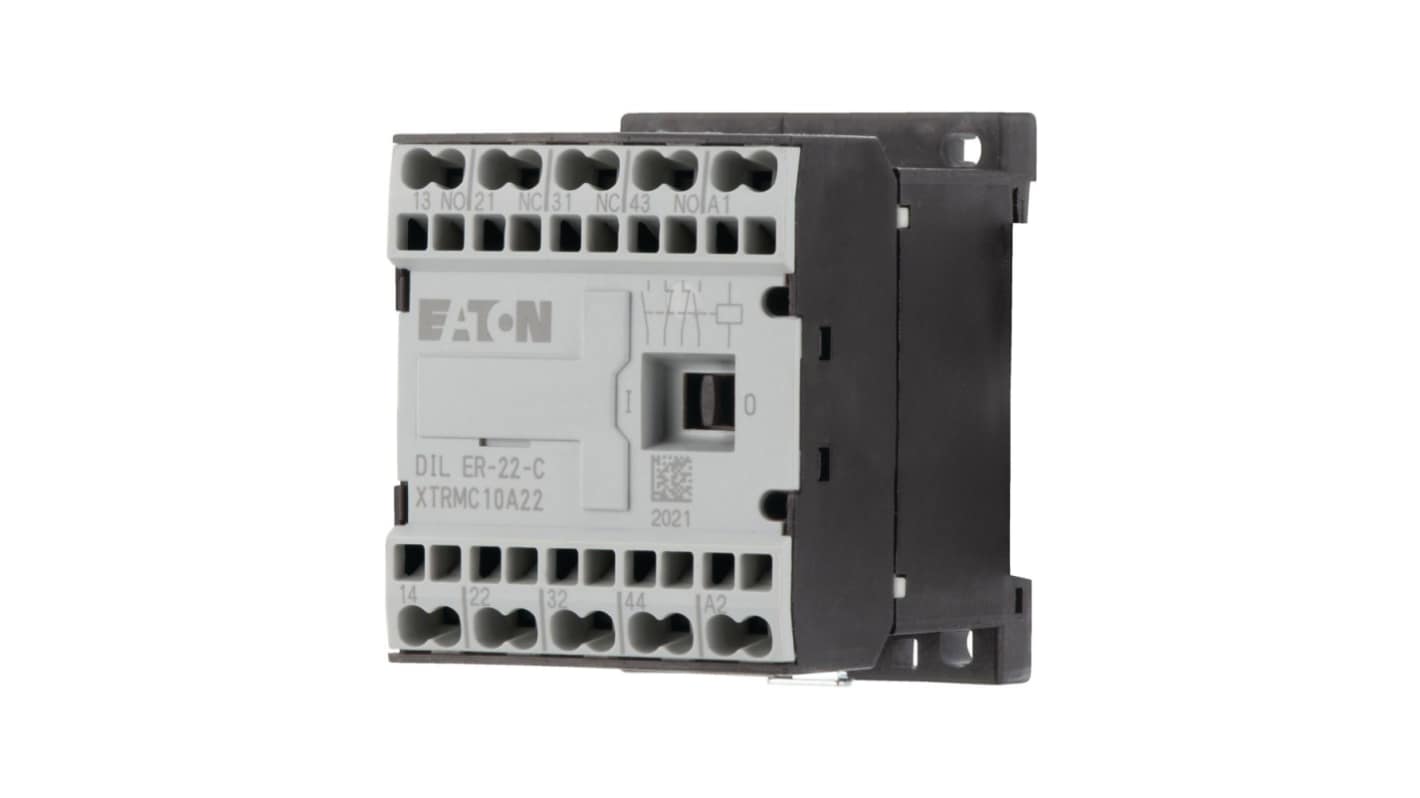

Eaton DILER Contactor Relay, 240V Coil, 4-Pole, 6 A, 25 VA 0.85V ac, 1.1 V ac, 2 NO/2 NC, 600V ac

RS-stocknr.:: 254-224
Fabrikantnummer:: 230176 DILER-22-C(230V50HZ,240V60HZ)
Fabrikant:: Eaton

Eaton DILER Contactor Relay, 240V Coil, 4-Pole, 6 A, 25 VA 0.85V ac, 1.1 V ac, 2 NO/2 NC, 600V ac

Subtotaal (1 eenheid)*

€ 47,88

(excl. BTW)

€ 57,93

(incl. BTW)

Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw

Aantal stuks	Per stuk
1 +	€ 47,88

*prijsindicatie

RS-stocknr.:: 254-224
Fabrikantnummer:: 230176 DILER-22-C(230V50HZ,240V60HZ)
Fabrikant:: Eaton

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Eaton
	Product Type	Contactor Relay
	Coil Voltage	240V
	Number of Poles	4
	Contact Voltage	600V ac
	Contact Current	6A
	Series	DILER
	Power Rating	25VA
	Mount Type	DIN Rail
	Normal State Configuration	2 NO/2 NC
	Terminal Type	Spring Loaded
	Minimum Operating Temperature	-25°C
	Contactor Application	Contactor Relay
	Control Circuit Voltage Uc	0.85V ac, 1.1V ac
	Operational Current Ie	10A
	Maximum Operating Temperature	50°C
	Standards/Approvals	CE EN 60947-5-1, CSA-C22.2 No. 14-05, CSA CSA Class No.: 3211-03, CSA File No.: 012528, IEC/EN 60947, IEC/EN 60947-4-1, UL 508, UL File No.: E29184, UL UL Category Control No.: NKCR, VDE 0660
	Depth	52mm
	Length	52mm
	Width	45mm

	Alles selecteren
	Merk Eaton
	Product Type Contactor Relay
	Coil Voltage 240V
	Number of Poles 4
	Contact Voltage 600V ac
	Contact Current 6A
	Series DILER
	Power Rating 25VA
	Mount Type DIN Rail
	Normal State Configuration 2 NO/2 NC
	Terminal Type Spring Loaded
	Minimum Operating Temperature -25°C
	Contactor Application Contactor Relay
	Control Circuit Voltage Uc 0.85V ac, 1.1V ac
	Operational Current Ie 10A
	Maximum Operating Temperature 50°C
	Standards/Approvals CE EN 60947-5-1, CSA-C22.2 No. 14-05, CSA CSA Class No.: 3211-03, CSA File No.: 012528, IEC/EN 60947, IEC/EN 60947-4-1, UL 508, UL File No.: E29184, UL UL Category Control No.: NKCR, VDE 0660
	Depth 52mm
	Length 52mm
	Width 45mm

Datasheet - 230176 DILER-22-C(230V50HZ,240V60HZ)

Vrijgesteld

Land van herkomst:: DE

The Eaton Moeller series DILER Contactor relay offers exceptional performance in a compact design, engineered specifically for reliable operation in industrial applications. With a broad operational capability spanning from 230 V at 50 Hz to 240 V at 60 Hz, this device is perfect for a variety of control tasks, ensuring increased efficiency and safety in your electrical systems. The contactor relay features a robust construction that includes two normally open and two normally closed contacts, making it adaptable to diverse configurations. Its seamless integration with DIN-rail and screw mounting options enhances installation versatility, whilst features like mechanical lifespan of up to ten million operations underscore its durability. The system is designed to handle various environmental conditions, ensuring dependable functionality even in challenging situations.

Positive operating contacts ensure enhanced reliability and safety

Finger and back-of-hand proof protection promotes user security

Adaptable mounting methods suit various installation environments

Designed for high operational frequencies, making it ideal for dynamic applications

Integrated with interlocked opposing contacts for improved functionality

Temperature range capable of withstanding extreme conditions enhances versatility

Efficient shock resistance conforms to international standards for peace of mind

Low power consumption during sealing reduces operational costs

Compliance with multiple certifications ensures global usability

Eaton DILER Contactor Relay, 240V Coil, 4-Pole, 6 A, 25 VA 0.85V ac, 1.1 V ac, 2 NO/2 NC, 600V ac
