Eaton Moeller Contactor, 240V Coil, 18 A, 71 VA, 1 NO/1 NC, 690V
- RS-stocknr.:
- 257-800
- Fabrikantnummer:
- 293988 DILK12-11(230V50HZ,240V60HZ)
- Fabrikant:
- Eaton
Subtotaal (1 eenheid)*
€ 105,30
(excl. BTW)
€ 127,41
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 12 oktober 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 105,30 |
*prijsindicatie
- RS-stocknr.:
- 257-800
- Fabrikantnummer:
- 293988 DILK12-11(230V50HZ,240V60HZ)
- Fabrikant:
- Eaton
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Eaton | |
| Coil Voltage | 240V | |
| Product Type | Contactor | |
| Contact Voltage | 690V | |
| Contact Current | 18A | |
| Series | Moeller | |
| Power Rating | 71VA | |
| Normal State Configuration | 1 NO/1 NC | |
| Number of Auxiliary Contacts | 1 | |
| Terminal Type | Screw | |
| Contactor Application | Power Factor Correction | |
| Operational Current Ie | 18A | |
| Minimum Operating Temperature | -31.7°C | |
| Maximum Operating Temperature | 15.5°C | |
| Width | 45mm | |
| Standards/Approvals | IEC/EN 60947-4-1, UL Category Control No.: NLDX, UL File No.: E29096, UL UL 60947-4-1, CSA CSA Class No.: 3211-04, CSA File No.: 012528, CE CSA-C22.2 No. 60947-4-1-14, IEC/EN 60947 | |
| Depth | 138mm | |
| Length | 135mm | |
| Alles selecteren | ||
|---|---|---|
Merk Eaton | ||
Coil Voltage 240V | ||
Product Type Contactor | ||
Contact Voltage 690V | ||
Contact Current 18A | ||
Series Moeller | ||
Power Rating 71VA | ||
Normal State Configuration 1 NO/1 NC | ||
Number of Auxiliary Contacts 1 | ||
Terminal Type Screw | ||
Contactor Application Power Factor Correction | ||
Operational Current Ie 18A | ||
Minimum Operating Temperature -31.7°C | ||
Maximum Operating Temperature 15.5°C | ||
Width 45mm | ||
Standards/Approvals IEC/EN 60947-4-1, UL Category Control No.: NLDX, UL File No.: E29096, UL UL 60947-4-1, CSA CSA Class No.: 3211-04, CSA File No.: 012528, CE CSA-C22.2 No. 60947-4-1-14, IEC/EN 60947 | ||
Depth 138mm | ||
Length 135mm | ||
- Land van herkomst:
- RO

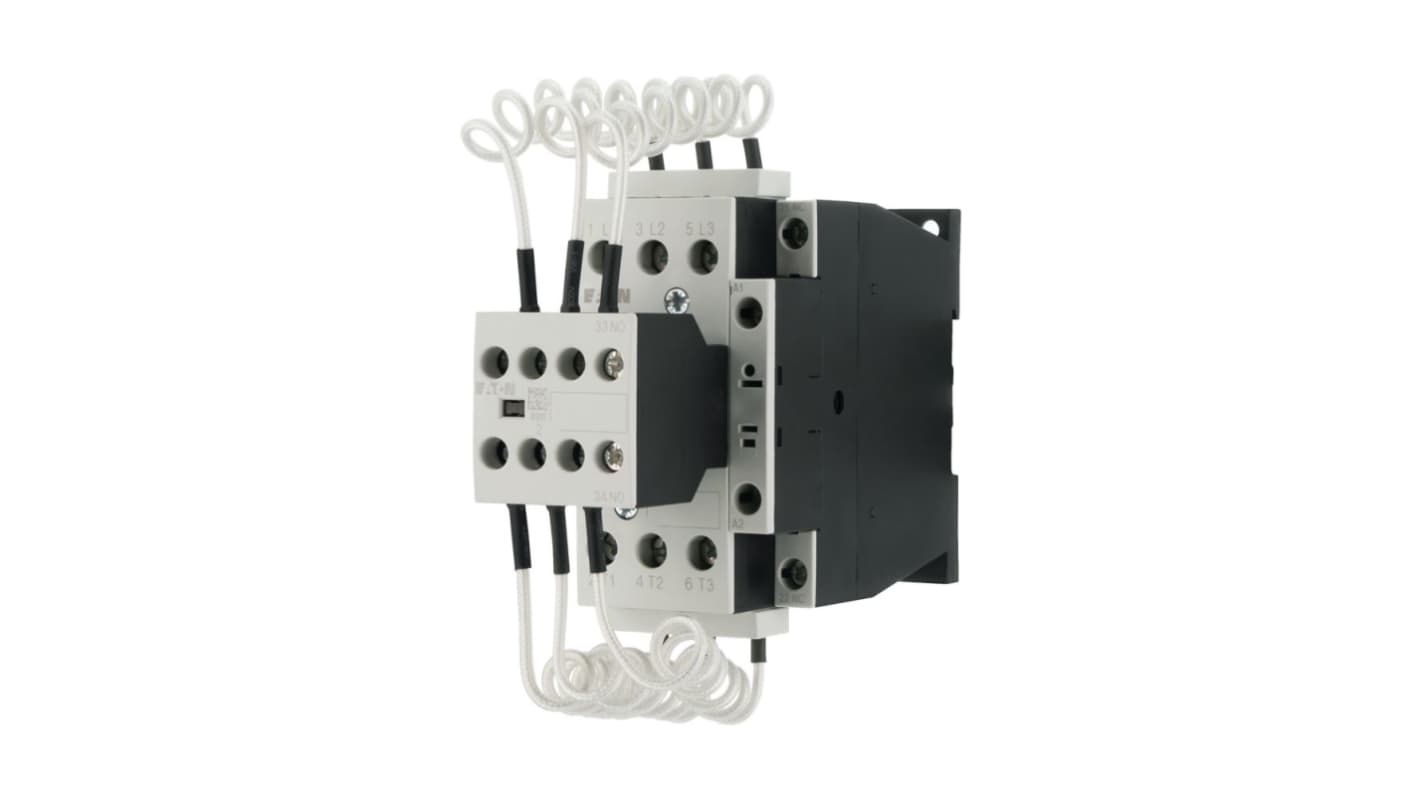

The Eaton Contactor is designed for efficient capacitor handling with integrated series resistors, making it an ideal choice for power factor correction applications. With a robust performance rating of 12.5 kVAr and compatibility with both 230 V at 50 Hz and 240 V at 60 Hz, it ensures reliable operation across various electrical environments. Engineered to manage high transient peaks, it employs early-make auxiliary contacts alongside fitted wire resistors, significantly reducing inrush current. With a lifespan of up to 150,000 operations and protective features that guard against accidental contact, this device exemplifies both safety and durability.
Compact dimensions allow for effective space utilisation in control panels
Supports both AC and DC voltage types for versatile applications
Achieves high operational reliability with a long lifespan rating
Constructed for easy connectivity via robust screw terminals
Highly resistant to electromagnetic interference promoting device protection
Complies with various international standards for safety and performance
