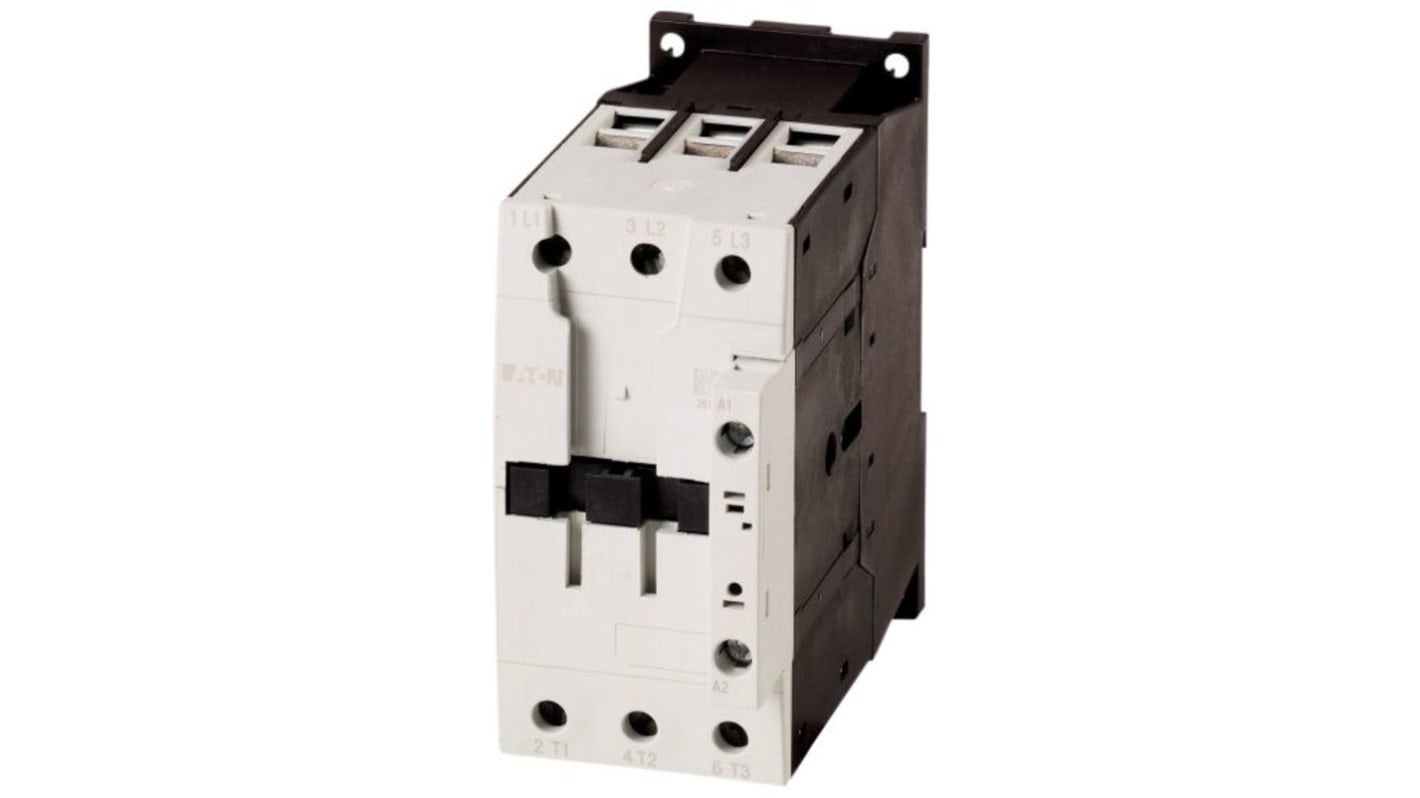

Eaton DILM40 Contactor, 230V ac Coil, 3-Pole, 40 A, 18.5 kW 0.8V, 1.1 V, 3 NO, 400V
- RS-stocknr.:
- 285-7344
- Artikelnummer Distrelec:
- 301-29-518
- Fabrikantnummer:
- DILM40(230V50/60HZ)
- Fabrikant:
- Eaton
Informatie over voorraden is momenteel niet toegankelijk
Alternatief
Dit product is momenteel niet beschikbaar. Hierbij onze aanbeveling voor een alternatief product.
Per stuk
€ 34,70
(excl. BTW)
€ 41,99
(incl. BTW)
- RS-stocknr.:
- 285-7344
- Artikelnummer Distrelec:
- 301-29-518
- Fabrikantnummer:
- DILM40(230V50/60HZ)
- Fabrikant:
- Eaton
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Eaton | |
| Product Type | Contactor | |
| Coil Voltage | 230V ac | |
| Number of Poles | 3 | |
| Contact Voltage | 400V | |
| Contact Current | 40A | |
| Series | DILM40 | |
| Power Rating | 18.5kW | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 3 NO | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -20°C | |
| Contactor Application | Contactor | |
| Operational Current Ie | 60A | |
| Control Circuit Voltage Uc | 0.8, 1.1V | |
| Maximum Operating Temperature | 60°C | |
| Depth | 147mm | |
| Width | 77mm | |
| Length | 115mm | |
| Standards/Approvals | CSA, IEC/EN 60947, VDE 0660, UL | |
| Pole and Throw Configuration | 3P | |
| Alles selecteren | ||
|---|---|---|
Merk Eaton | ||
Product Type Contactor | ||
Coil Voltage 230V ac | ||
Number of Poles 3 | ||
Contact Voltage 400V | ||
Contact Current 40A | ||
Series DILM40 | ||
Power Rating 18.5kW | ||
Mount Type DIN Rail | ||
Normal State Configuration 3 NO | ||
Terminal Type Screw | ||
Minimum Operating Temperature -20°C | ||
Contactor Application Contactor | ||
Operational Current Ie 60A | ||
Control Circuit Voltage Uc 0.8, 1.1V | ||
Maximum Operating Temperature 60°C | ||
Depth 147mm | ||
Width 77mm | ||
Length 115mm | ||
Standards/Approvals CSA, IEC/EN 60947, VDE 0660, UL | ||
Pole and Throw Configuration 3P | ||
- Land van herkomst:
- EE
The contactor designed for 3-phase motors with a power rating of 18.5 kW at 400V AC3. It is suitable for various applications such as contactors for motors up to 170 A, resistance furnaces, starting and stopping normal AC induction motors, and plugging, reversing, and inching operations. This contactor is also compatible with motors with efficiency class IE3 and can be easily connected using screw terminals. With a rated operational current of 40 A at 400 V AC-3, it provides reliable and efficient performance. Its compact design and high-quality construction make it a durable choice for industrial applications.
Suitable for resistance furnaces and normal AC induction motors
Can be used for plugging, reversing, and inching operations
Compatible with motors with efficiency class IE3
Easy connection with screw terminals
Compact design for space-saving installation
High-quality construction for durability and reliability
