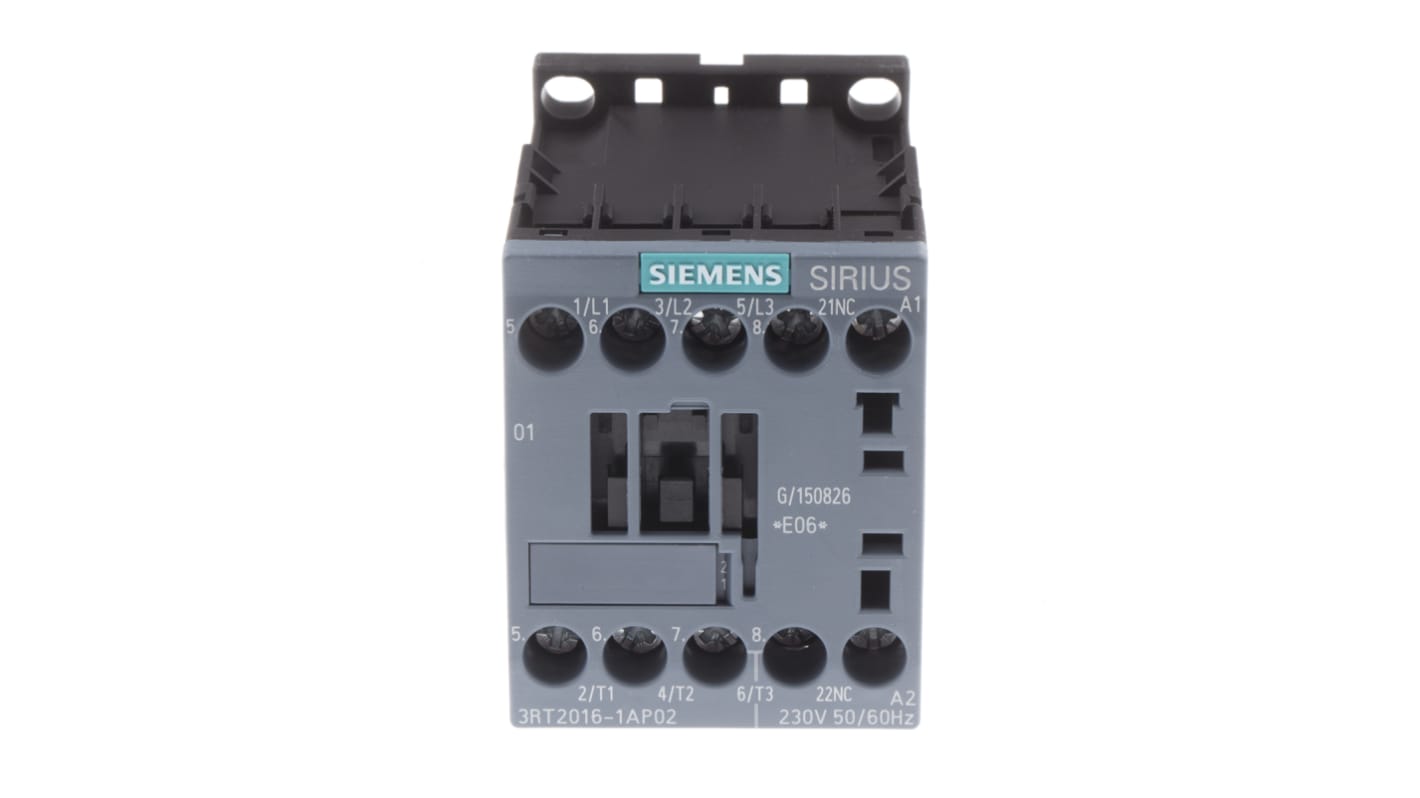

Siemens 3RT2 Contactor, 230V ac Coil, 3-Pole, 9 A, 4 kW 230V ac, 3 NO, 400V ac

RS-stocknr.:: 706-1128
Artikelnummer Distrelec:: 304-23-377
Fabrikantnummer:: 3RT2016-1AP02
Fabrikant:: Siemens

Siemens 3RT2 Contactor, 230V ac Coil, 3-Pole, 9 A, 4 kW 230V ac, 3 NO, 400V ac

Subtotaal (1 eenheid)*

€ 39,48

(excl. BTW)

€ 47,77

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

15 stuk(s) klaar voor verzending
77 stuk(s) klaar voor verzending vanaf een andere locatie

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 39,48

*prijsindicatie

Ons Better World assortiment bevat producten die het u gemakkelijk maken om een groenere productkeuze te maken waarop u kunt vertrouwen.

Lees meer over de RS Better World producten

RS-stocknr.:: 706-1128
Artikelnummer Distrelec:: 304-23-377
Fabrikantnummer:: 3RT2016-1AP02
Fabrikant:: Siemens

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Siemens
	Coil Voltage	230V ac
	Product Type	Contactor
	Number of Poles	3
	Contact Voltage	400V ac
	Contact Current	9A
	Series	3RT2
	Power Rating	4kW
	Mount Type	DIN Rail
	Normal State Configuration	3 NO
	Number of Auxiliary Contacts	1
	Auxiliary Contact Configuration	1 NC
	Terminal Type	Screw Clamp
	Minimum Operating Temperature	-25°C
	Control Circuit Voltage Uc	230V ac
	Operational Current Ie	22A
	Maximum Operating Temperature	60°C
	Depth	73mm
	Width	45mm
	Length	57.5mm
	Standards/Approvals	EAC
	Better World Product	Yes
	Better World Claim	Low Carbon Manufacture
	Pole and Throw Configuration	3

	Alles selecteren
	Merk Siemens
	Coil Voltage 230V ac
	Product Type Contactor
	Number of Poles 3
	Contact Voltage 400V ac
	Contact Current 9A
	Series 3RT2
	Power Rating 4kW
	Mount Type DIN Rail
	Normal State Configuration 3 NO
	Number of Auxiliary Contacts 1
	Auxiliary Contact Configuration 1 NC
	Terminal Type Screw Clamp
	Minimum Operating Temperature -25°C
	Control Circuit Voltage Uc 230V ac
	Operational Current Ie 22A
	Maximum Operating Temperature 60°C
	Depth 73mm
	Width 45mm
	Length 57.5mm
	Standards/Approvals EAC
	Better World Product Yes
	Better World Claim Low Carbon Manufacture
	Pole and Throw Configuration 3

Land van herkomst:: DE

Siemens 3RT2 Series Contactor, 230V AC Coil Voltage, 3NO Normal State Configuration - 3RT2016-1AP02

This contactor facilitates efficient control of electrical circuits, making it suitable for various industrial applications. With a power rating of 4kW and a 9A contact current rating, it is ideal for automation tasks requiring quick and precise switching. It operates at a coil voltage of 230V AC, catering to a range of electrical environments.

Features & Benefits

• Operates efficiently at ambient temperatures up to 60°C

• Low carbon contactor supports environmentally conscious practices

• Includes 3 normally open contacts, providing versatility

• Comes with an auxiliary contact for enhanced functionality

• Features screw terminal connections for straightforward installation

• Mechanical lifespan of 30 million operating cycles

Applications

• Controls three-phase motors in automation systems

• Suitable for HVAC control systems

• Applied in pumping systems for motor management

• Used in conveyor systems requiring frequent switching

What are the operational temperature limits?

The operational temperature range is -25°C to +60°C.

How is it installed in an electrical panel?

It can be mounted onto a standard 35mm DIN rail using screw fastening.

What is the suitable wire size for connections?

It accommodates a conductor cross-section from 0.5mm² to 4mm².

Is it compatible with different voltage ratings?

This is primarily rated for a coil voltage of 230V AC.

How often can it operate before requiring maintenance?

It can achieve up to 30 million switching cycles before maintenance is necessary.
