Siemens 3RT2 Contactor, 110V ac Coil, 3-Pole, 9 A, 4 kW 110V ac, 3 NO, 400V ac
- RS-stocknr.:
- 706-1140
- Fabrikantnummer:
- 3RT2016-2AF02
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 48,28
(excl. BTW)
€ 58,42
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 1 stuk(s) vanaf 14 september 2026
- Plus verzending 13 stuk(s) vanaf 14 september 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 48,28 |
*prijsindicatie
Ons Better World assortiment bevat producten die het u gemakkelijk maken om een groenere productkeuze te maken waarop u kunt vertrouwen.
Lees meer over de RS Better World producten
- RS-stocknr.:
- 706-1140
- Fabrikantnummer:
- 3RT2016-2AF02
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| Coil Voltage | 110V ac | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 400V ac | |
| Contact Current | 9A | |
| Power Rating | 4kW | |
| Series | 3RT2 | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 3 NO | |
| Number of Auxiliary Contacts | 1 | |
| Auxiliary Contact Configuration | 1 NC | |
| Terminal Type | Spring Loaded | |
| Minimum Operating Temperature | -25°C | |
| Control Circuit Voltage Uc | 110V ac | |
| Operational Current Ie | 22A | |
| Maximum Operating Temperature | 60°C | |
| Depth | 73mm | |
| Length | 70mm | |
| Width | 45mm | |
| Standards/Approvals | EAC | |
| Better World Claim | Low Carbon Manufacture | |
| Better World Product | Yes | |
| Pole and Throw Configuration | 3 | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
Coil Voltage 110V ac | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Voltage 400V ac | ||
Contact Current 9A | ||
Power Rating 4kW | ||
Series 3RT2 | ||
Mount Type DIN Rail | ||
Normal State Configuration 3 NO | ||
Number of Auxiliary Contacts 1 | ||
Auxiliary Contact Configuration 1 NC | ||
Terminal Type Spring Loaded | ||
Minimum Operating Temperature -25°C | ||
Control Circuit Voltage Uc 110V ac | ||
Operational Current Ie 22A | ||
Maximum Operating Temperature 60°C | ||
Depth 73mm | ||
Length 70mm | ||
Width 45mm | ||
Standards/Approvals EAC | ||
Better World Claim Low Carbon Manufacture | ||
Better World Product Yes | ||
Pole and Throw Configuration 3 | ||
- Load feeders Configuring SIRIUS Innovations Configuration Manual 04/2010
- Switching Devices for Load Feeders
- Datasheet_3RT2016-2AF02
- Sirius Innovation Accessory Guide
- Sirius Innovation Catalogue
- Sirius Innovations Switching Devices
- Solutions for frequent switching or soft starting
- Basic Information
- Siemens Sirius Migration
- Sirius: Migrating From Classic to Innovation
- Siemens EcoTech label
- Environmental Product Declaration
- Instruction Sheet - 3RT2.1/3RH21/3RH24 Series
- Land van herkomst:
- DE

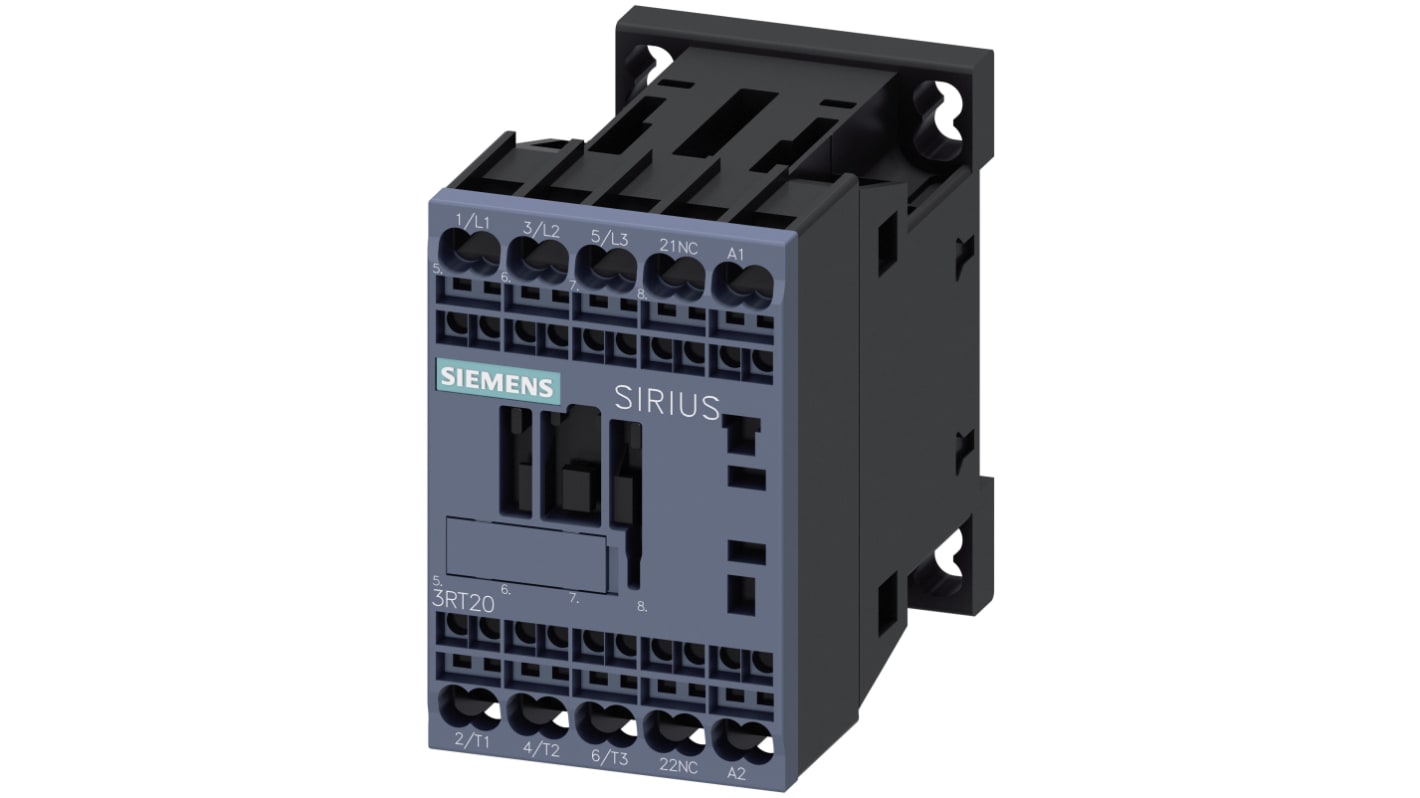

Siemens size S00, 3RT2 Series Contactor, 9A Current Rating, 3NO Contact Configuration - 3RT2016-2AF02
This contactor is designed for efficient control in automation systems. With 3 poles and a current rating of 9A, it operates at a coil voltage of 110V AC and a contact voltage rating of 400V AC. The compact dimensions of 70mm length, 45mm width, and 73mm depth make this size S00 contactor suitable for DIN Rail mounting, ensuring easy installation in various electrical setups.
Features & Benefits
• Spring-loaded terminals ensure secure and reliable connections
• Operates effectively within a temperature range of -25°C to +60°C
• Auxiliary contact configuration includes 1 NC for operational versatility
• Mechanical service life of up to 30 million cycles for durability
Applications
• Used in motor control to manage electrical loads
• Applicable in industrial automation for reliable switching
• Ideal for controlling lighting and heating systems
• Utilised in machinery for enhanced control and safety features
What are the key electrical specifications for typical operational use?
The electrical specifications include a coil voltage of 110V AC, a contact voltage rating of 400V AC, and a contact current rating of 9A. This allows it to effectively manage a range of industrial applications within defined limits.
How does the design support mounting in various environments?
It features a DIN Rail mounting style, enabling secure installation in electrical panels and standardised mounting systems. This design aids in maintaining an organised layout for easier maintenance and accessibility in industrial settings.
What advantages does the contactor's construction provide during operation?
Its robust construction ensures stability and performance under varying operational conditions, including a wide temperature range. This reliability allows consistent performance in harsh environments, making it suitable for diverse applications.
How does the contactor ensure safe and efficient operation?
With an insulation voltage of 690V and surge voltage resistance rated at 6kV, it ensures safe handling of electrical loads while minimising risks associated with surges and faults during operation.
