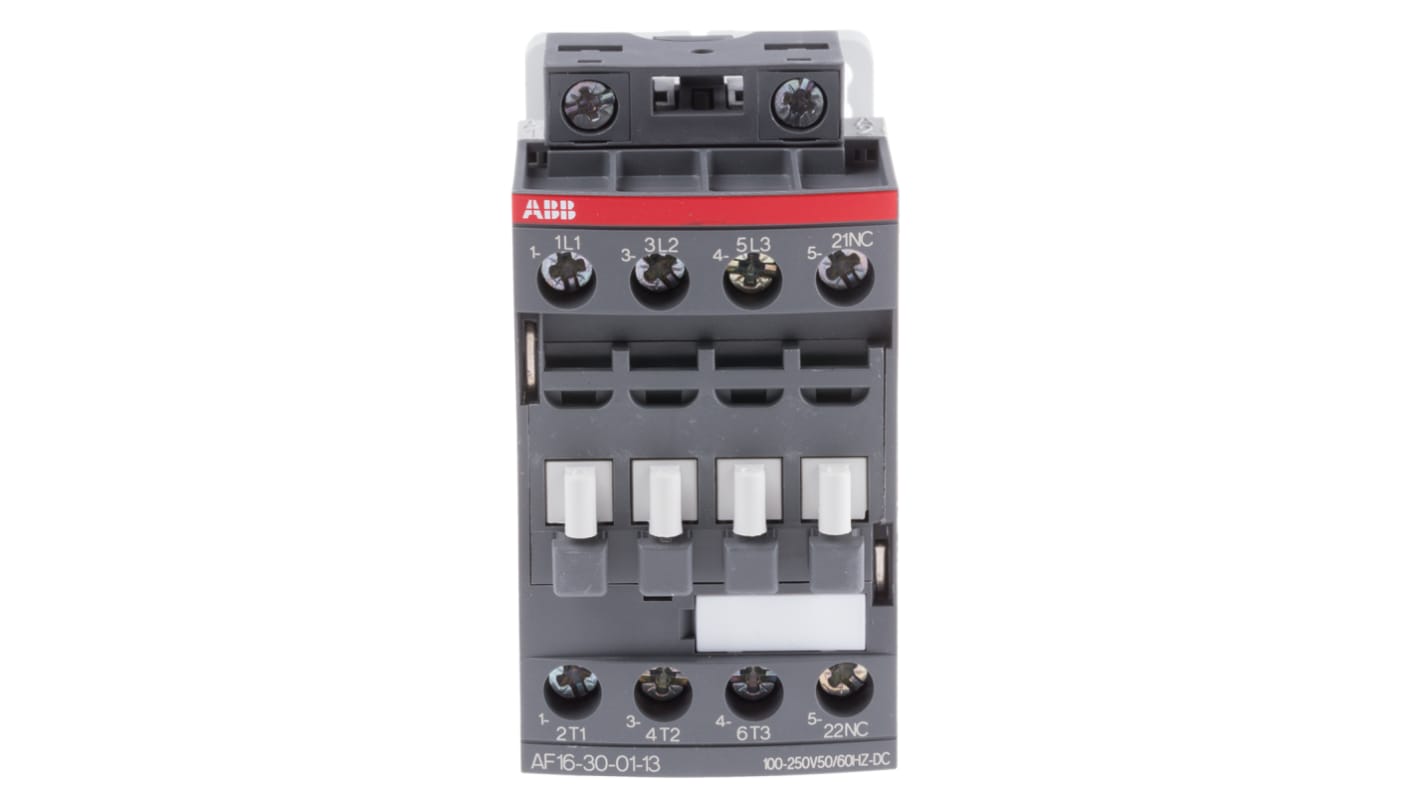

ABB AF16 Contactor, 230V ac Coil, 3-Pole, 10.5 A, 7.5 kW 250V, 3 NO, 690V ac

RS-stocknr.:: 711-6171
Fabrikantnummer:: 1SBL177001R1301 AF16-30-01-13
Fabrikant:: ABB

ABB AF16 Contactor, 230V ac Coil, 3-Pole, 10.5 A, 7.5 kW 250V, 3 NO, 690V ac

Bekijk alle Contactors

Subtotaal (1 eenheid)*

€ 76,84

(excl. BTW)

€ 92,98

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

4 stuk(s) klaar voor verzending
31 stuk(s) klaar voor verzending vanaf een andere locatie

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 76,84

*prijsindicatie

RS-stocknr.:: 711-6171
Fabrikantnummer:: 1SBL177001R1301 AF16-30-01-13
Fabrikant:: ABB

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	ABB
	Coil Voltage	230V ac
	Product Type	Contactor
	Number of Poles	3
	Contact Voltage	690V ac
	Contact Current	10.5A
	Power Rating	7.5kW
	Series	AF16
	Mount Type	DIN Rail
	Function	Capacitor Switching, Motor Control
	Normal State Configuration	3 NO
	Auxiliary Contact Configuration	1 NC
	Number of Auxiliary Contacts	1
	Terminal Type	Screw
	Control Circuit Voltage Uc	250V
	Contactor Application	Capacitor Switching, Motor Control
	Minimum Operating Temperature	-40°C
	Operational Current Ie	16A
	Maximum Operating Temperature	70°C
	Length	80mm
	Width	45mm
	Standards/Approvals	IEC, CCC, CSA, EAC, RoHS, UL
	Depth	77mm
	Pole and Throw Configuration	3P

	Alles selecteren
	Merk ABB
	Coil Voltage 230V ac
	Product Type Contactor
	Number of Poles 3
	Contact Voltage 690V ac
	Contact Current 10.5A
	Power Rating 7.5kW
	Series AF16
	Mount Type DIN Rail
	Function Capacitor Switching, Motor Control
	Normal State Configuration 3 NO
	Auxiliary Contact Configuration 1 NC
	Number of Auxiliary Contacts 1
	Terminal Type Screw
	Control Circuit Voltage Uc 250V
	Contactor Application Capacitor Switching, Motor Control
	Minimum Operating Temperature -40°C
	Operational Current Ie 16A
	Maximum Operating Temperature 70°C
	Length 80mm
	Width 45mm
	Standards/Approvals IEC, CCC, CSA, EAC, RoHS, UL
	Depth 77mm
	Pole and Throw Configuration 3P

Land van herkomst:: FR

ABB Contactor, Screw-Terminal Type, 7.5kW Power Rating - AF Series - 1SBL177001R1301 AF16-30-01-13

Turn your heavy-duty equipment on and off in a flash with this contactor from ABB. It's made up of an internal electromagnetic coil that opens or closes a set of contacts when it receives electrical energy. Thanks to its mechanical switching frequency of 3600 cycles per hour, you can count on this device to support demanding applications. A rated impulse withstand voltage of 6kV means it holds its own in the event of a powerful surge, keeping you and your equipment safe from shocks and electrical damage.

Features & Benefits

• Voltage rating of 690V for use in medium-power electrical systems

• Screw terminals achieve a secure electrical connection

• Delivers reliable performance in harsh environments, thanks to a wide operating temperature range between -40°C and +70°C

• Compact dimensions of 77 (L) x 45 (W) x 86mm (H) to maximise space in your setup

Applications

• Lighting control

• Automotive engineering

• Material handling

• Power stations

How do I mount this contactor?

You can mount this contactor by attaching it to a DIN rail, eliminating the need for complex installation tools.
