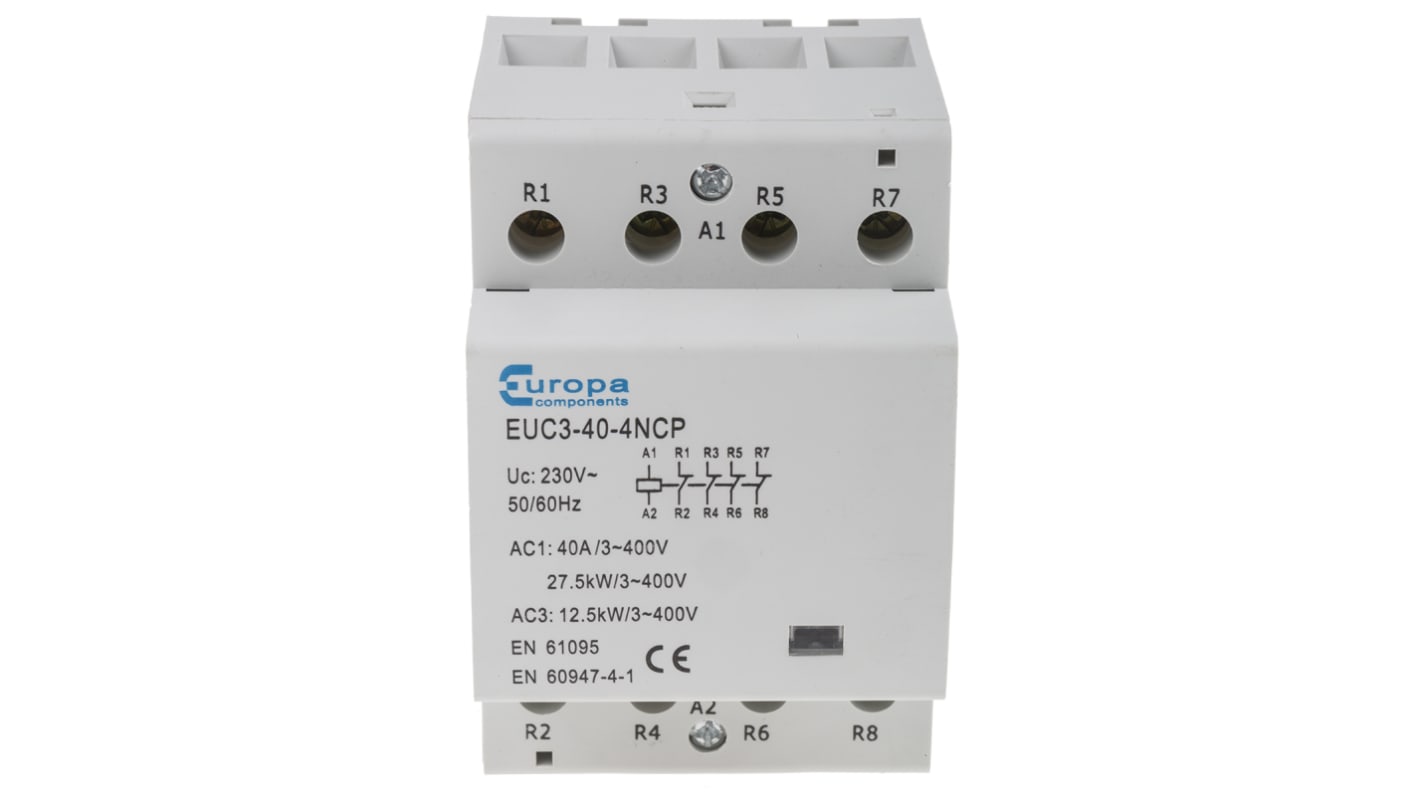

Europa EUC Contactor, 230V ac Coil, 4-Pole, 40 A, 12.5 kW 230V ac, 4 NC, 400V ac
- RS-stocknr.:
- 916-0344
- Fabrikantnummer:
- EUC3-40-4NCP
- Fabrikant:
- Europa
Subtotaal (1 eenheid)*
€ 111,33
(excl. BTW)
€ 134,71
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 16 stuk(s) vanaf 15 juni 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 111,33 |
*prijsindicatie
- RS-stocknr.:
- 916-0344
- Fabrikantnummer:
- EUC3-40-4NCP
- Fabrikant:
- Europa
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Europa | |
| Coil Voltage | 230V ac | |
| Product Type | Contactor | |
| Number of Poles | 4 | |
| Contact Voltage | 400V ac | |
| Contact Current | 40A | |
| Series | EUC | |
| Power Rating | 12.5kW | |
| Function | Motor Control | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 4 NC | |
| Number of Auxiliary Contacts | 4 | |
| Auxiliary Contact Configuration | 4 NC | |
| Terminal Type | Screw | |
| Control Circuit Voltage Uc | 230V ac | |
| Contactor Application | Motor Control | |
| Operational Current Ie | 40A | |
| Width | 88mm | |
| Depth | 68mm | |
| Standards/Approvals | CE, CSA, cUL, EAC, IEC, RoHS | |
| Length | 54mm | |
| Pole and Throw Configuration | 4PST | |
| Alles selecteren | ||
|---|---|---|
Merk Europa | ||
Coil Voltage 230V ac | ||
Product Type Contactor | ||
Number of Poles 4 | ||
Contact Voltage 400V ac | ||
Contact Current 40A | ||
Series EUC | ||
Power Rating 12.5kW | ||
Function Motor Control | ||
Mount Type DIN Rail | ||
Normal State Configuration 4 NC | ||
Number of Auxiliary Contacts 4 | ||
Auxiliary Contact Configuration 4 NC | ||
Terminal Type Screw | ||
Control Circuit Voltage Uc 230V ac | ||
Contactor Application Motor Control | ||
Operational Current Ie 40A | ||
Width 88mm | ||
Depth 68mm | ||
Standards/Approvals CE, CSA, cUL, EAC, IEC, RoHS | ||
Length 54mm | ||
Pole and Throw Configuration 4PST | ||
- Land van herkomst:
- CN
Europacomponents EUC3 Series Modular Contactor
Europa Components EUC3 series 4 pole modular contactors. These units are DIN Rail mounted and designed for installation in consumer units and three phase distribution boards. Ideal for heating lighting and building service type applications.
4 Pole
Operating temperature: -5°C to 40°C
35mm DIN Rail mounting
Maximum cable capacity main terminals: 10 mm²
Maximum cable capacity coil terminals: 2.5 mm²
Europacomponents Circuit Protection Devices
Note
Modular contactors should be separated from other components using blanking modules to allow for heat dissipation.
