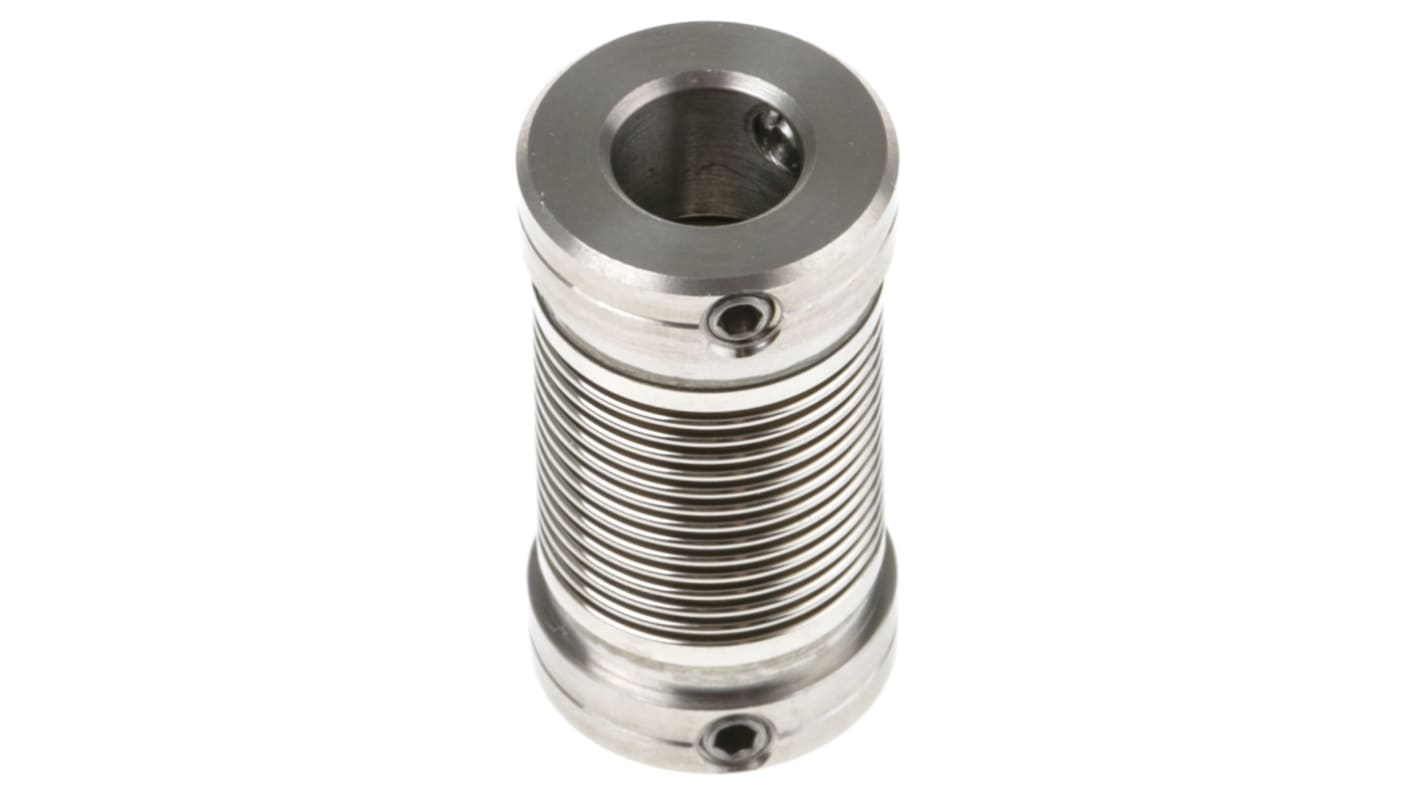

Huco Bellows Coupling, 12mm Outside Diameter, 6mm Bore, 23mm Length Coupler
- RS-stocknr.:
- 748-235
- Fabrikantnummer:
- 321.12.2222
- Fabrikant:
- Huco
Bekijk alle Flexible Couplings
4 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
28 op voorraad - levertijd is 3 à 5 werkdagen (UK-voorraad)
Prijs Each
€ 130,74
(excl. BTW)
€ 158,20
(incl. BTW)
| Aantal stuks | Per stuk |
| 1 + | € 130,74 |
- RS-stocknr.:
- 748-235
- Fabrikantnummer:
- 321.12.2222
- Fabrikant:
- Huco
Wetgeving en compliance
- Land van herkomst:
- FR
Productomschrijving
Nickel Bellows Couplings
The bellows is a traditional mechanism for flexibly connecting two rotating shafts with angular, parallel and axial offset capability. Can be used with the RS range of bore reducers.
High torsional stiffness
High quality of translation of motion
Suitable for drives associated with instruments
Grub screw fixing
High quality of translation of motion
Suitable for drives associated with instruments
Grub screw fixing
Note
Service life can be affected with load reversal applications or when driving loads incrementally. Bore size attirbute refers to dimensions B1 and B2 in in that order.
Specificaties
Kenmerk | Waarde |
|---|---|
| Coupling Types | Bellows Coupling |
| Bore | 6mm |
| Outside Diameter | 12mm |
| Length | 23mm |
| Torque Rating | 0.79Nm |
| Misalignment - Angular | 14° |
| Misalignment - Parallel | +1.6 → -2.2mm |
| Misalignment - Axial | 1.72mm |
