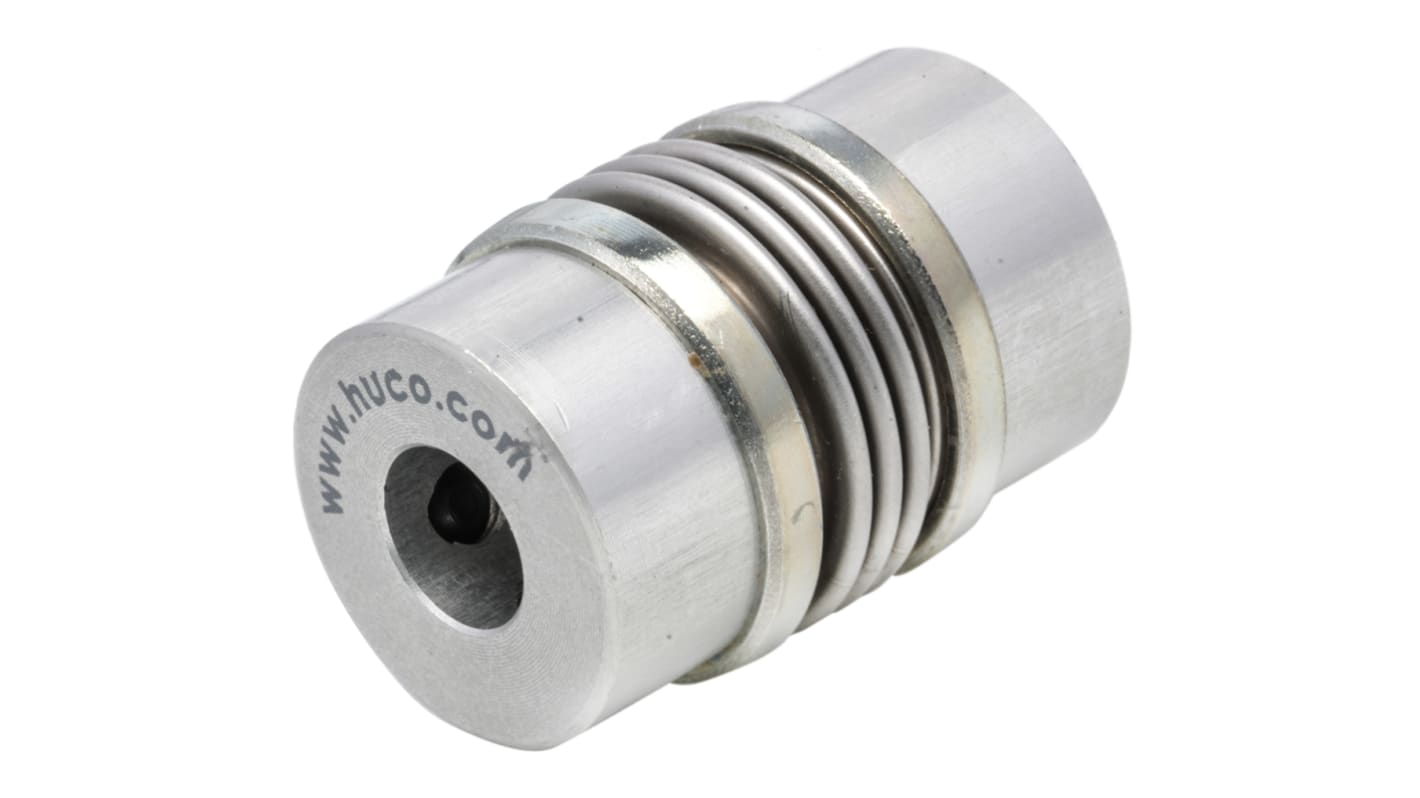

Huco, 26 mm OD 10 mm, 37.5 mm Length Coupler 10 mm

Name: Huco, 26 mm OD 10 mm, 37.5 mm Length Coupler 10 mm
Brand: Huco
SKU: 693-2483
Price: 44.58 EUR
Availability: InStock

Bulkkorting beschikbaar

Subtotaal (1 eenheid)*

€ 36,84

(excl. BTW)

€ 44,58

(incl. BTW)

Bestellingen onder € 75,00 (excl. BTW) € 5,95.

Op voorraad

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

*prijsindicatie

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Huco
	Product Type	Coupler
	Outside Diameter	26 mm
	Length	37.5mm
	Maximum Speed	5000rpm
	Torque Rating	4.62Nm
	Moment of Inertia	350 x 10-8 kg/m²
	Misalignment - Angular	2°
	Misalignment - Parallel	0.06mm
	Hub Material	Aluminium
	Style	Screw
	Misalignment - Axial	0.36mm
	Bore Size A	10mm
	Bore Size B	10mm
	Bellows Material	Stainless Steel
	Minimum Operating Temperature	-40°C
	Series	Flex B
	Maximum Operating Temperature	120°C
	Standards/Approvals	No
	Screw Size	M5

	Alles selecteren
	Merk Huco
	Product Type Coupler
	Outside Diameter 26 mm
	Length 37.5mm
	Maximum Speed 5000rpm
	Torque Rating 4.62Nm
	Moment of Inertia 350 x 10-8 kg/m²
	Misalignment - Angular 2°
	Misalignment - Parallel 0.06mm
	Hub Material Aluminium
	Style Screw
	Misalignment - Axial 0.36mm
	Bore Size A 10mm
	Bore Size B 10mm
	Bellows Material Stainless Steel
	Minimum Operating Temperature -40°C
	Series Flex B
	Maximum Operating Temperature 120°C
	Standards/Approvals No
	Screw Size M5

High torsional stiffness for positional accuracy

Low inertia

Ideal for servo drive applications with high precision dynamic position control

Material: Aluminium hub; stainless steel bellows
