Electro PJP Alligator Clip, Nickel Plated Steel Contact, Red
- RS-stocknr.:
- 263-9218
- Fabrikantnummer:
- 6009-IEC-R
- Fabrikant:
- Electro PJP
Subtotaal (1 eenheid)*
€ 11,15
(excl. BTW)
€ 13,49
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 36 stuk(s) vanaf 27 april 2026
- Plus verzending 25 stuk(s) vanaf 27 april 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 11,15 |
*prijsindicatie
- RS-stocknr.:
- 263-9218
- Fabrikantnummer:
- 6009-IEC-R
- Fabrikant:
- Electro PJP
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Electro PJP | |
| Product Type | Alligator Clip | |
| Jaw Opening | 12mm | |
| Current | 20A | |
| Contact Material | Nickel Plated Steel | |
| Insulated | Yes | |
| Colour | Red | |
| Standards/Approvals | EN/IEC 61010-031:2015 | |
| Alles selecteren | ||
|---|---|---|
Merk Electro PJP | ||
Product Type Alligator Clip | ||
Jaw Opening 12mm | ||
Current 20A | ||
Contact Material Nickel Plated Steel | ||
Insulated Yes | ||
Colour Red | ||
Standards/Approvals EN/IEC 61010-031:2015 | ||
- Land van herkomst:
- FR

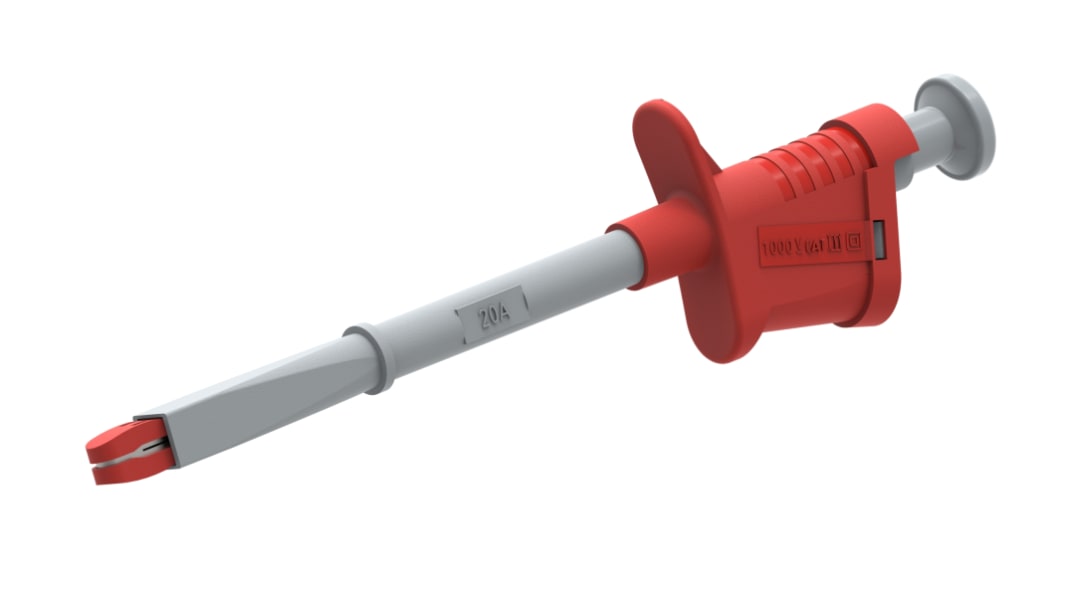

The Electro PJP pincer clip have w/4 mm female type banana jack socket. It has optimum jaw design to clean well a lot of various items as bar, wire, screw and PCB pin. This alligator clip have IP2X touch proof protection on the jaws when closed and the 4 mm female to prevent accidental contacts and handling is easy by the syringe type ergonomics. The color of the product is red and it has nickel-coated steel, steel, and brass type conductors. The operating temperature range is -20 °C to +60 °C.
RoHS compliant
Weight is 0.027 kg and overall length of the product is 153 mm
1000 V CAT II / 1000 V CAT III / 600 V CAT IV, reinforced insulation, 20 A (at +40 °C)
