Ecliptek, 1.8432MHz XO Oscillator, 20 ppm CMOS, 4-Pin Surface Mount
- RS-stocknr.:
- 219-2018P
- Fabrikantnummer:
- EC2620TS-1.8432M TR
- Fabrikant:
- Ecliptek
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal 20 eenheden (geleverd op een doorlopende strip)*
€ 16,90
(excl. BTW)
€ 20,44
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 694 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 20 - 98 | € 0,845 |
| 100 - 248 | € 0,81 |
| 250 - 498 | € 0,785 |
| 500 + | € 0,77 |
*prijsindicatie
- RS-stocknr.:
- 219-2018P
- Fabrikantnummer:
- EC2620TS-1.8432M TR
- Fabrikant:
- Ecliptek
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Ecliptek | |
| Product Type | Oscillator | |
| Oscillator Type | XO | |
| Output Frequency | 1.8432MHz | |
| Frequency Stability | 20 ppm | |
| Packaging | Tape & Reel | |
| Package Type | Surface Mount | |
| Maximum Supply Voltage | 3.3V | |
| Output Level | CMOS | |
| Mount Type | Surface | |
| Pin Count | 4 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 1.8mm | |
| Standards/Approvals | No | |
| Width | 5mm | |
| Length | 7mm | |
| Series | EC26 | |
| Automotive Standard | No | |
| Alles selecteren | ||
|---|---|---|
Merk Ecliptek | ||
Product Type Oscillator | ||
Oscillator Type XO | ||
Output Frequency 1.8432MHz | ||
Frequency Stability 20 ppm | ||
Packaging Tape & Reel | ||
Package Type Surface Mount | ||
Maximum Supply Voltage 3.3V | ||
Output Level CMOS | ||
Mount Type Surface | ||
Pin Count 4 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 85°C | ||
Height 1.8mm | ||
Standards/Approvals No | ||
Width 5mm | ||
Length 7mm | ||
Series EC26 | ||
Automotive Standard No | ||
- Land van herkomst:
- KR

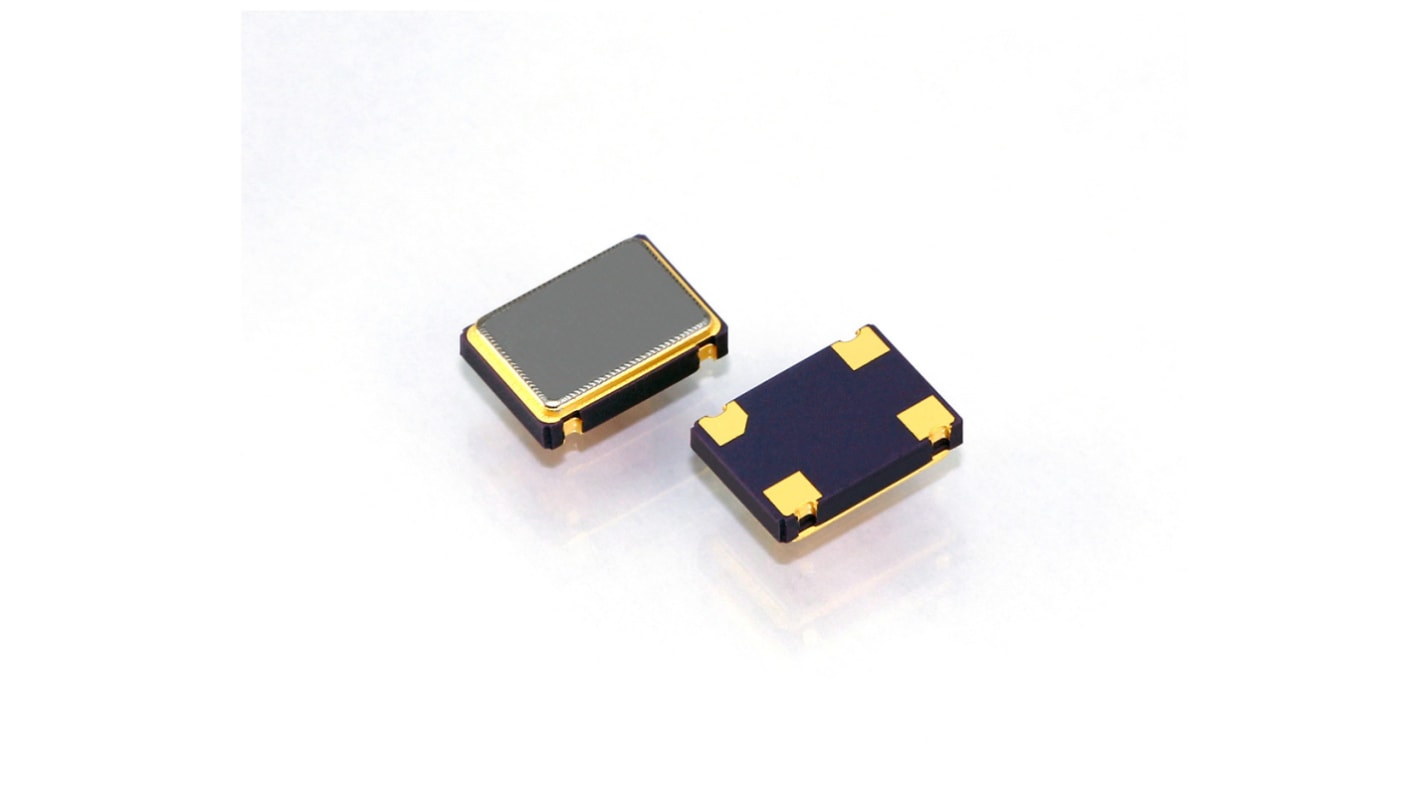

The Ecliptek EC26 series quartz crystal clock oscillator has standby(power down) function and nominal frequency of 1.8432MHz. It has tri-state high impedance pin connection. This oscillator comes in tape and reel packaging.
Mounting Type: Surface Mount
Output type: CMOS
Frequency Stability: ±20ppm
Package: 4-SMD, No Lead
Operating Temperature: -10°C to 70°C
