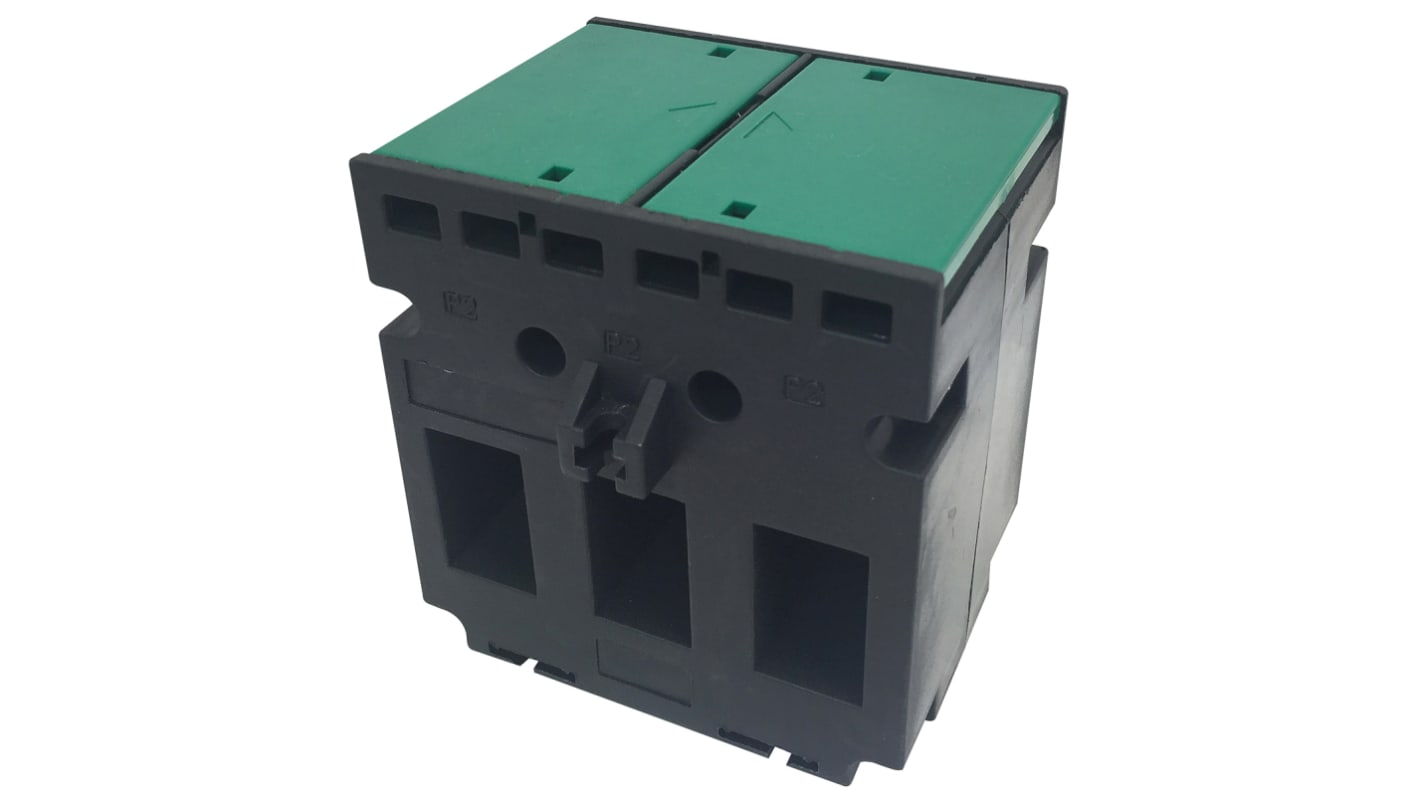

Sifam Tinsley OMEGA Series Current Transformer 125 A 31 mm Bore
- RS-stocknr.:
- 123-6713
- Fabrikantnummer:
- XN25-205031S000000
- Fabrikant:
- Sifam Tinsley
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 41,53
(excl. BTW)
€ 50,25
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 75,00
Op voorraad
- 3 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 41,53 |
| 5 - 9 | € 39,87 |
| 10 + | € 38,21 |
*prijsindicatie
- RS-stocknr.:
- 123-6713
- Fabrikantnummer:
- XN25-205031S000000
- Fabrikant:
- Sifam Tinsley
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Sifam Tinsley | |
| Product Type | Current Transformer | |
| Series | OMEGA | |
| Secondary Current | 5 A | |
| Terminal Type | Wire | |
| Primary Current | 125A | |
| Length | 87.5mm | |
| Width | 75 mm | |
| Depth | 60mm | |
| Standards/Approvals | IEC 61010-2, IEC 61869-1, IEC/EN 60044-1, UL | |
| Weight | 0.6kg | |
| Mount Type | DIN Rail, Busbar, Plug-in | |
| Maximum Operating Frequency | 60Hz | |
| Bore Size | 31 mm | |
| Minimum Operating Frequency | 50Hz | |
| Alles selecteren | ||
|---|---|---|
Merk Sifam Tinsley | ||
Product Type Current Transformer | ||
Series OMEGA | ||
Secondary Current 5 A | ||
Terminal Type Wire | ||
Primary Current 125A | ||
Length 87.5mm | ||
Width 75 mm | ||
Depth 60mm | ||
Standards/Approvals IEC 61010-2, IEC 61869-1, IEC/EN 60044-1, UL | ||
Weight 0.6kg | ||
Mount Type DIN Rail, Busbar, Plug-in | ||
Maximum Operating Frequency 60Hz | ||
Bore Size 31 mm | ||
Minimum Operating Frequency 50Hz | ||
Niet conform
- Land van herkomst:
- IN
Sifam OMEGA 3 Phase Current Transformers
OMEGA 3 Phase current transformers are suitable for primary ranges from 60 A to 630 A with 5 A secondary. The current transformers allow faster installation directly next to the moulded case circuit breakers for optimised use of space.
Features and Benefits
• Wire sealable terminal covers
• Cost effective 3 phase case design
• System voltage 720 V, 50-60 Hz
• Primary currents 60 Amps to 630 Amps AC
• 3 sizes available: 15 x 25 mm, 21 x 25 mm & 31 x 31 mm
• Various mounting options- DIN Rail, Busbar or Base mounting
• Self-extinguishing casing classification VO according to UL-94
• Accuracy class 1
Current Transformers
