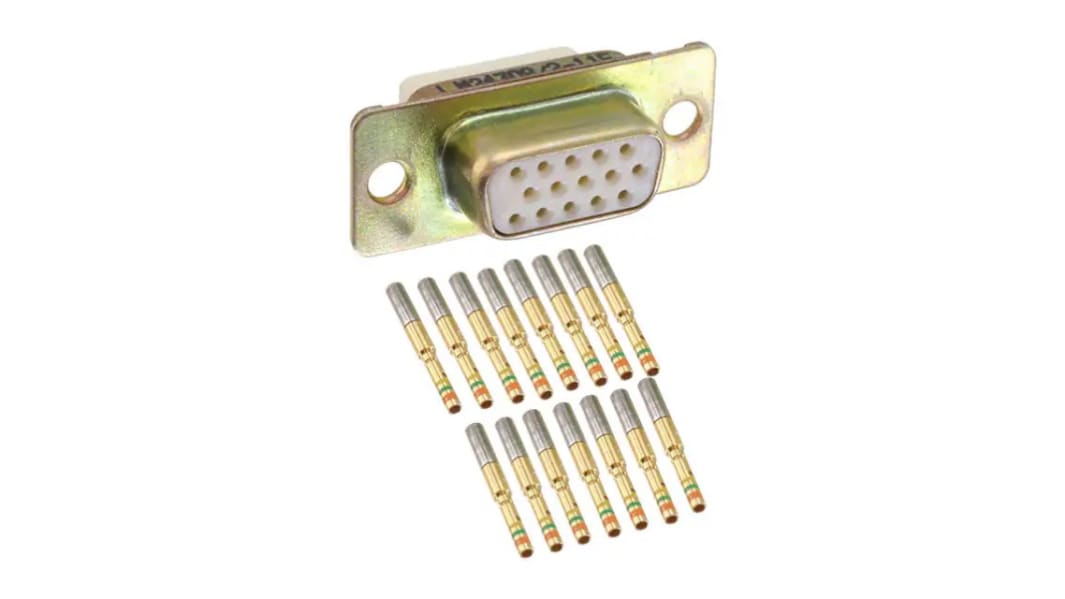

Amphenol India M24308 15 Way Straight 2.29 mm Pitch Panel Mount D-Sub Connector, with 4 to 40 Screw Lock Female
- RS-stocknr.:
- 213-3452
- Fabrikantnummer:
- M24308/2-11F
- Fabrikant:
- Amphenol India
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 28,36
(excl. BTW)
€ 34,32
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 73 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 9 | € 28,36 |
| 10 - 99 | € 27,58 |
| 100 - 249 | € 26,83 |
| 250 - 499 | € 26,12 |
| 500 + | € 25,43 |
*prijsindicatie
- RS-stocknr.:
- 213-3452
- Fabrikantnummer:
- M24308/2-11F
- Fabrikant:
- Amphenol India
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Amphenol India | |
| Number of Contacts | 15 | |
| Product Type | D-Sub Connector | |
| Current | 7.5A | |
| Orientation | Straight | |
| Mount Type | Panel Mount | |
| Connector Gender | Female | |
| Connector Type D | D-Sub | |
| Mounting Hardware | 4 to 40 Screw Lock | |
| Housing Material | Glass Filled Polyester | |
| Voltage | 1000V | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Crimp | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Contact Plating | Gold | |
| Series | M24308 | |
| Contact Material | Copper Alloy | |
| Pitch | 2.29mm | |
| Alles selecteren | ||
|---|---|---|
Merk Amphenol India | ||
Number of Contacts 15 | ||
Product Type D-Sub Connector | ||
Current 7.5A | ||
Orientation Straight | ||
Mount Type Panel Mount | ||
Connector Gender Female | ||
Connector Type D D-Sub | ||
Mounting Hardware 4 to 40 Screw Lock | ||
Housing Material Glass Filled Polyester | ||
Voltage 1000V | ||
Minimum Operating Temperature -55°C | ||
Termination Type Crimp | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Contact Plating Gold | ||
Series M24308 | ||
Contact Material Copper Alloy | ||
Pitch 2.29mm | ||
Niet conform
- Land van herkomst:
- IN
The Amphenol India M24308 series D-sub connector is high density socket crimp type connector. It has 15 pin. It has finishing with cadmium yellow passivation material. They are designed for rack and panel applications.
Operating temperature ranges between - 55°C to + 125°C
Contact is made from copper alloy with gold plating
