Amphenol India M24308 9 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector, with 4 to 40 Screw Lock Female
- RS-stocknr.:
- 213-3458
- Fabrikantnummer:
- M24308/2-1F
- Fabrikant:
- Amphenol India
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 23,89
(excl. BTW)
€ 28,91
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 80,00
Op voorraad
- Plus verzending 166 stuk(s) vanaf 30 maart 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 9 | € 23,89 |
| 10 - 99 | € 21,51 |
| 100 - 249 | € 19,76 |
| 250 - 499 | € 19,23 |
| 500 + | € 18,73 |
*prijsindicatie
- RS-stocknr.:
- 213-3458
- Fabrikantnummer:
- M24308/2-1F
- Fabrikant:
- Amphenol India
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Amphenol India | |
| Number of Contacts | 9 | |
| Product Type | D-Sub Connector | |
| Current | 7.5A | |
| Orientation | Straight | |
| Mount Type | Panel Mount | |
| Connector Gender | Female | |
| Connector Type D | D-Sub | |
| Mounting Hardware | 4 to 40 Screw Lock | |
| Housing Material | Glass Filled Polyester | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Crimp | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Contact Plating | Gold | |
| Series | M24308 | |
| Contact Material | Copper Alloy | |
| Pitch | 2.77mm | |
| Alles selecteren | ||
|---|---|---|
Merk Amphenol India | ||
Number of Contacts 9 | ||
Product Type D-Sub Connector | ||
Current 7.5A | ||
Orientation Straight | ||
Mount Type Panel Mount | ||
Connector Gender Female | ||
Connector Type D D-Sub | ||
Mounting Hardware 4 to 40 Screw Lock | ||
Housing Material Glass Filled Polyester | ||
Minimum Operating Temperature -55°C | ||
Termination Type Crimp | ||
Contact Gender Female | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Contact Plating Gold | ||
Series M24308 | ||
Contact Material Copper Alloy | ||
Pitch 2.77mm | ||
Niet conform
- Land van herkomst:
- IN

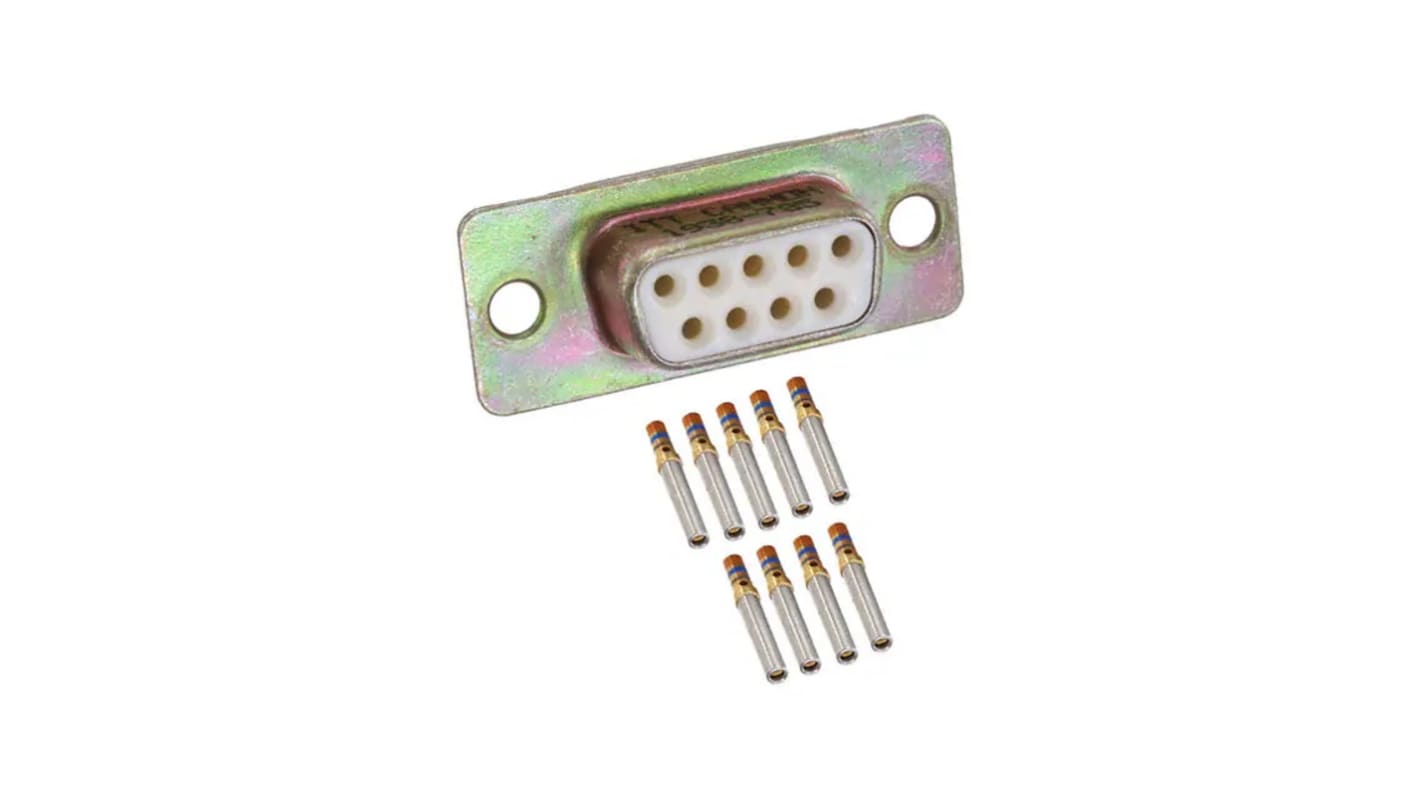

The Amphenol India M24308 series D-sub connector is socket crimp type connector. It has 9 pin. It has finishing with cadmium yellow passivation material. They are designed for rack and panel applications.
Operating temperature ranges between - 55°C to + 125°C
Contact is made from copper alloy with gold plating
