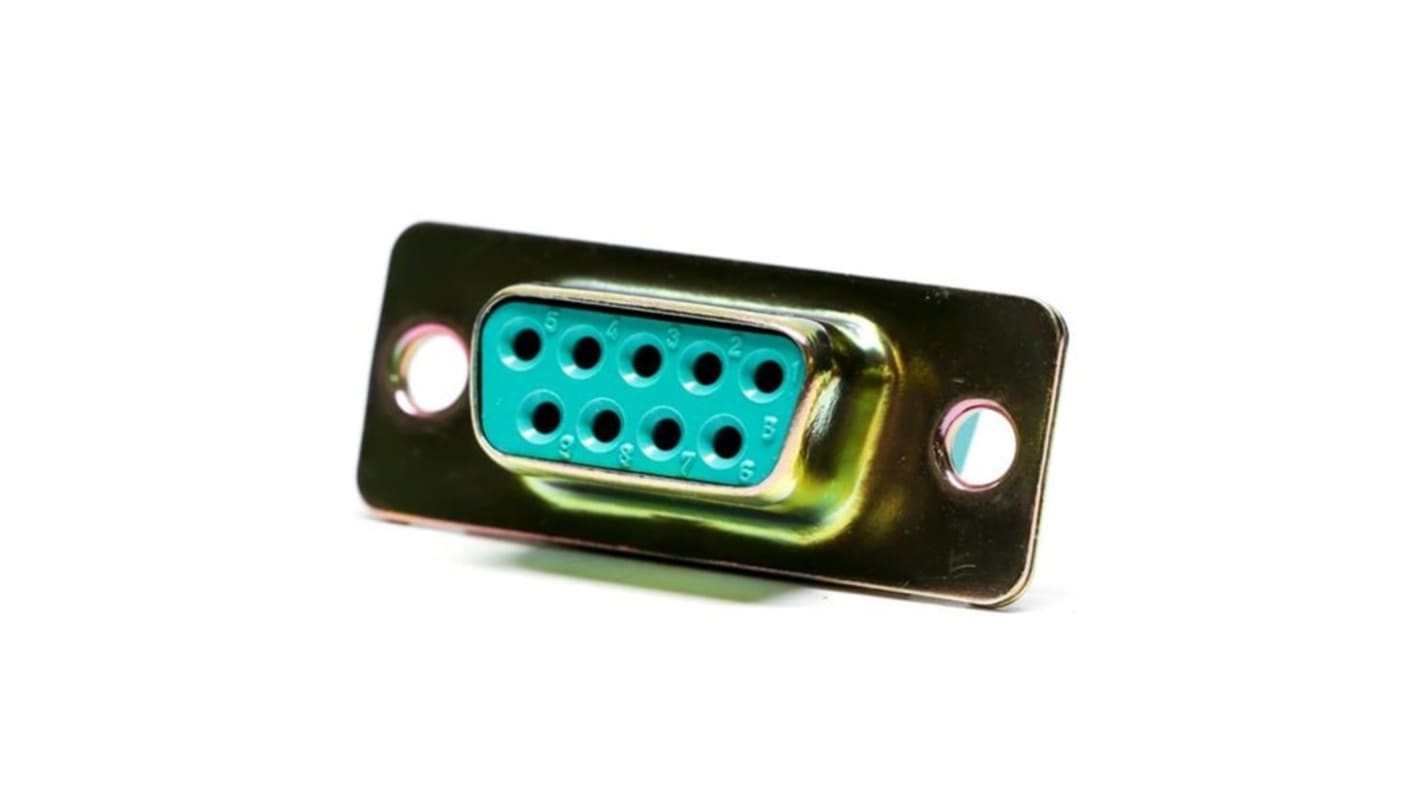

Amphenol India M2000 9 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector, with Panel
- RS-stocknr.:
- 278-4165
- Fabrikantnummer:
- M24308/4-259F
- Fabrikant:
- Amphenol India
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 8,40
(excl. BTW)
€ 10,16
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 78 stuk(s) vanaf 27 april 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 8,40 |
| 5 - 9 | € 7,96 |
| 10 - 24 | € 7,55 |
| 25 - 49 | € 7,18 |
| 50 + | € 6,54 |
*prijsindicatie
- RS-stocknr.:
- 278-4165
- Fabrikantnummer:
- M24308/4-259F
- Fabrikant:
- Amphenol India
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Amphenol India | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 9 | |
| Orientation | Straight | |
| Current | 7.5A | |
| Mount Type | Panel Mount | |
| Mounting Hardware | Panel | |
| D-Sub Shell Size | 50 | |
| Housing Material | Thermoplastic Polyester, Steel | |
| Voltage | 1000Vrms | |
| Minimum Operating Temperature | -55°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Series | M2000 | |
| Contact Plating | Gold Plated | |
| Contact Material | Copper Alloy | |
| Pitch | 2.77mm | |
| Alles selecteren | ||
|---|---|---|
Merk Amphenol India | ||
Product Type D-Sub Connector | ||
Number of Contacts 9 | ||
Orientation Straight | ||
Current 7.5A | ||
Mount Type Panel Mount | ||
Mounting Hardware Panel | ||
D-Sub Shell Size 50 | ||
Housing Material Thermoplastic Polyester, Steel | ||
Voltage 1000Vrms | ||
Minimum Operating Temperature -55°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Series M2000 | ||
Contact Plating Gold Plated | ||
Contact Material Copper Alloy | ||
Pitch 2.77mm | ||
Niet conform
- Land van herkomst:
- IN
The Amphenol M2000 Series D-Sub Connectors are subminiature rack and panel type mounting with polarized shell. It has pin or socket machined contacts which provide high reliability and density for the connectors. They are used in variety of applications due to its versatile design where weight and dimensions are constraint factor.
Used in military, aerospace, industrial, information system, communication system applications
MIL Qualified and listed in QPL
Meets the requirement of MIL-DTL-24308
