- RS-stocknr.:
- 202-0771
- Fabrikantnummer:
- L12-100-210-6-R
- Fabrikant:
- Actuonix
3 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
3 op voorraad - levertijd is 3 à 5 werkdagen (UK-voorraad)
Toegevoegd
Prijs Per stuk
€ 130,50
(excl. BTW)
€ 157,90
(incl. BTW)
Aantal stuks | Per stuk |
1 - 4 | € 130,50 |
5 - 9 | € 125,29 |
10 + | € 120,06 |
- RS-stocknr.:
- 202-0771
- Fabrikantnummer:
- L12-100-210-6-R
- Fabrikant:
- Actuonix
Datasheets
Wetgeving en compliance
- Land van herkomst:
- CN
Productomschrijving

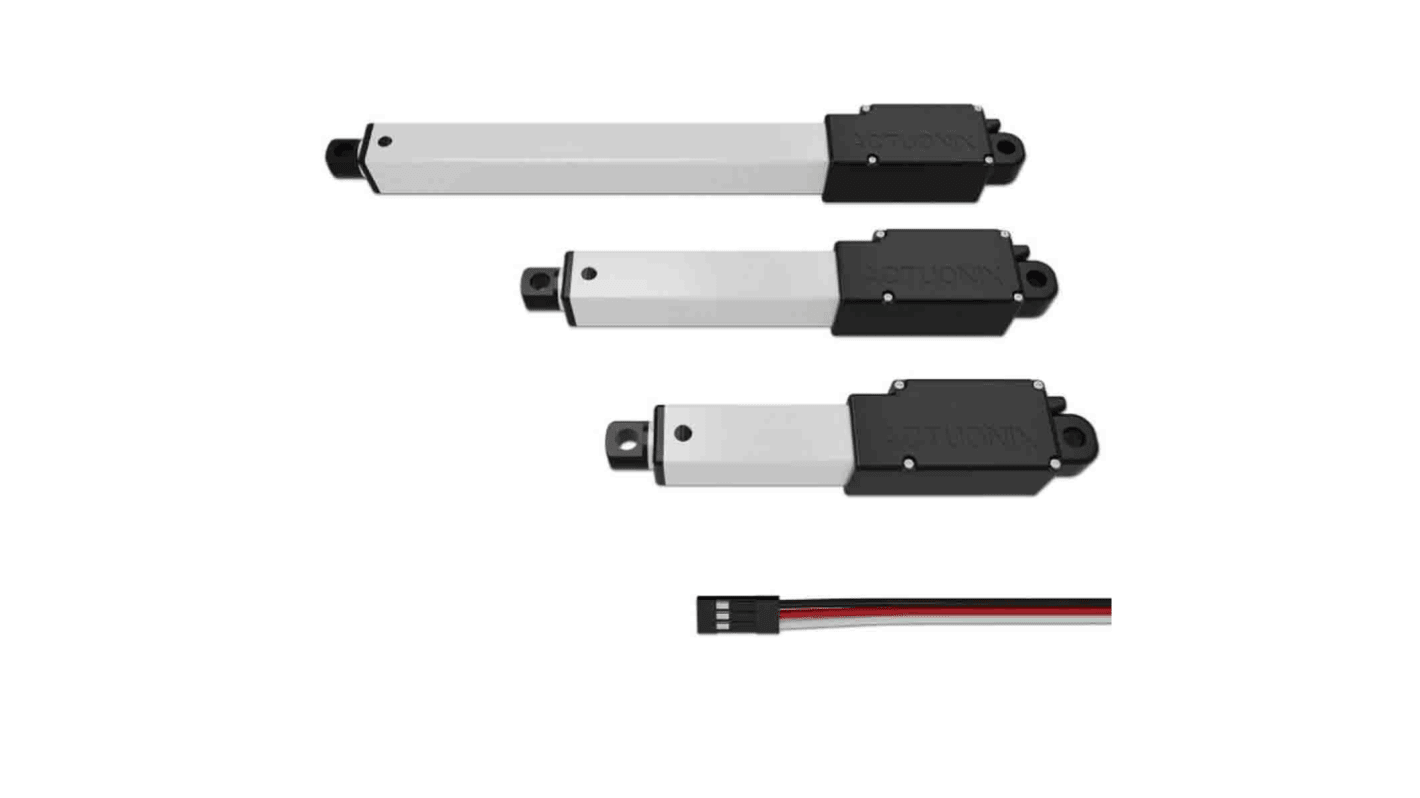

The Actuonix L12-R series micro linear actuator is an axial design that utilizes a powerful PMDC motor with 210:1 gearing and a rectangular cross section for increased strength. It is a standard hobby-type remote control digital servo interface (CMOS logi
100mm stroke length
6V unit
6V unit
Specificaties
Kenmerk | Waarde |
---|---|
Actuator Type | Micro Linear Actuator |
Maximum Stroke Length | 100mm |
Input Voltage | 6V dc |
Series | L12 |
Maximum Speed No Load | 6.5mm/s |
Maximum Force Lifting | 80N |
Duty Cycle | 20% |
