Festo 75 mm, 3240N, 8083816 24V dc 250mm/s

Bekijk deze categorie

Subtotaal (1 eenheid)*

€ 1.133,45

(excl. BTW)

€ 1.371,47

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Voorradig bij de fabrikant
  • Klaar voor verzending vanaf 25 mei 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 1.133,45

*prijsindicatie

RS-stocknr.:
203-9775
Artikelnummer Distrelec:
301-86-867
Fabrikantnummer:
EGSS-BS-KF-45-75-10P-ST-M-H1-PLK-AA
Fabrikant:
Festo
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Festo

Product Type

Electrical Linear Actuator

Maximum Load

3240N

Stroke Length

75mm

Maximum Speed

250mm/s

Series

EGSS

Voltage

24V dc

Motor Technology

Stepper Motor

Duty Cycle

100%

Maximum Force

1314N

IP Rating

IP40

Minimum Operating Temperature

0°C

Spindle Type

Ball Screw

Overall Length Closed

45mm

Maximum Operating Temperature

50°C

Weight

1709g

Standards/Approvals

CE mark (see ) to EU for EMC in accordance with EU RoHS, KC mark, RCM mark, KCEMV

Land van herkomst:
DE

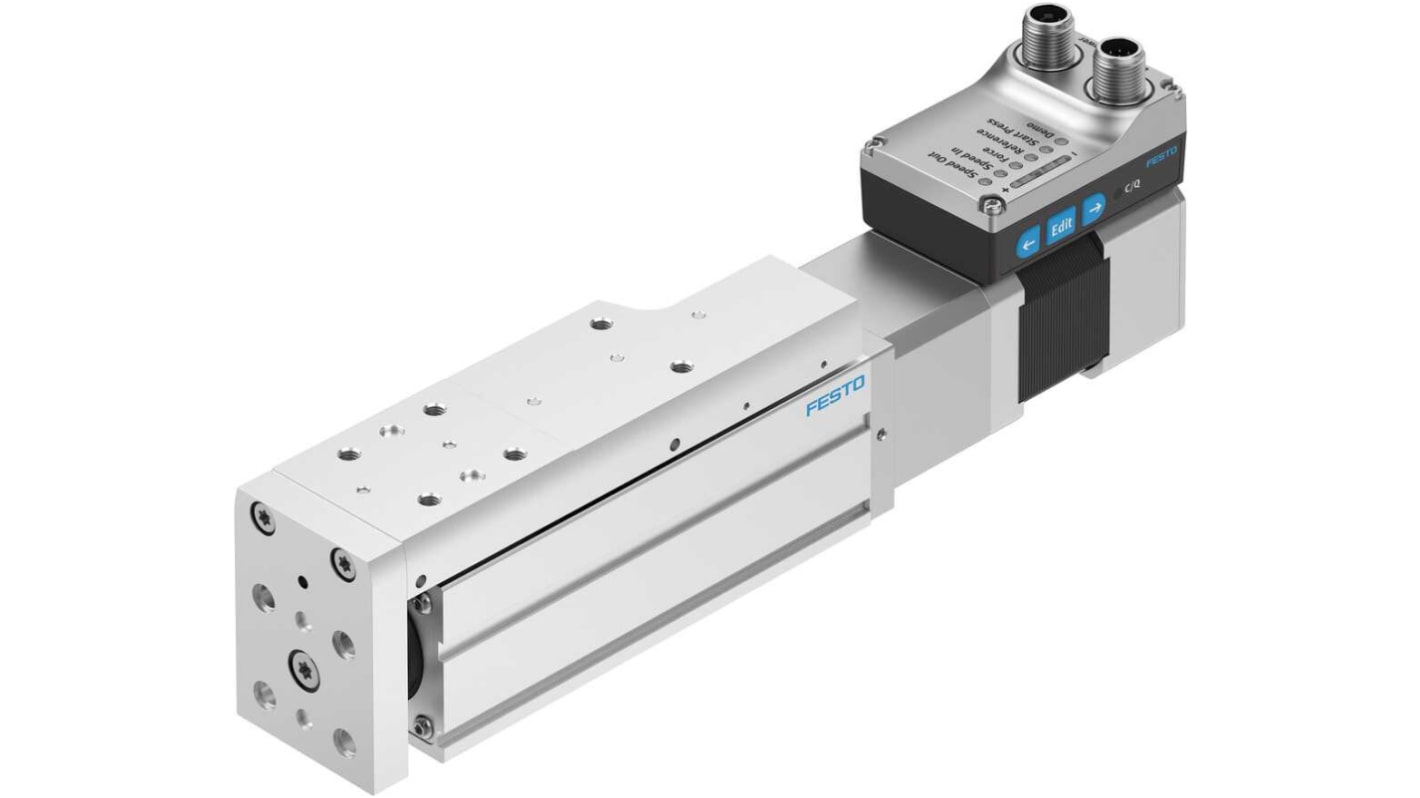

Festo EGSS Series Electrical Linear Actuator, 75mm Stroke Length, 1314N Maximum Force - EGSS-BS-KF-45-75-10P-ST-M-H1-PLK-AA, Numeric Part Number:8083816


This electrical linear actuator provides controlled linear motion for industrial automation and machine integration, driven by a stepper motor and designed for continuous operation in moderate ambient conditions. It converts rotary drive into axial movement via a ball screw, delivering precise displacement over a Compact stroke while operating from a 24V DC supply.

Features and Benefits:


• 100% duty cycle enables continuous operation for long tasks
• 1314 N maximum force supports high-load positioning demands
• 250 mm/s Peak speed allows Rapid actuation for throughput gains
• Ball-screw drive affords accurate repeatable motion under load
• IP40 protection suitable for indoor industrial environments
• 1709 g mass ensures a balance between robustness and compactness

Applications


• Suitable for pick-and-place modules requiring precise travel
• Ideal for assembly fixtures needing sustained cyclic duty
• Used for adjusting optical or sensor alignments in equipment
• Can be used for positioning stages in test rigs and benches
• Used with control systems in robotics for linear actuation tasks

What temperature range can it operate within?


It functions reliably between 0 °C and 50 °C, aligning with typical factory ambient limits.

How much travel is available for integration into Compact systems?


The actuator provides 75mm of usable stroke for linear displacement tasks.

What motor technology is employed and what control advantages does it give?


A stepper motor is used, enabling open-loop microstepping and precise incremental positioning without requiring feedback for many applications.

What electrical supply characteristics are required?


It runs from a 24V DC source and is designed to Interface with common industrial DC drive electronics.
