Festo 150 mm, 13400N, 8083720 24 V dc 240mm/s
- RS-stocknr.:
- 203-9778
- Artikelnummer Distrelec:
- 301-86-870
- Fabrikantnummer:
- EGSS-BS-KF-60-150-12P-ST-M-H1-PLK-AA
- Fabrikant:
- Festo
Subtotaal (1 eenheid)*
€ 1.261,69
(excl. BTW)
€ 1.526,64
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 25 mei 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 1.261,69 |
*prijsindicatie
- RS-stocknr.:
- 203-9778
- Artikelnummer Distrelec:
- 301-86-870
- Fabrikantnummer:
- EGSS-BS-KF-60-150-12P-ST-M-H1-PLK-AA
- Fabrikant:
- Festo
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Festo | |
| Product Type | Electrical Linear Actuator | |
| Maximum Load | 13400N | |
| Stroke Length | 150mm | |
| Maximum Speed | 240mm/s | |
| Series | EGSS | |
| Motor Technology | Stepper Motor | |
| Maximum Force | 4937N | |
| Duty Cycle | 100% | |
| IP Rating | IP40 | |
| Overall Length Closed | 60mm | |
| Minimum Operating Temperature | 0°C | |
| Spindle Type | Ball Screw | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | CE mark see of ity to EU for EMC in accordance with EU RoHS | |
| Weight | 4160g | |
| Alles selecteren | ||
|---|---|---|
Merk Festo | ||
Product Type Electrical Linear Actuator | ||
Maximum Load 13400N | ||
Stroke Length 150mm | ||
Maximum Speed 240mm/s | ||
Series EGSS | ||
Motor Technology Stepper Motor | ||
Maximum Force 4937N | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Overall Length Closed 60mm | ||
Minimum Operating Temperature 0°C | ||
Spindle Type Ball Screw | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals CE mark see of ity to EU for EMC in accordance with EU RoHS | ||
Weight 4160g | ||
- Land van herkomst:
- DE

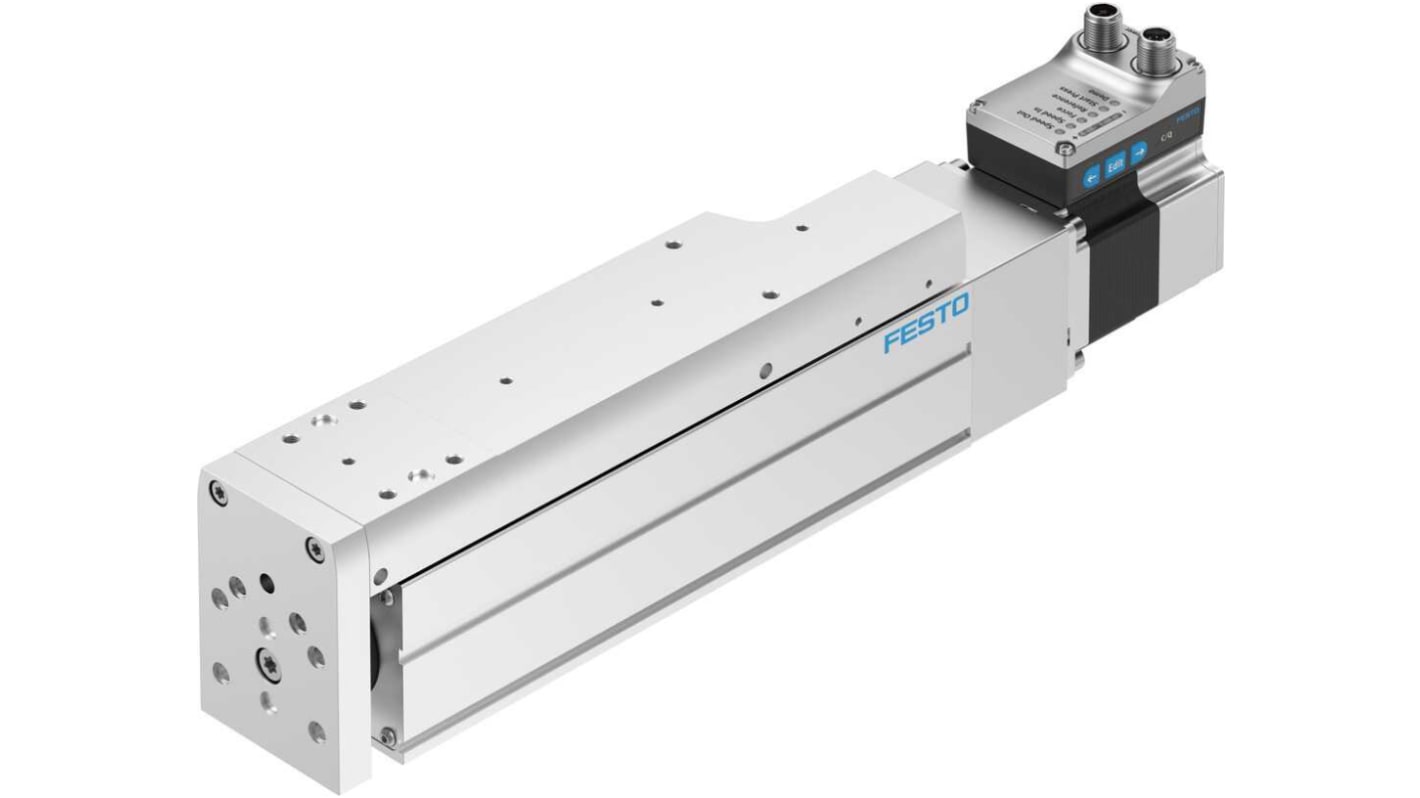

The Festo EGSS series electric mini slide unit contain a integrated stepper motor to produce linear mechanical actuation with ball screw drive. The actuator additionally features a user interface Integrated end-position sensing.
Size = 60
Stroke = 150 mm
Spindle pitch = 12 mm
Assembly position = any
