Moteck Electric Corp, Stroke Length: 300 mm
- RS-stocknr.:
- 283-6217
- Artikelnummer Distrelec:
- 300-96-934
- Fabrikantnummer:
- LD3-12-30-K3-300-C11-HS2-65
- Fabrikant:
- Moteck Electric Corp
Subtotaal (1 eenheid)*
€ 194,36
(excl. BTW)
€ 235,18
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 6 stuk(s) klaar voor verzending
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 194,36 |
*prijsindicatie
- RS-stocknr.:
- 283-6217
- Artikelnummer Distrelec:
- 300-96-934
- Fabrikantnummer:
- LD3-12-30-K3-300-C11-HS2-65
- Fabrikant:
- Moteck Electric Corp
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Moteck Electric Corp | |
| Product Type | Electrical Linear Actuator | |
| Standards/Approvals | Electromagnetic Compatibility Directive 2014/30/EU, CE, EN60601, Medical Device Directive 93/42/EEC | |
| Contents | Quiet Version (LD3Q), Medical Version (LD3M), Mounting Bracket (MB22), Actuator LD3, Clamp Connection, Analog Positioning Feedback With Potentiometer (POT), Positioning Signal Feedback With Hall Effect Sensor | |
| Stroke Length | 300mm | |
| Alles selecteren | ||
|---|---|---|
Merk Moteck Electric Corp | ||
Product Type Electrical Linear Actuator | ||
Standards/Approvals Electromagnetic Compatibility Directive 2014/30/EU, CE, EN60601, Medical Device Directive 93/42/EEC | ||
Contents Quiet Version (LD3Q), Medical Version (LD3M), Mounting Bracket (MB22), Actuator LD3, Clamp Connection, Analog Positioning Feedback With Potentiometer (POT), Positioning Signal Feedback With Hall Effect Sensor | ||
Stroke Length 300mm | ||
- Land van herkomst:
- TW

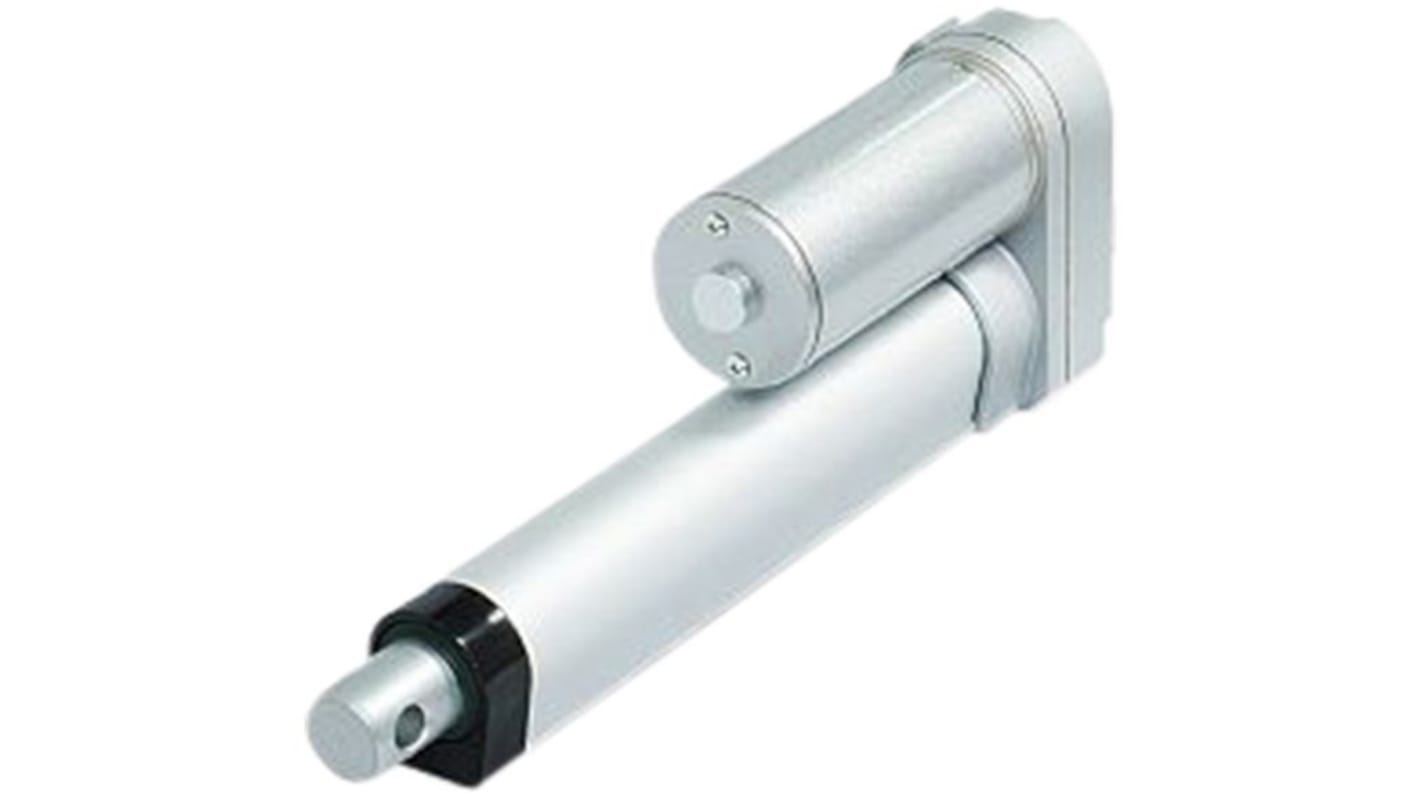

The compact and versatile actuator suitable for a wide range of applications. Designed with a compact design, it is ideal for situations where installation space is limited. With its maximum load capacity of 1000N (Push / Pull) and static load capacity of 2500N (Push / Pull), this actuator offers great performance. It operates at an input voltage of 12V DC / 24V DC and has a typical speed of 43.9 mm/sec at no load and 5.5 mm/sec at full load (1000N load). The is certified with CE Marking and meets the requirements of Electromagnetic Compatibility Directive 2014/30/EU. It is also compliant with the Medical Device Directive 93/42/EEC, making it suitable for medical applications.
Available in various stroke lengths 50 / 100 / 150 / 200 / 250 / 300 mm
Pre-set limit switches for easy installation and operation
Certified with CE Marking and compliant with Electromagnetic Compatibility Directive 2014/30/EU
Compliant with the Medical Device Directive 93/42/EEC for medical applications
