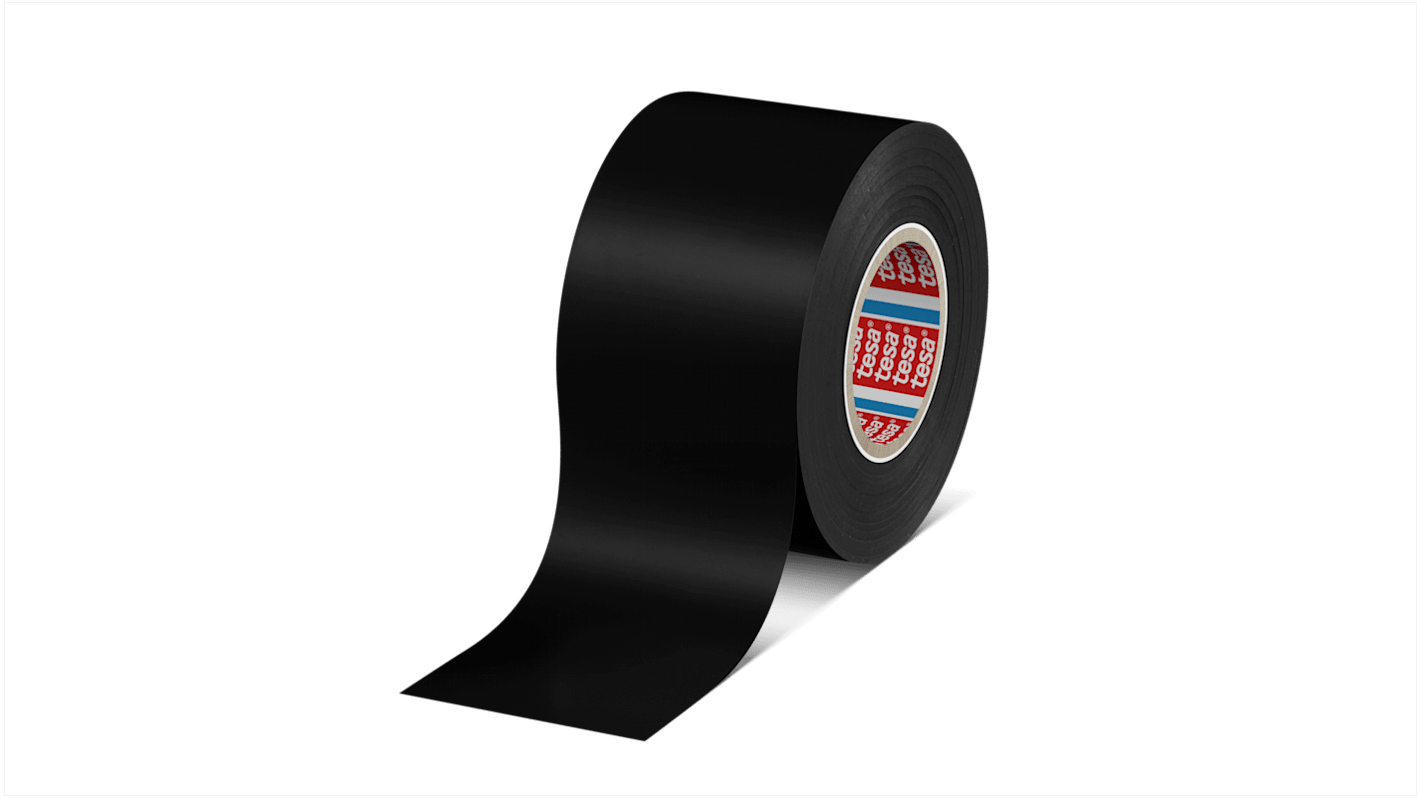

Tesa 4163 Black Polyvinyl Chloride Insulating Tape, 50mm x 33 m

RS-stocknr.:: 249-8464
Fabrikantnummer:: 04163-00006-08
Fabrikant:: Tesa

Tesa 4163 Black Polyvinyl Chloride Insulating Tape, 50mm x 33 m

Subtotaal (1 verpakking van 3 eenheden)*

€ 45,45

(excl. BTW)

€ 54,99

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

42 stuk(s) klaar voor verzending
60 stuk(s) klaar voor verzending vanaf een andere locatie

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk	Per verpakking*
3 +	€ 15,15	€ 45,45

*prijsindicatie

RS-stocknr.:: 249-8464
Fabrikantnummer:: 04163-00006-08
Fabrikant:: Tesa

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Tesa
	Breakdown Voltage	7000V
	Product Type	Insulating Tape
	Colour	Black
	Width	50mm
	Length	33m
	Backing Material	Polyvinyl Chloride
	Thickness	126μm
	Maximum Operating Temperature	105°C
	Trade Name	4163
	Adhesive Material	Acrylic
	Adhesion Strength	1.8N/cm
	Standards/Approvals	DIN EN 60454-2, UL510, US 302
	Tensile Strength	30N/cm

	Alles selecteren
	Merk Tesa
	Breakdown Voltage 7000V
	Product Type Insulating Tape
	Colour Black
	Width 50mm
	Length 33m
	Backing Material Polyvinyl Chloride
	Thickness 126μm
	Maximum Operating Temperature 105°C
	Trade Name 4163
	Adhesive Material Acrylic
	Adhesion Strength 1.8N/cm
	Standards/Approvals DIN EN 60454-2, UL510, US 302
	Tensile Strength 30N/cm

Datasheet - 04163-00006-08

Vrijgesteld

Land van herkomst:: IT

TESA Insulating Tape, 50mm Width, 33m Length - 04163-00006-08

This insulating tape provides electrical insulation and mechanical protection for wiring and cable joints in industrial and maintenance environments. It combines a PVC backing with an acrylic adhesive to deliver a thin, flexible layer of insulation suitable for wrapping and repair tasks where a Compact profile and electrical separation are required.

Features and Benefits:

• 126μm thickness gives a low-profile wrap for confined spaces
• 7000V breakdown voltage ensures high-voltage separation capability
• 30N/cm tensile strength resists tearing during application
• 1.8N/cm adhesion secures layers without excessive residue
• Acrylic adhesive offers stable bonding across a range of temperatures

Applications

• Suitable for insulating splices and terminations on electrical cables
• Ideal for bundling wiring runs in control panels
• Used for maintenance repairs in industrial electrical equipment
• Can be used for colourless protective covering on terminals
• Used with hand tools for quick on-site electrical fixes

What materials compose the tape structure?

The tape uses a polyvinyl chloride backing with an acrylic-based adhesive.

How does its thin profile affect installation on tight runs?

At 126μm it provides close conformability, allowing neat wrapping around bends and through confined channels.

Which approvals indicate compatibility with regulatory testing?

It holds approvals under DIN EN 60454-2, UL510 and US 302.

What performance metric indicates resistance to mechanical stretch?

Tensile capacity is specified as 30N/cm, reflecting its resistance to elongation and tear during handling.

How does the electrical insulation rating translate to practical use?

The rated breakdown at 7000V indicates the tape’s capacity to withstand substantial voltage differentials in insulation applications.
