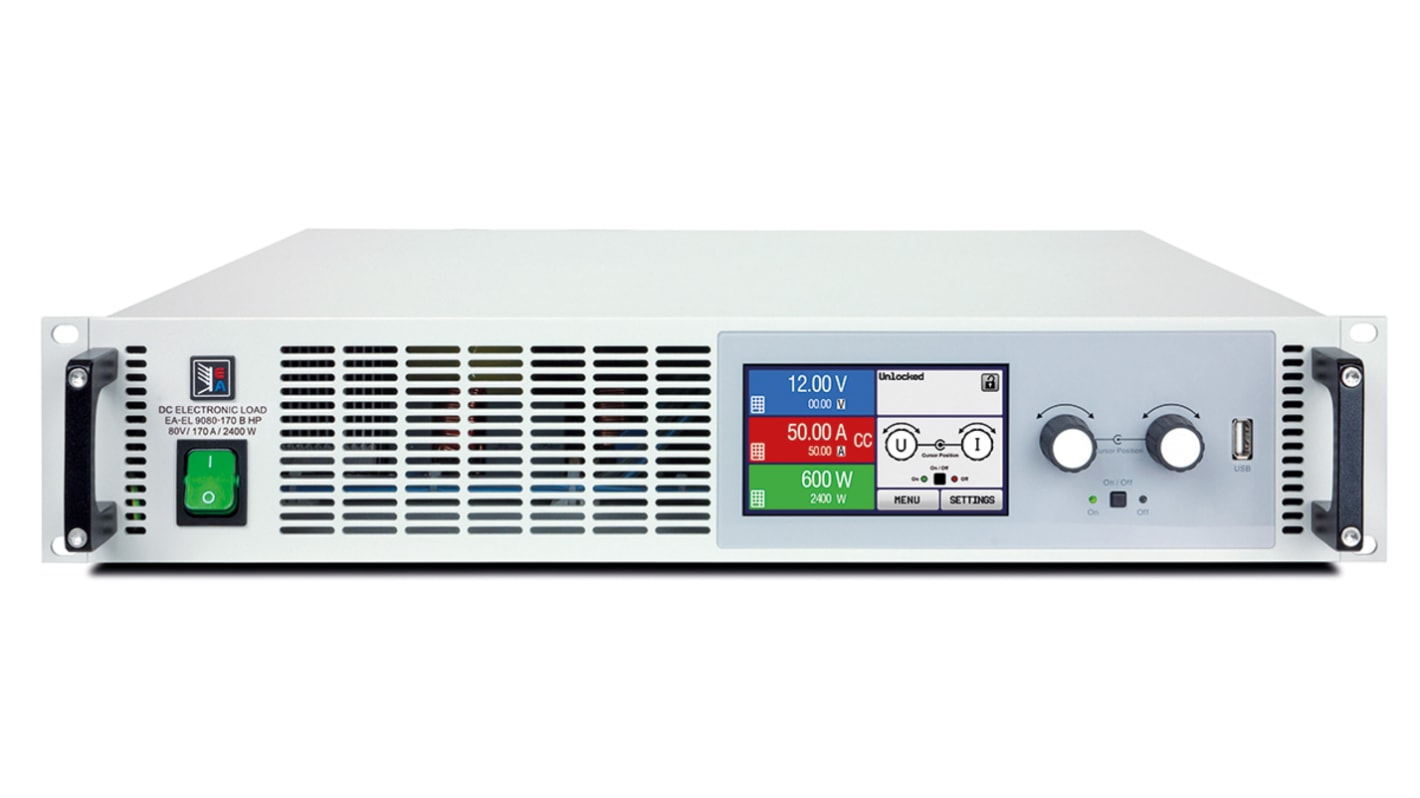

EA Elektro-Automatik EL 9000 B HP Series Electronic DC Load, 0 → 600 W, 0 → 750 V, 0 → 10 A
- RS-stocknr.:
- 138-6121
- Fabrikantnummer:
- EA-EL 9750-10 B HP 2U
- Fabrikant:
- EA Elektro-Automatik
Momenteel niet beschikbaar
We weten niet of dit item nog op voorraad komt, RS is van plan dit binnenkort uit ons assortiment te halen.
Alternatief
Dit product is momenteel niet beschikbaar. Hierbij onze aanbeveling voor een alternatief product.
Per stuk
€ 4.292,50
(excl. BTW)
€ 5.193,92
(incl. BTW)
- RS-stocknr.:
- 138-6121
- Fabrikantnummer:
- EA-EL 9750-10 B HP 2U
- Fabrikant:
- EA Elektro-Automatik
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | EA Elektro-Automatik | |
| Series | EL 9000 B HP | |
| Load Type | Programmable | |
| Constant Voltage Mode Range | 0 → 750 V | |
| Constant Current Mode Range | 0 → 10 A | |
| Constant Resistance Mode Range | 6 → 2500 Ω | |
| Constant Wattage Mode Range | 0 → 600 W | |
| Rack Units | 2 U | |
| Alles selecteren | ||
|---|---|---|
Merk EA Elektro-Automatik | ||
Series EL 9000 B HP | ||
Load Type Programmable | ||
Constant Voltage Mode Range 0 → 750 V | ||
Constant Current Mode Range 0 → 10 A | ||
Constant Resistance Mode Range 6 → 2500 Ω | ||
Constant Wattage Mode Range 0 → 600 W | ||
Rack Units 2 U | ||
- Land van herkomst:
- DE
EL 9000 B HP Series
The electronic DC loads series EA-EL 9000 B HP replace the current EA-EL 9000 HP series. They reduce the required unit height from 3U to 2U. Meaning, the steady power of 7200 W of a former EA-EL 9000 HP device can already be achieved in 6U of height where it required 9U before. The result is a space saving of 33% which allows for achieving even more power in a 19" cabinet.
All models support the four common regulation modes constant voltage (CV), constant current (CC), constant power (CP) and constant resistance (CR). The FPGA-based control circuit provides interesting features, such as a function generator with a table-based function for the simulation of nonlinear internal resistances.
Features and Benefits
• Power Ratings: 0 to 600 W up to 0 to 2400 W
• Input Voltages: 0 to 80 V up to 0 to 750 V
• Input Currents: Up to 170 A per unit
• FPGA-based control circuit
• Multilingual colour touch panel
• User profiles, true function generator
• Adjustable Protections: OVP, OCP, OPP
• Operation Modes: CV, CC, CP, CR
• Galvanically isolated interfaces (analogue and USB)
• Master-slave bus for parallel connection
• Optional: Digital, plug and play interfaces
• SCPI and Modbus RTU supported
• LabView VIs and remote control software (Windows)
