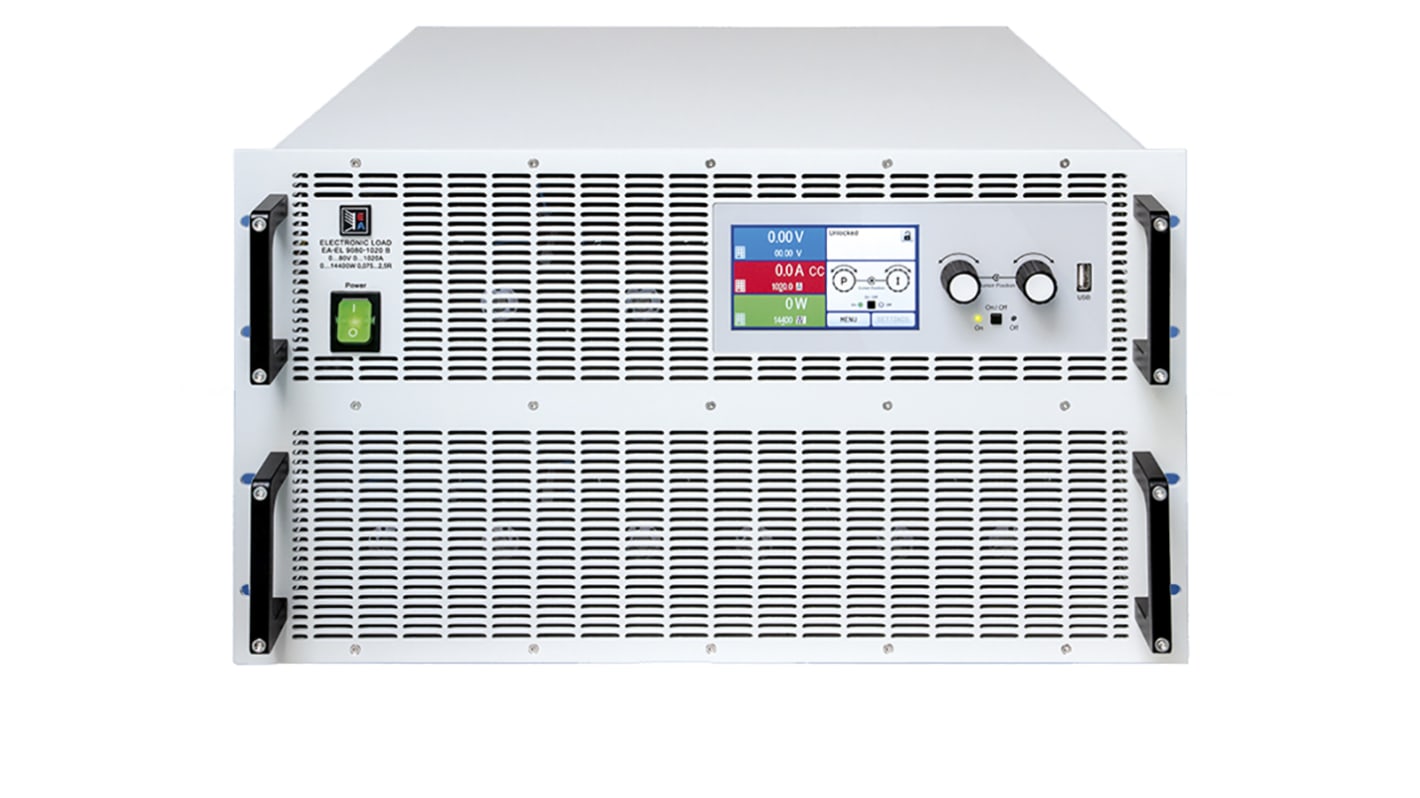

EA Elektro-Automatik EA-EL 9000 B Series Electronic Load, 0 to 7200 W, 0/500 V, 0 to 180 A

Bekijk alle Electronic Loads

Subtotaal (1 eenheid)*

€ 14.342,00

(excl. BTW)

€ 17.353,82

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Laatste voorraad RS
  • Laatste 1 stuk(s), klaar voor verzending
Aantal stuks
Per stuk
1 +€ 14.342,00

*prijsindicatie

RS-stocknr.:
184-5647
Fabrikantnummer:
EA-EL 9500-180 B 6U
Fabrikant:
EA Elektro-Automatik
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

EA Elektro-Automatik

Product Type

Electronic Load

Series

EA-EL 9000 B

Load Type

Programmable

Constant Voltage Mode Range

0/500 V

Constant Current Mode Range

0 to 180 A

Constant Resistance Mode Range

0.25 to 88 Ω

Constant Wattage Mode Range

0 to 7200 W

Interface Type

USB, RS232, Ethernet

Rack Unit

6U

Operating Modes

Constant Current, Constant Voltage, Constant Power, Constant Resistance

Standards/Approvals

RoHS

Land van herkomst:
DE
The new series of compact electronic DC loads, called EA-EL 9000 B, replaces the former series EA-EL 9000 A and offers new voltage, current and power ratings for a multitude of applications. All models support the four common regulation modes constant voltage (CV), constant current (CC), constant power (CP) and constant resistance (CR). The FPGA based control circuit provides interesting features, such as a function generator with a table based function for the simulation of non-linear internal resistances.

Input power ratings: 1.2 kW...14.4 kW, expandable in cabinets up to 72 kW

Input voltages: 0...80 V up to 0...750 V

Input currents: up to 1020 A per unit

FPGA based control circuit

Multilingual colour touch panel

User profiles, true function generator

Adjustable protections: OVP, OCP, OPP

Operation modes: CV, CC, CP, CR

Galvanically isolated interfaces (Analogue and USB)

Master-slave bus for parallel connection

SCPI & ModBus RTU supported

LabView VIs and remote control software (Windows)
