Phoenix Contact VS, 5 m Cat6 Ethernet Cable, Blue, Shielded 8 Screened Polyurethane Sheath
- RS-stocknr.:
- 253-2302
- Fabrikantnummer:
- 1415403
- Fabrikant:
- Phoenix Contact
Subtotaal (1 eenheid)*
€ 80,09
(excl. BTW)
€ 96,91
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 75,00
Tijdelijk niet op voorraad
- Verzending vanaf 30 maart 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 80,09 |
*prijsindicatie
- RS-stocknr.:
- 253-2302
- Fabrikantnummer:
- 1415403
- Fabrikant:
- Phoenix Contact
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Phoenix Contact | |
| Series | VS | |
| Product Type | Ethernet Cable | |
| Cable Length | 5m | |
| LAN Category | Cat6 | |
| Shield Type | Shielded | |
| Sub Type | Ethernet | |
| Screened/Unscreened | Screened | |
| Conductor Type | Stranded | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Blue | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | IEC PAS 61076-3-117 | |
| Core Strands | 7 | |
| Fire Behaviour | Flammability rating according to UL 94 V2 | |
| Conductor Material | Bare Copper Wire | |
| Number of Cores | 8 | |
| Voltage | 100 V | |
| Cross Sectional Area | 26 AWG | |
| Outside Diameter | 6.7 mm | |
| Alles selecteren | ||
|---|---|---|
Merk Phoenix Contact | ||
Series VS | ||
Product Type Ethernet Cable | ||
Cable Length 5m | ||
LAN Category Cat6 | ||
Shield Type Shielded | ||
Sub Type Ethernet | ||
Screened/Unscreened Screened | ||
Conductor Type Stranded | ||
Jacket Material Polyurethane | ||
Jacket Colour Blue | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals IEC PAS 61076-3-117 | ||
Core Strands 7 | ||
Fire Behaviour Flammability rating according to UL 94 V2 | ||
Conductor Material Bare Copper Wire | ||
Number of Cores 8 | ||
Voltage 100 V | ||
Cross Sectional Area 26 AWG | ||
Outside Diameter 6.7 mm | ||
- Land van herkomst:
- PL

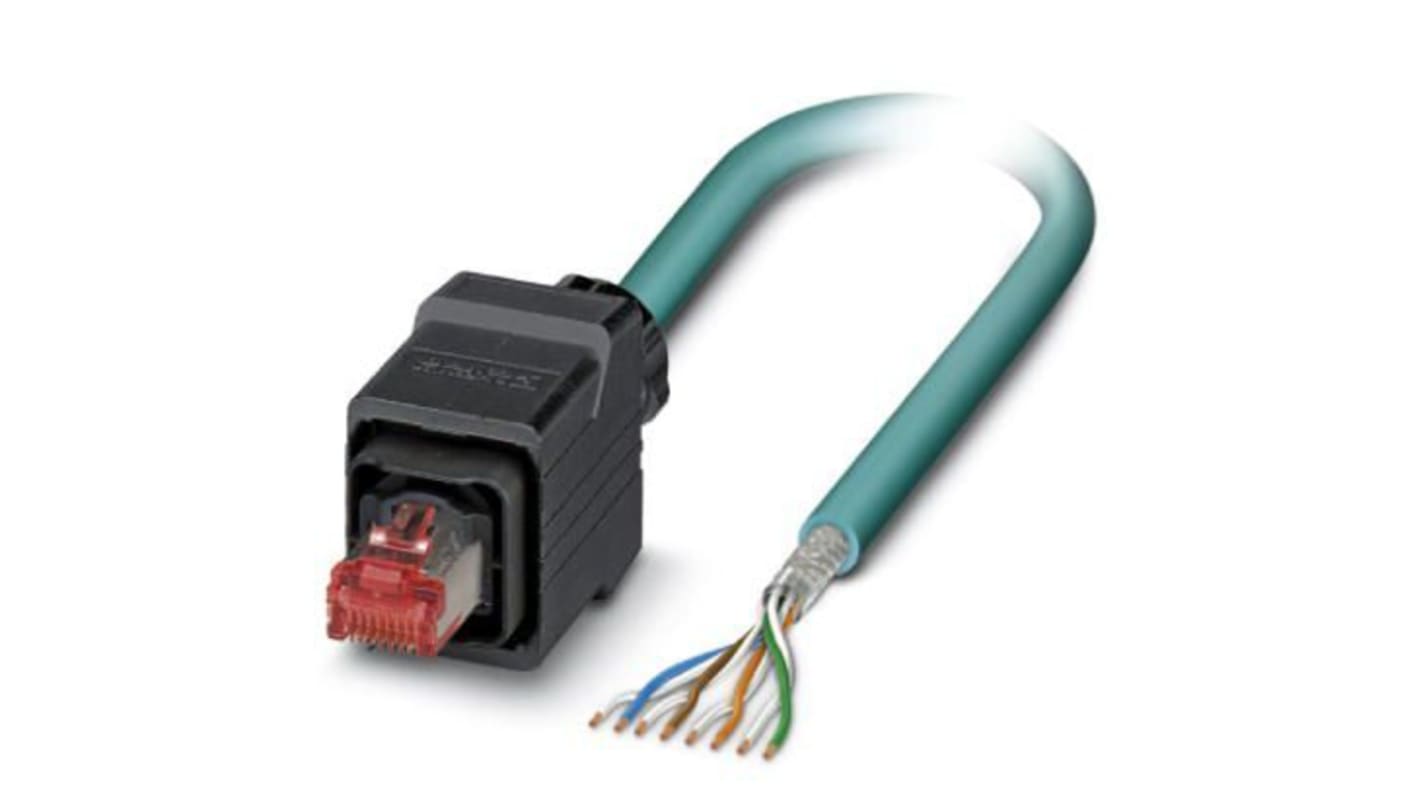

The Phoenix Contact patch cable has 8 number of positions and RJ45 connection profile. It is halogen free and is flame resistance.
Shield Type S/FTP
