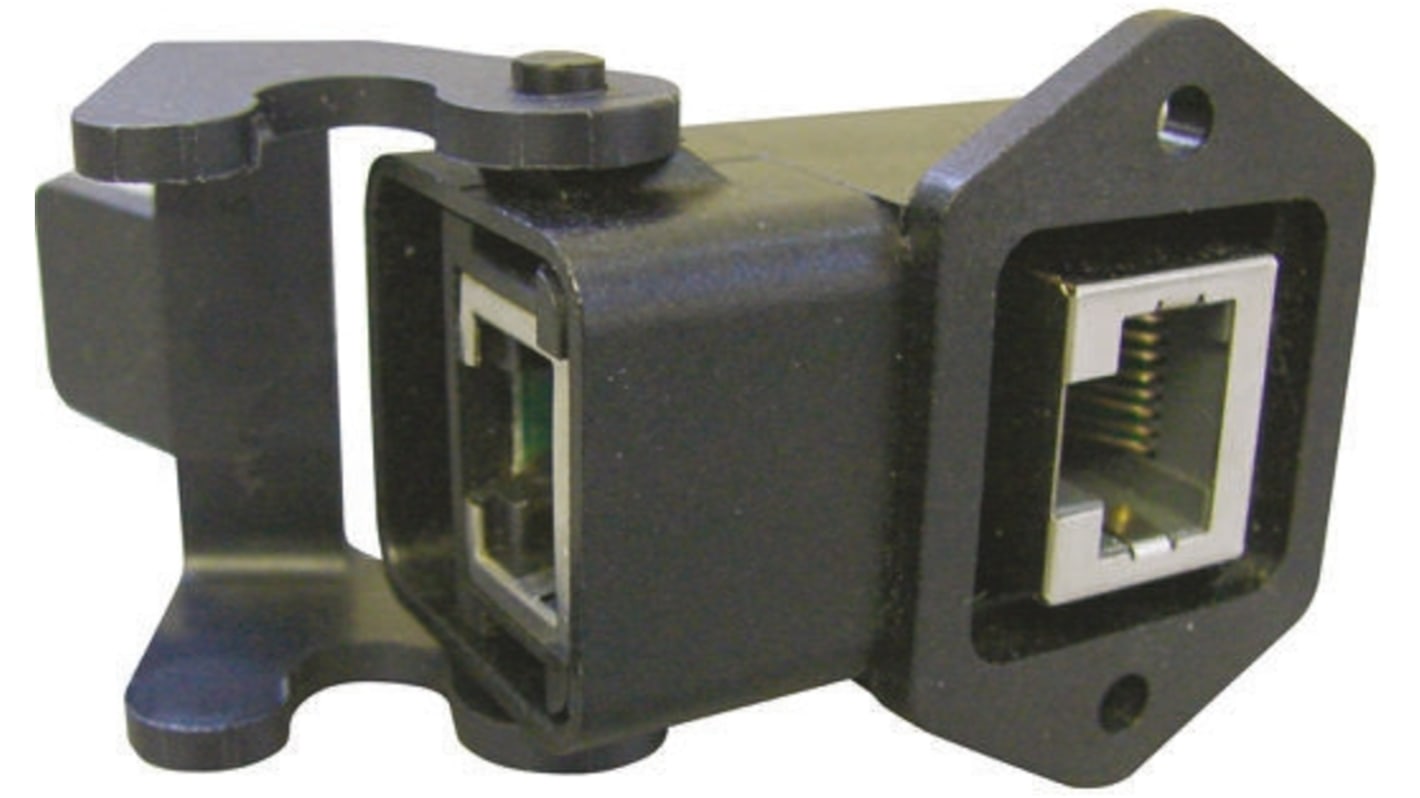

HARTING 09452 Series RJ45 Connector Female, Feed Through, Cat5 Shielded Right Angle 1 Port 8 Way
- RS-stocknr.:
- 666-3887
- Fabrikantnummer:
- 09452251108
- Fabrikant:
- HARTING
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 eenheid)*
€ 71,93
(excl. BTW)
€ 87,04
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 11 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 14 | € 71,93 |
| 15 - 49 | € 66,90 |
| 50 + | € 64,01 |
*prijsindicatie
- RS-stocknr.:
- 666-3887
- Fabrikantnummer:
- 09452251108
- Fabrikant:
- HARTING
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | HARTING | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat5 | |
| Mount Type | Feed Through | |
| Number of Ports | 1 | |
| Number of Ways | 8 | |
| Connector Gender | Female | |
| Connector Type | RJ45 | |
| Shield Type | Shielded | |
| Orientation | Right Angle | |
| IP Rating | IP67, IP65 | |
| Termination Type | Screw | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | No | |
| Depth | 40.5mm | |
| Width | 40mm | |
| Series | 09452 | |
| Length | 40mm | |
| Alles selecteren | ||
|---|---|---|
Merk HARTING | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat5 | ||
Mount Type Feed Through | ||
Number of Ports 1 | ||
Number of Ways 8 | ||
Connector Gender Female | ||
Connector Type RJ45 | ||
Shield Type Shielded | ||
Orientation Right Angle | ||
IP Rating IP67, IP65 | ||
Termination Type Screw | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Hazardous Area Certification No | ||
Standards/Approvals No | ||
Depth 40.5mm | ||
Width 40mm | ||
Series 09452 | ||
Length 40mm | ||
Cat5 Han® 3A Panel Feedthough IP67
Brought to you by Harting, these Cat5 RJ45 connector sockets are perfect for various applications which require a secure and trustworthy network connection. They are IP67 rated, ensuring they excel within harsh environments. All models are highly reliable and excellent quality.
Features & Benefits
RJ45 panel feedthrough for control or distributor cabinets;Fully shielded;Coding possible
