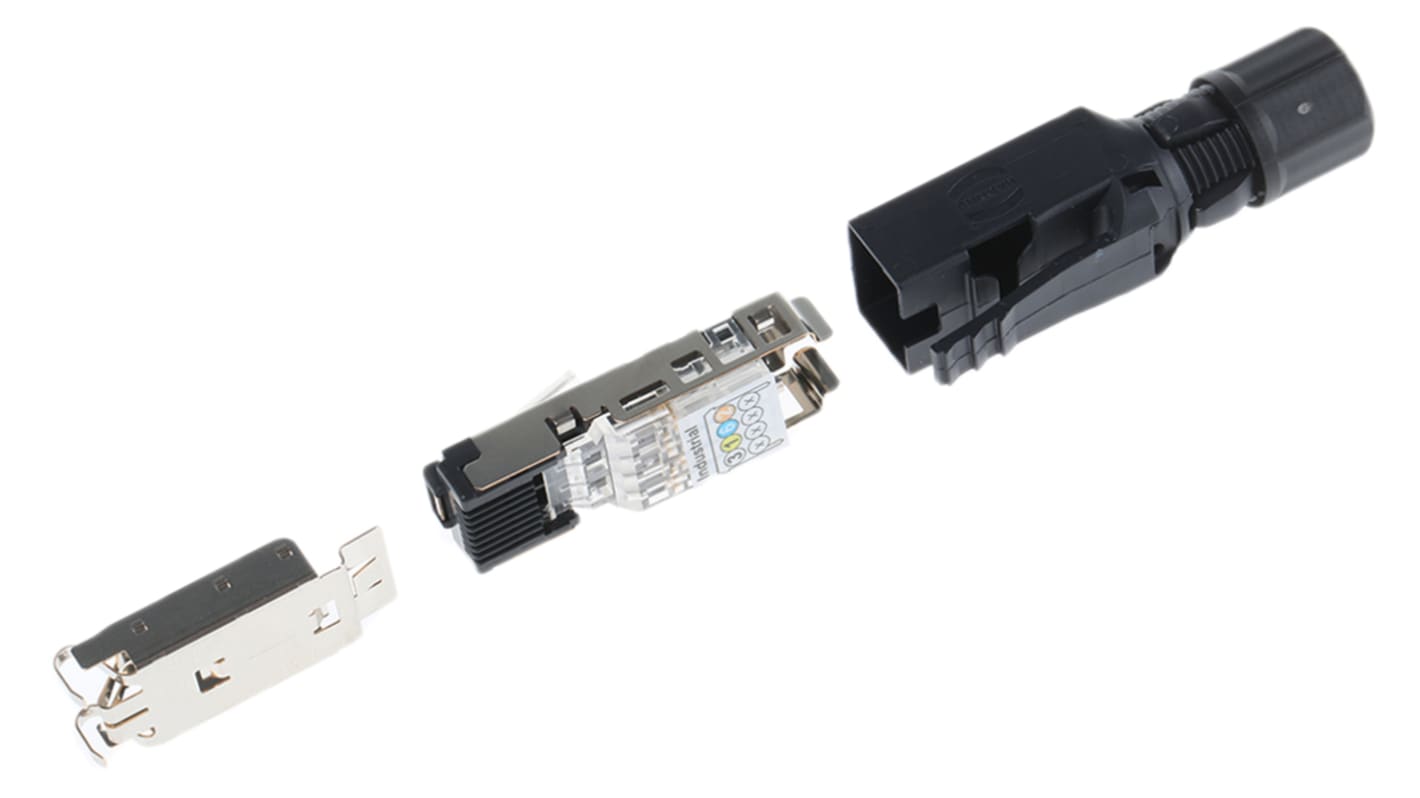

HARTING RJ Industrial Series RJ45 Connector Male, Cable, Cat5 Shielded Straight 1 Port 4 Way

RS-stocknr.:: 765-9078
Artikelnummer Distrelec:: 304-01-787
Fabrikantnummer:: 09451511120
Fabrikant:: HARTING

HARTING RJ Industrial Series RJ45 Connector Male, Cable, Cat5 Shielded Straight 1 Port 4 Way

Bulkkorting beschikbaar

Bekijk bulkkorting

Subtotaal (1 eenheid)*

€ 23,52

(excl. BTW)

€ 28,46

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

13 stuk(s) klaar voor verzending
221 stuk(s) klaar voor verzending vanaf een andere locatie

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 - 9	€ 23,52
10 - 24	€ 19,98
25 - 49	€ 17,63
50 +	€ 16,63

*prijsindicatie

RS-stocknr.:: 765-9078
Artikelnummer Distrelec:: 304-01-787
Fabrikantnummer:: 09451511120
Fabrikant:: HARTING

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	HARTING
	Product Type	RJ45 Connector
	Ethernet Connector Type	RJ45
	LAN Category	Cat5
	Mount Type	Cable
	Number of Ports	1
	Number of Ways	4
	Connector Gender	Male
	Connector Type	Plug
	Shield Type	Shielded
	Magnetic	No
	Orientation	Straight
	IP Rating	IP20
	LED	No
	Termination Type	IDC
	Minimum Operating Temperature	-40°C
	Light Pipes	No
	Maximum Operating Temperature	70°C
	Width	13.7mm
	Length	16.11mm
	Depth	57mm
	Series	RJ Industrial
	Standards/Approvals	DNV GL
	Hazardous Area Certification	No
	Contact Plating	Gold over Nickel

	Alles selecteren
	Merk HARTING
	Product Type RJ45 Connector
	Ethernet Connector Type RJ45
	LAN Category Cat5
	Mount Type Cable
	Number of Ports 1
	Number of Ways 4
	Connector Gender Male
	Connector Type Plug
	Shield Type Shielded
	Magnetic No
	Orientation Straight
	IP Rating IP20
	LED No
	Termination Type IDC
	Minimum Operating Temperature -40°C
	Light Pipes No
	Maximum Operating Temperature 70°C
	Width 13.7mm
	Length 16.11mm
	Depth 57mm
	Series RJ Industrial
	Standards/Approvals DNV GL
	Hazardous Area Certification No
	Contact Plating Gold over Nickel

Land van herkomst:: RO

HARTING RJ Industrial Series RJ45 Connector, Cat5 Transmission Category, IP20 - 09451511120

This RJ45 connector is a shielded, straight plug designed for Ethernet field assembly and industrial data links. It provides four-way connectivity with IDC termination and is engineered for PROFINET and PoE applications. The connector operates across a wide temperature range and is suitable for installations requiring a cable-mounted, male Interface with fully encompassing shielding.

Features and Benefits:

• Cat5 Class D transmission up to 100MHz enhances network bandwidth
• IDC termination for Rapid field assembly and consistent contact
• Fully shielded 360° contact reduces electromagnetic interference
• Rated for -40 to 70°C supports operation in harsh temperatures
• ≥750 mating cycles ensures sustained connection life

Applications

• Suitable for industrial Ethernet Cat5 installations requiring PoE
• Ideal for PROFINET assemblies in control cabinets and panels
• Used with cable-mounted interfaces in field-terminated runs
• Can be used for marine and offshore requiring DNV GL
• Suitable for devices needing a four-way male RJ45 plug

What conductor sizes does it accept?

It accepts 0.1 to 0.32mm² and AWG27/7 to AWG22/7 stranded and AWG27/1 to AWG22/1 solid.

What cable outer diameters are compatible?

Cable diameters from 4.5mm to 9mm are supported for correct assembly.

How is environmental protection specified?

The enclosure meets IP20 degree of protection in accordance with IEC 60529.

Which approvals and standards apply to this connector?

It holds DNV GL approval and complies with EN 45545-2 fire protection requirements.

What materials and flammability ratings are used for the housing?

The hood is polyamide with a UL94V-0 flammability classification.
