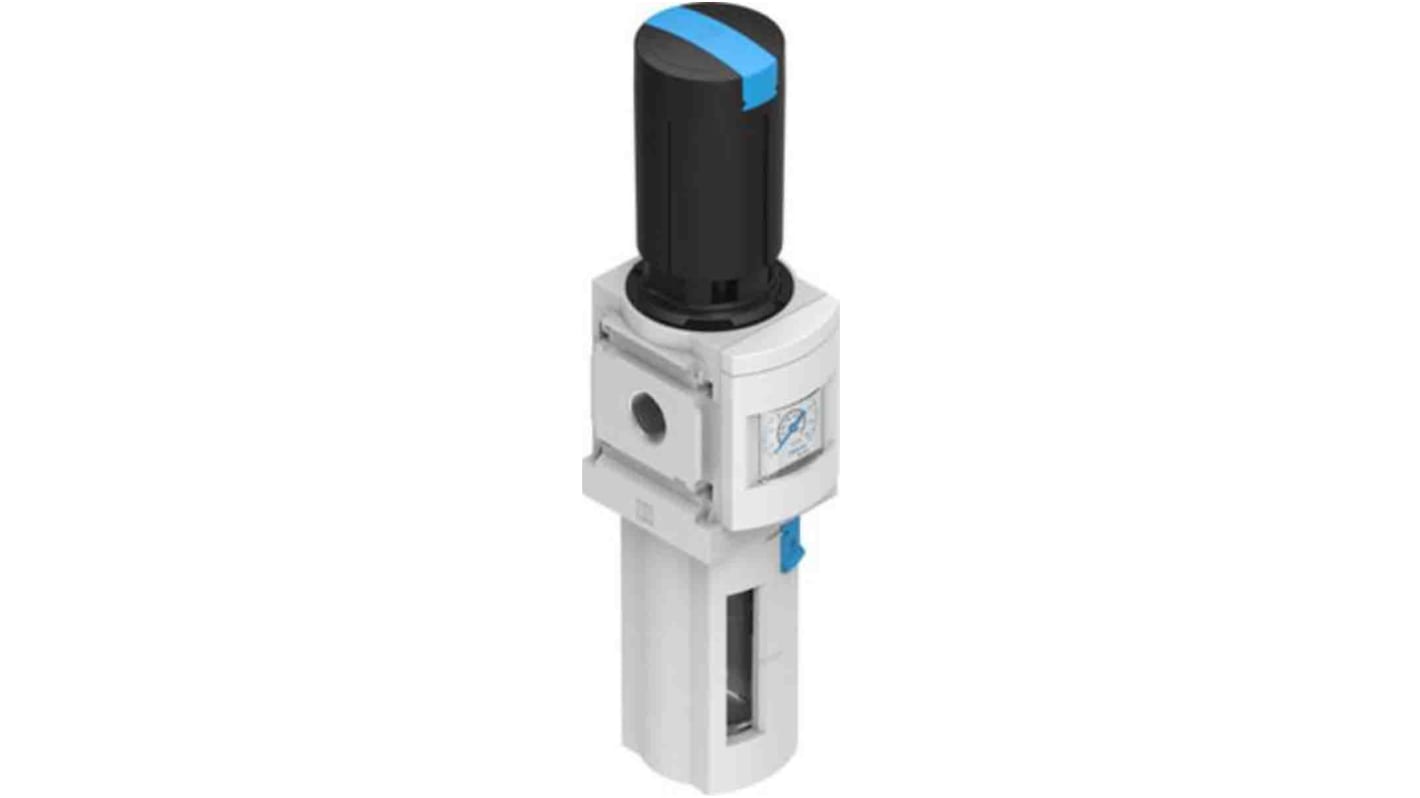

Festo MS Filter Regulator, 40 μm, 1/2 in G, Manual, 20 bar, 529181

RS-stocknr.:: 202-4297
Fabrikantnummer:: MS6-LFR-1/2-D6-ERM-AS-Z
Fabrikant:: Festo

Festo MS Filter Regulator, 40 μm, 1/2 in G, Manual, 20 bar, 529181

Subtotaal (1 eenheid)*

€ 88,57

(excl. BTW)

€ 107,17

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 75,00

Op voorraad

2 stuk(s) klaar voor verzending

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 88,57

*prijsindicatie

RS-stocknr.:: 202-4297
Fabrikantnummer:: MS6-LFR-1/2-D6-ERM-AS-Z
Fabrikant:: Festo

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Festo
	Port Size	1/2 in G
	Product Type	Filter Regulator
	Maximum Operating Pressure	20 bar
	Maximum Flow Rate	6200L/min
	Connection Thread Standard	G
	Series	MS
	Drain Type	Manual
	Filtration Size	40μm
	Pressure Gauge Port Size	1/2 in
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	Conforms to RoHS, ISO8573-1:2010
	Pressure Setting Range	0.3 to 7 bar
	Pressure Gauge Port Thread Standard	G
	Model Number	529181

	Alles selecteren
	Merk Festo
	Port Size 1/2 in G
	Product Type Filter Regulator
	Maximum Operating Pressure 20 bar
	Maximum Flow Rate 6200L/min
	Connection Thread Standard G
	Series MS
	Drain Type Manual
	Filtration Size 40μm
	Pressure Gauge Port Size 1/2 in
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 60°C
	Standards/Approvals Conforms to RoHS, ISO8573-1:2010
	Pressure Setting Range 0.3 to 7 bar
	Pressure Gauge Port Thread Standard G
	Model Number 529181

Land van herkomst:: HU

Festo MS Filter Regulator, 20 Bar Maximum Operating Pressure, 6200 L/min Maximum Flow Rate - MS6-LFR-1/2-D6-ERM-AS-Z, Numeric Part Number:529181

This filter regulator is a pneumatic Air treatment unit designed to condition compressed Air for industrial control systems. It combines particulate removal with pressure control to protect downstream valves, actuators and instrumentation in automation, electronics and mechanical installations. The unit is suited to fixed installation on pneumatic lines where user-adjustable pressure regulation and contaminant separation are required.

Features and Benefits:

• 40 μm element removes fine particles to protect downstream devices
• 0.3–7 bar adjustable range gives flexible pressure control
• 6,200 L/min maximum flow supports high-demand pneumatic loops
• 20 bar pressure rating allows use in elevated-pressure systems
• Polycarbonate bowl provides Visual condensate inspection
• Manual drain enables straightforward moisture removal by operator

Applications

• Suitable for compressed Air supply to factory automation valves
• Ideal for pneumatic control panels in electronics assembly lines
• Used with actuators in mechanical handling systems
• Can be used for instrument Air feeding pressure-sensitive equipment
• Used for Air preparation in test benches requiring regulated flow

What port connection is required to fit this unit into existing pipework?

It connects via G‑threaded ports sized at 1/2 in for both process and gauge ports, matching standard G fittings.

How does temperature affect operational capability?

The unit is rated to operate between −10 °C and 60 °C

outside this range, component materials may not perform as specified.

What standards or certifications relate to Air quality and material restrictions?

It conforms to ISO 8573-1:2010 for particle and moisture handling and meets RoHS material restrictions.

How should condensate be removed during routine maintenance?

The bowl incorporates a manual drain so operators can periodically purge collected water and oil by opening the drain valve.
