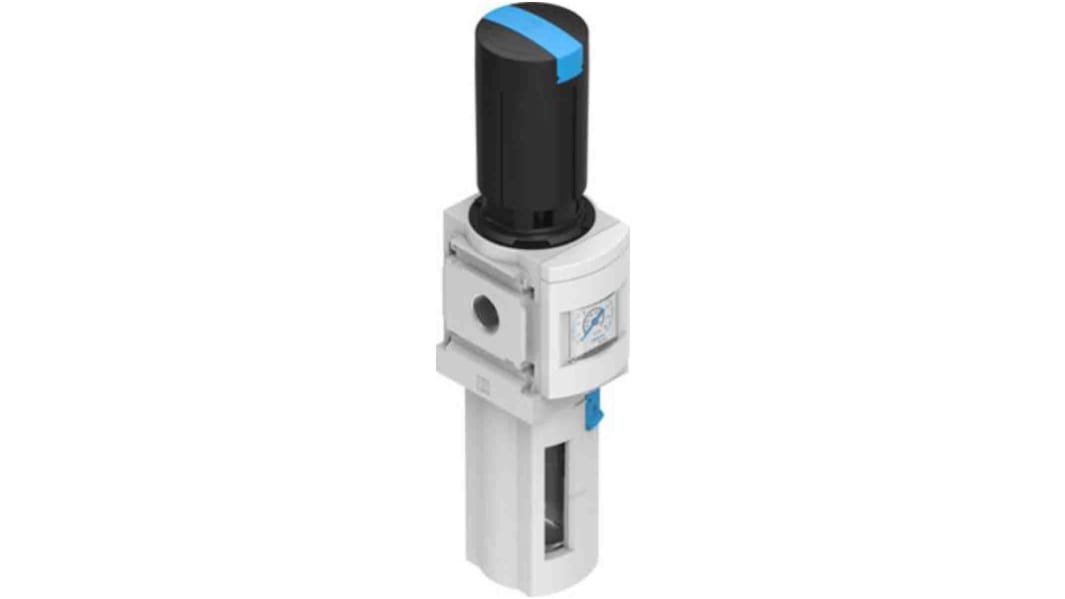

Festo MS Filter Regulator, 5μm, G 1/4, Manual, 20 bar, 529204

RS-stocknr.:: 202-4300
Fabrikantnummer:: MS6-LFR-1/4-D7-CRM-AS
Fabrikant:: Festo

Festo MS Filter Regulator, 5μm, G 1/4, Manual, 20 bar, 529204

1 / 1

Prijs Per stuk**

€ 88,57

(excl. BTW)

€ 107,17

(incl. BTW)

1 op voorraad - levertijd is 1 werkdag(en)*

* Bezorgdata kunnen veranderen afhankelijk van de gekozen hoeveelheid en het bezorgadres.

GRATIS bezorging voor bestellingen vanaf € 75,00

Voorraad checken

Aantal stuks	Per stuk
1 +	€ 88,57

**prijsindicatie

RS-stocknr.:: 202-4300
Fabrikantnummer:: MS6-LFR-1/4-D7-CRM-AS
Fabrikant:: Festo

Festo Series MS Filter Regulator, 20 Bar Maximum Operating Pressure, 5μm Filtration size - MS6-LFR-1/4-D7-CRM-AS, Numeric Part Number: 529204

This filter regulator is designed for managing compressed air and inert gases, ensuring optimal performance within various systems. The product features a manual drain mechanism and a filtration size of 5μm, providing efficient filtration and pressure regulation. With a maximum operating pressure of 20 bar, it is suitable for demanding applications, offering versatility and reliability across a range of industries.

Features & Benefits

• Offers manual condensate drain for easy maintenance
• 5μm filtration ensures clean output air for sensitive applications
• Maximum operating pressure of 20 bar accommodates high-demand environments
• Integrated pressure gauge allows for accurate pressure monitoring
• Suitable for vertical mounting for flexible installation options
• Plastic bowl guard enhances durability against damage and contamination

Applications

• Used for pneumatic systems requiring precise air pressure control
• Suitable for filtration in automation and electronic systems
• Ideal for with compressed air demands to ISO standards
• Utilised in environments where moderate corrosion resistance is needed
• Employed in installations with ambient temperature variations of -10 to +60°C

What is the maximum and minimum operating pressure range for this product?

The device operates within a pressure range of 0.8 bar to 20 bar, ensuring versatility for various applications.

How does the filtration size benefit system performance?

A filtration size of 5μm helps remove impurities from compressed air, protecting downstream equipment from damage and ensuring operational efficiency.

What materials are used in the construction of the bowl and housing?

The bowl is made of plastic to offer durability, while the housing is constructed from die-cast aluminium, providing strength and resistance to corrosion.

Can this regulator be mounted in different orientations?

Yes, it is designed for vertical mounting, allowing for installation flexibility in different configurations.

Kenmerk	Waarde
Port Connection	G 1/4
Maximum Operating Pressure	20 bar
Manufacturer Series	MS
Drain Type	Manual
Filtration Size	5µm
Maximum Ambient Operating Temperature	+60°C
Minimum Process Operating Temperature	-10°C
Minimum Operating Pressure	0.8bar
Ambient Operating Temperature Range	-10 → +60°C
Maximum Process Operating Temperature	+60°C
Minimum Ambient Operating Temperature	-10°C
Model Number	529204
Bowl Material	Plastic
Process Operating Temperature Range	-10 → +60°C
