Festo MS Filter Regulator, 40 μm, 1/4 in G, Manual, 10 bar, 8098254

RS-stocknr.:: 253-9222
Artikelnummer Distrelec:: 302-64-028
Fabrikantnummer:: MS4-LFR-1/4-D6-E-P-M-AG-MPA-B
Fabrikant:: Festo

Festo MS Filter Regulator, 40 μm, 1/4 in G, Manual, 10 bar, 8098254

Subtotaal (1 eenheid)*

€ 58,93

(excl. BTW)

€ 71,31

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

Plus verzending 15 stuk(s) vanaf 28 september 2026
Plus verzending 6 stuk(s) vanaf 28 september 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 58,93

*prijsindicatie

RS-stocknr.:: 253-9222
Artikelnummer Distrelec:: 302-64-028
Fabrikantnummer:: MS4-LFR-1/4-D6-E-P-M-AG-MPA-B
Fabrikant:: Festo

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Festo
	Port Size	1/4 in G
	Product Type	Filter Regulator
	Maximum Operating Pressure	10 bar
	Maximum Flow Rate	1700L/min
	Series	MS
	Connection Thread Standard	G
	Drain Type	Manual
	Filtration Size	40μm
	Pressure Gauge Port Size	1/4 in
	Maximum Operating Temperature	50°C
	Standards/Approvals	RoHS
	Pressure Gauge Port Thread Standard	G
	Bowl Material	Polycarbonate
	Pressure Setting Range	0.3 to 7 bar
	Model Number	8098254

	Alles selecteren
	Merk Festo
	Port Size 1/4 in G
	Product Type Filter Regulator
	Maximum Operating Pressure 10 bar
	Maximum Flow Rate 1700L/min
	Series MS
	Connection Thread Standard G
	Drain Type Manual
	Filtration Size 40μm
	Pressure Gauge Port Size 1/4 in
	Maximum Operating Temperature 50°C
	Standards/Approvals RoHS
	Pressure Gauge Port Thread Standard G
	Bowl Material Polycarbonate
	Pressure Setting Range 0.3 to 7 bar
	Model Number 8098254

Land van herkomst:: HU

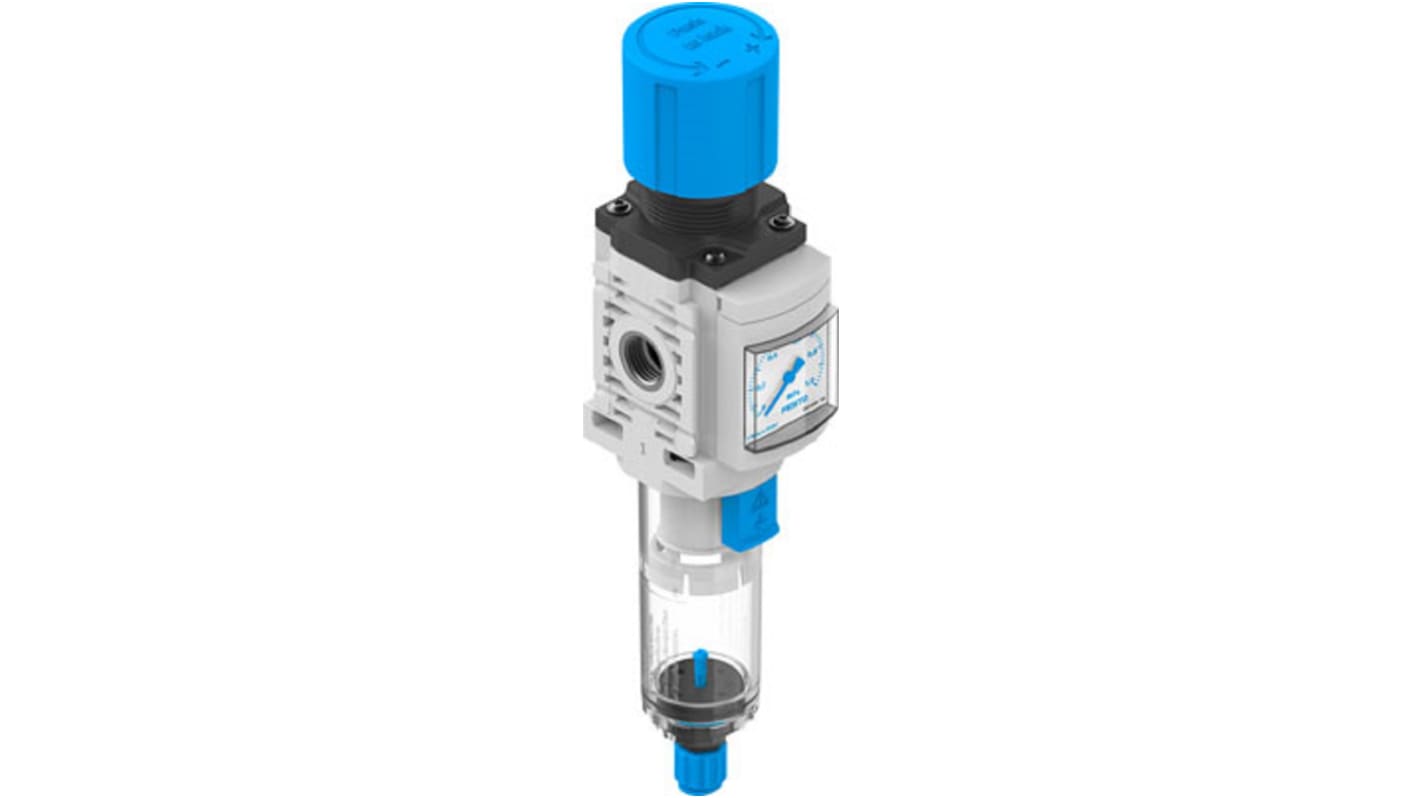

Festo Filter Regulator, Size 4, 1 to 10 Bar Operating Pressure - MS4-LFR-1/4-D6-E-P-M-AG-MPA-B

Enhance performance in your pneumatic circuits with this filter regulator from Festo. It's the kind of reliable and versatile workmate we all like, as it does two jobs in one – removing contaminants and controlling the flow of compressed air into your systems. Thanks to a durable reinforced PA housing, this unit can withstand wear and mechanical impact, so you can rely on it to stay on shift in the long term, even when the going gets tough. It can deliver between 0.3 and 7 bar of output pressure, making it a flexible all-rounder for light-duty and medium-duty applications.

Features & Benefits

• Wide operating temperature range of -5°C to +50°C for use in demanding conditions

• G1/4 thread for simple installation on your equipment

• NBR seals keep dust and contaminants out for optimal performance

• Integrated pressure gauge for quick and simple monitoring

• Comes with a rotary actuator and lock for easy pressure regulation

Applications

• Medical facilities

• Chemical laboratories

• Water treatment plants

How do I drain this filter regulator?

This filter regulator is designed to be manually drained. It has a knob at the bottom of its drain bowl that you turn to remove the contents of the container.
