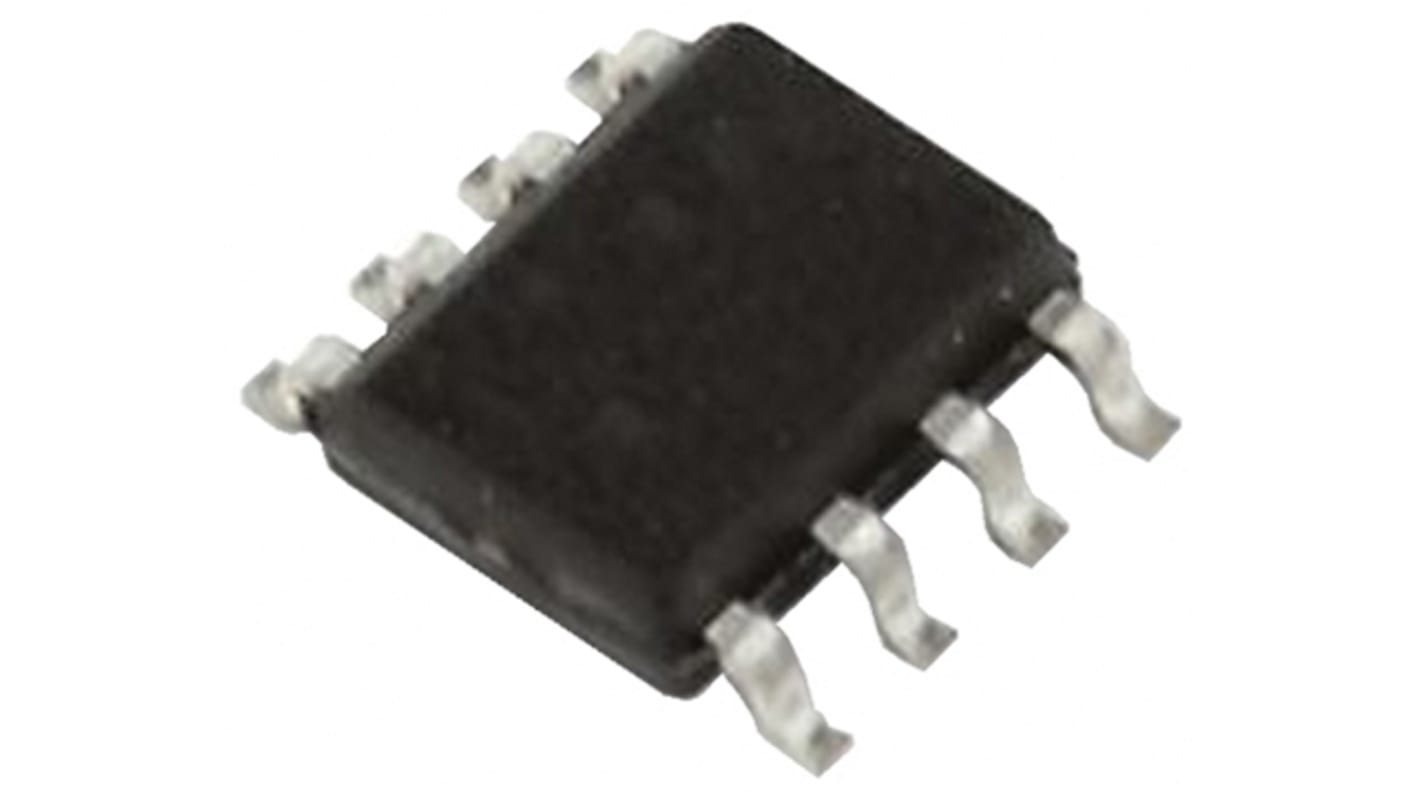

Texas Instruments SN74LVC2G74DCTR D Type Flip Flop IC, 8-Pin SSOP
- RS-stocknr.:
- 662-8960
- Fabrikantnummer:
- SN74LVC2G74DCTR
- Fabrikant:
- Texas Instruments
20 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
25 op voorraad - levertijd is 3 à 5 werkdagen (UK-voorraad)
Toegevoegd
Prijs Elk (in een pakket van 5)
€ 0,462
(excl. BTW)
€ 0,559
(incl. BTW)
| Aantal stuks | Per stuk | Per pak* |
| 5 - 20 | € 0,462 | € 2,31 |
| 25 - 45 | € 0,438 | € 2,19 |
| 50 - 120 | € 0,396 | € 1,98 |
| 125 - 245 | € 0,354 | € 1,77 |
| 250 + | € 0,338 | € 1,69 |
| *prijsindicatie | ||
- RS-stocknr.:
- 662-8960
- Fabrikantnummer:
- SN74LVC2G74DCTR
- Fabrikant:
- Texas Instruments
Datasheets
Wetgeving en compliance
Productomschrijving
74LVC2G Family, Texas Instruments
Low-Voltage CMOS logic
Single gate package
Operating Voltage: 1.65 to 5.5 V
Compatibility: Input LVTTL/TTL, Output LVCMOS
Single gate package
Operating Voltage: 1.65 to 5.5 V
Compatibility: Input LVTTL/TTL, Output LVCMOS
74LVC Family
Specificaties
Kenmerk | Waarde |
|---|---|
| Logic Family | LVC |
| Logic Function | D Type |
| Input Type | Single Ended |
| Output Signal Type | Differential |
| Triggering Type | Positive Edge |
| Polarity | Inverting, Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Pin Count | 8 |
| Set/Reset | Yes |
| Number of Elements per Chip | 1 |
| Maximum Propagation Delay Time @ Maximum CL | 6.2 ns @ 3.3 V |
| Dimensions | 2.95 x 2.8 x 1.29mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Height | 1.29mm |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +85 °C |
| Length | 2.95mm |
| Width | 2.8mm |
| Minimum Operating Supply Voltage | 1.65 V |
| Minimum Operating Temperature | -40 °C |
