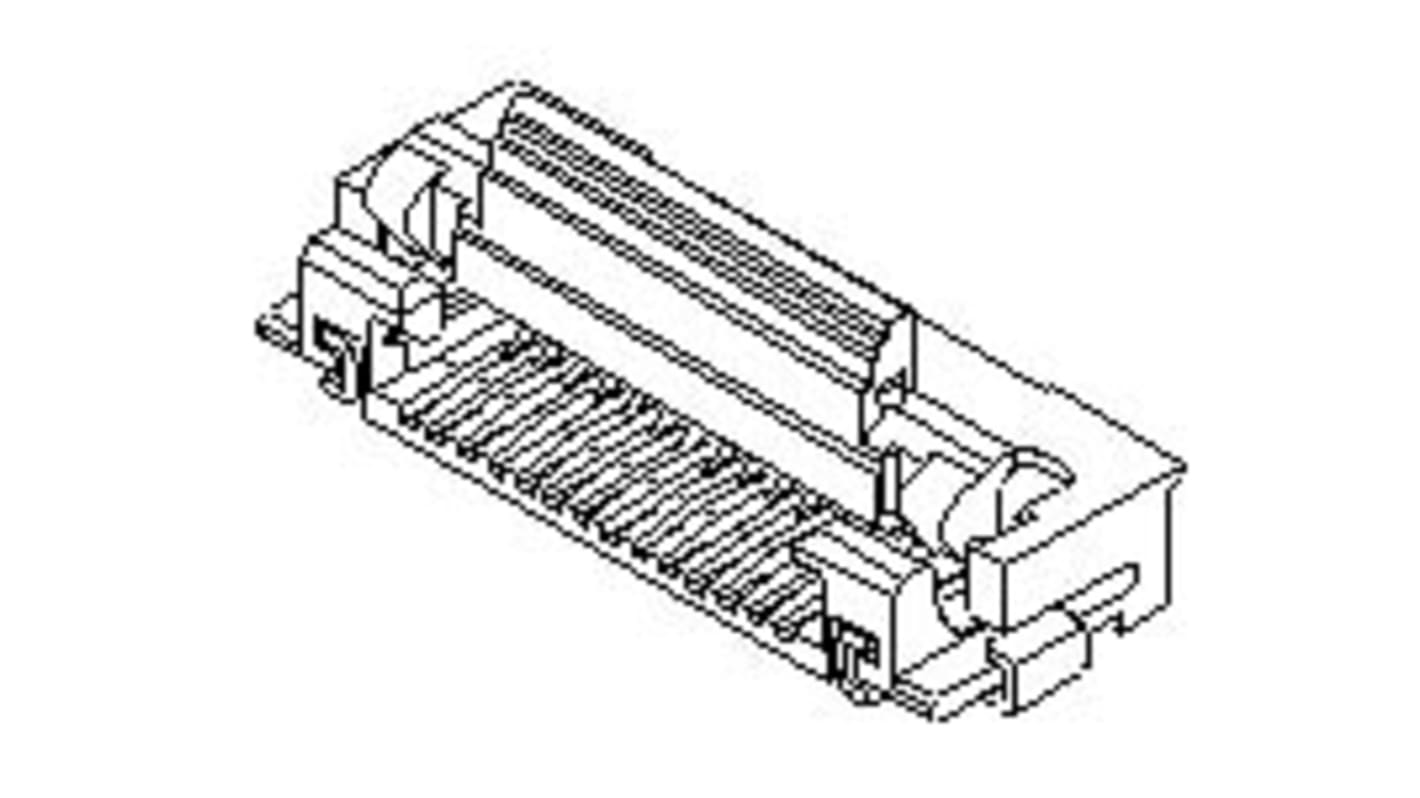

Molex, 52892 500 μm Pitch 8 Way Right Angle FPC Connector, ZIF Bottom Contact
- RS-stocknr.:
- 151-2712
- Fabrikantnummer:
- 528920833
- Fabrikant:
- Molex
Niet beschikbaar
RS heeft dit product niet meer op voorraad.
- RS-stocknr.:
- 151-2712
- Fabrikantnummer:
- 528920833
- Fabrikant:
- Molex
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Molex | |
| Series | 52892 | |
| Pitch | 500 μm | |
| Number of Contacts | 8 | |
| Orientation | Right Angle | |
| Product Type | FPC Connector | |
| Termination Type | ZIF Bottom Contact | |
| Contact Gender | Male | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Tin Silver Bismuth | |
| Contact Position | Bottom | |
| Current | 500 mA | |
| Housing Material | Polyamide | |
| Insertion Force | ZIF | |
| Locking Mechanism | Yes | |
| Maximum Operating Temperature | 85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Mount Type | Surface | |
| Number of Rows | 1 | |
| Standards/Approvals | No | |
| Sub Type | Easy-On FFC/FPC Connector | |
| Voltage | 50 V | |
| Alles selecteren | ||
|---|---|---|
Merk Molex | ||
Series 52892 | ||
Pitch 500 μm | ||
Number of Contacts 8 | ||
Orientation Right Angle | ||
Product Type FPC Connector | ||
Termination Type ZIF Bottom Contact | ||
Contact Gender Male | ||
Contact Material Phosphor Bronze | ||
Contact Plating Tin Silver Bismuth | ||
Contact Position Bottom | ||
Current 500 mA | ||
Housing Material Polyamide | ||
Insertion Force ZIF | ||
Locking Mechanism Yes | ||
Maximum Operating Temperature 85 °C | ||
Minimum Operating Temperature -40 °C | ||
Mount Type Surface | ||
Number of Rows 1 | ||
Standards/Approvals No | ||
Sub Type Easy-On FFC/FPC Connector | ||
Voltage 50 V | ||
- Land van herkomst:
- DE
0.50mm Pitch Easy-On Type FFC/FPC Connector, Right Angle, Surface Mount, ZIF, Bottom Contact Style, Cable Retention Guide, 8 Circuits
