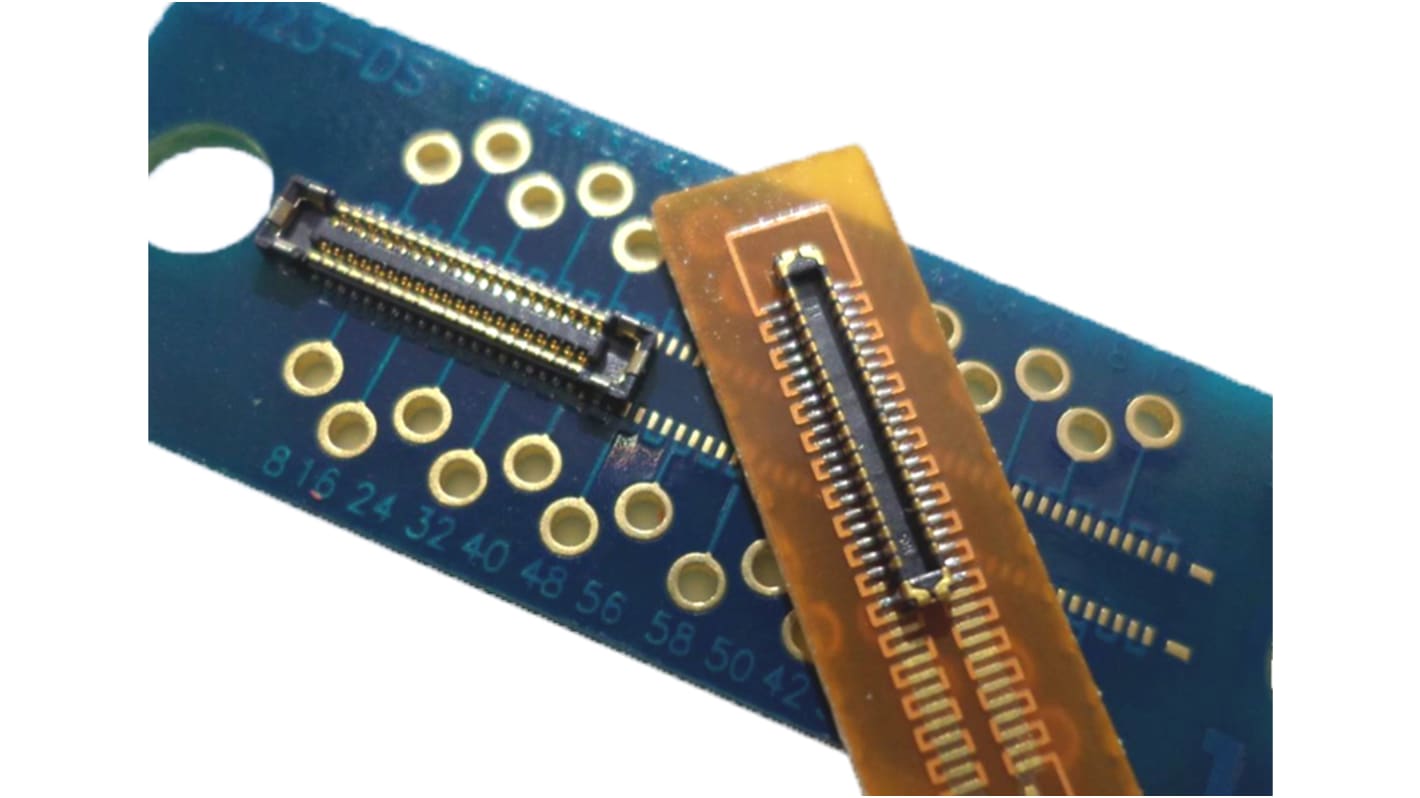

Hirose, 23 0.35 mm Pitch 30 Way Straight Female FPC Connector, Surface Mount
- RS-stocknr.:
- 162-0868
- Fabrikantnummer:
- BM23PF0.8-30DS-0.35V(895)
- Fabrikant:
- Hirose
Momenteel niet beschikbaar
Sorry, we weten niet wanneer dit weer voorradig zal zijn.
- RS-stocknr.:
- 162-0868
- Fabrikantnummer:
- BM23PF0.8-30DS-0.35V(895)
- Fabrikant:
- Hirose
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Hirose | |
| Number of Contacts | 30 | |
| Product Type | FPC Connector | |
| Contact Material | Phosphor Bronze | |
| Sub Type | FPC | |
| Pitch | 0.35mm | |
| Current | 0.3, 5A | |
| Mount Type | Surface | |
| Connector Gender | Female | |
| Termination Type | Surface Mount | |
| Contact Position | Top | |
| Insertion Force | Non-ZIF | |
| Orientation | Straight | |
| Locking Mechanism | Yes | |
| Voltage | 30V ac/dc | |
| Series | 23 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 85°C | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Number of Rows | 2 | |
| Contact Plating | Gold | |
| Housing Material | Liquid Crystal Polymer | |
| Alles selecteren | ||
|---|---|---|
Merk Hirose | ||
Number of Contacts 30 | ||
Product Type FPC Connector | ||
Contact Material Phosphor Bronze | ||
Sub Type FPC | ||
Pitch 0.35mm | ||
Current 0.3, 5A | ||
Mount Type Surface | ||
Connector Gender Female | ||
Termination Type Surface Mount | ||
Contact Position Top | ||
Insertion Force Non-ZIF | ||
Orientation Straight | ||
Locking Mechanism Yes | ||
Voltage 30V ac/dc | ||
Series 23 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 85°C | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Number of Rows 2 | ||
Contact Plating Gold | ||
Housing Material Liquid Crystal Polymer | ||
0.35mm pitch, 0.8mm height, Board to Board or Board to FPC Connectors with Rated Current Up to 5A
Rated current 5A
Highly reliable contact design
Good mating operation
Supports USB3.1 Gen.2 (10Gbps) transmission
