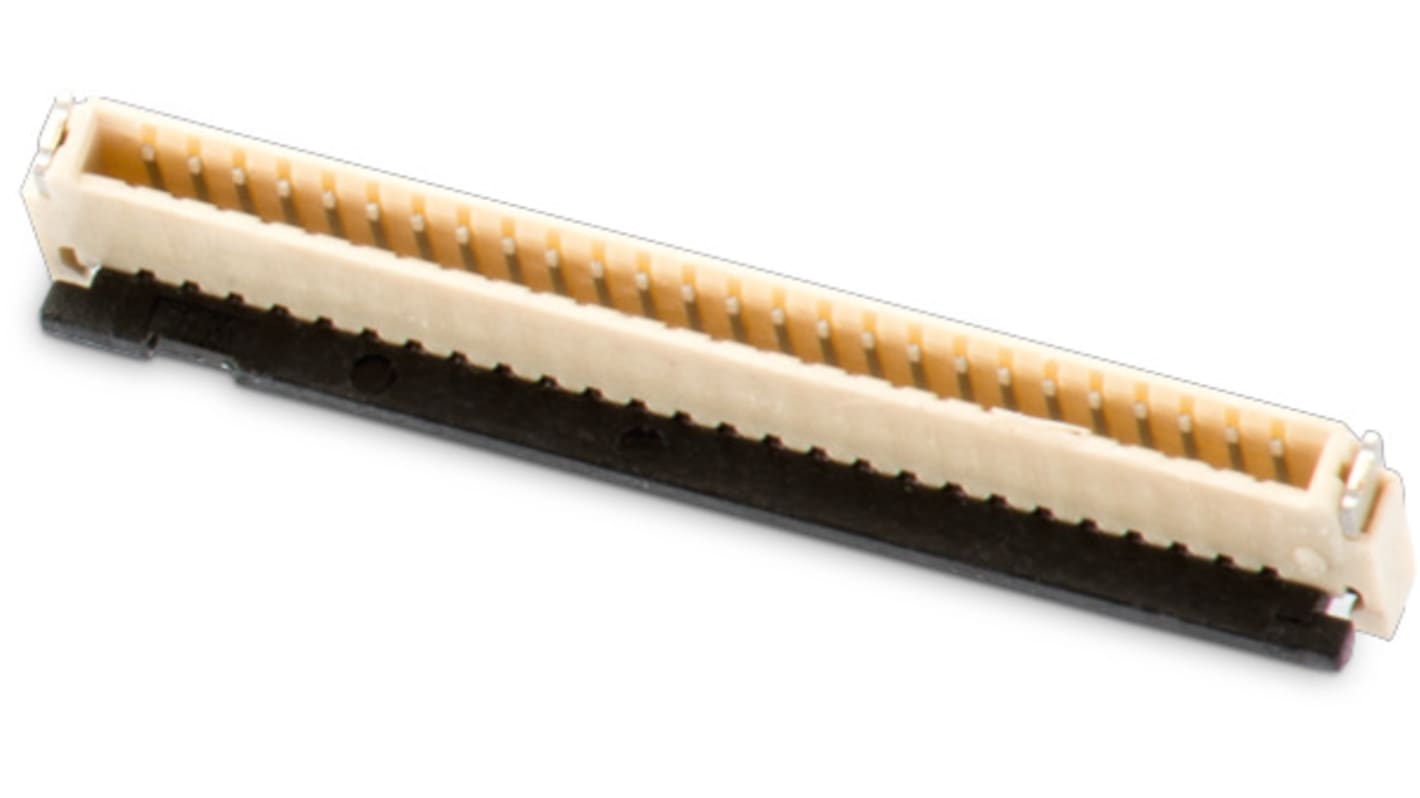

Wurth Elektronik, WR-FPC 0.5 mm Pitch 45 Way Horizontal Female FPC Connector, ZIF
- RS-stocknr.:
- 233-9845
- Fabrikantnummer:
- 687145182122
- Fabrikant:
- Wurth Elektronik
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 2,45
(excl. BTW)
€ 2,96
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk |
|---|---|
| 1 - 9 | € 2,45 |
| 10 - 99 | € 2,29 |
| 100 + | € 2,05 |
*prijsindicatie
- RS-stocknr.:
- 233-9845
- Fabrikantnummer:
- 687145182122
- Fabrikant:
- Wurth Elektronik
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Wurth Elektronik | |
| Product Type | FPC Connector | |
| Number of Contacts | 45 | |
| Sub Type | FPC | |
| Contact Material | Phosphor Bronze | |
| Pitch | 0.5mm | |
| Current | 0.5A | |
| Mount Type | Surface Mount | |
| Connector Gender | Female | |
| Termination Type | ZIF | |
| Contact Position | Dual | |
| Orientation | Horizontal | |
| Insertion Force | ZIF | |
| Locking Mechanism | Yes | |
| Minimum Operating Temperature | -55°C | |
| Series | WR-FPC | |
| Maximum Operating Temperature | 85°C | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Contact Plating | Tin over Nickel | |
| Housing Material | Liquid Crystal Polymer | |
| Alles selecteren | ||
|---|---|---|
Merk Wurth Elektronik | ||
Product Type FPC Connector | ||
Number of Contacts 45 | ||
Sub Type FPC | ||
Contact Material Phosphor Bronze | ||
Pitch 0.5mm | ||
Current 0.5A | ||
Mount Type Surface Mount | ||
Connector Gender Female | ||
Termination Type ZIF | ||
Contact Position Dual | ||
Orientation Horizontal | ||
Insertion Force ZIF | ||
Locking Mechanism Yes | ||
Minimum Operating Temperature -55°C | ||
Series WR-FPC | ||
Maximum Operating Temperature 85°C | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Contact Plating Tin over Nickel | ||
Housing Material Liquid Crystal Polymer | ||
- Land van herkomst:
- TW
The Wurth Elektronik WR-FPC 0.50 mm SMT ZIF Horizontal Dual Contact has Stamped contact type.
Insulator Material: LCP
Solder Tabs: Brass
