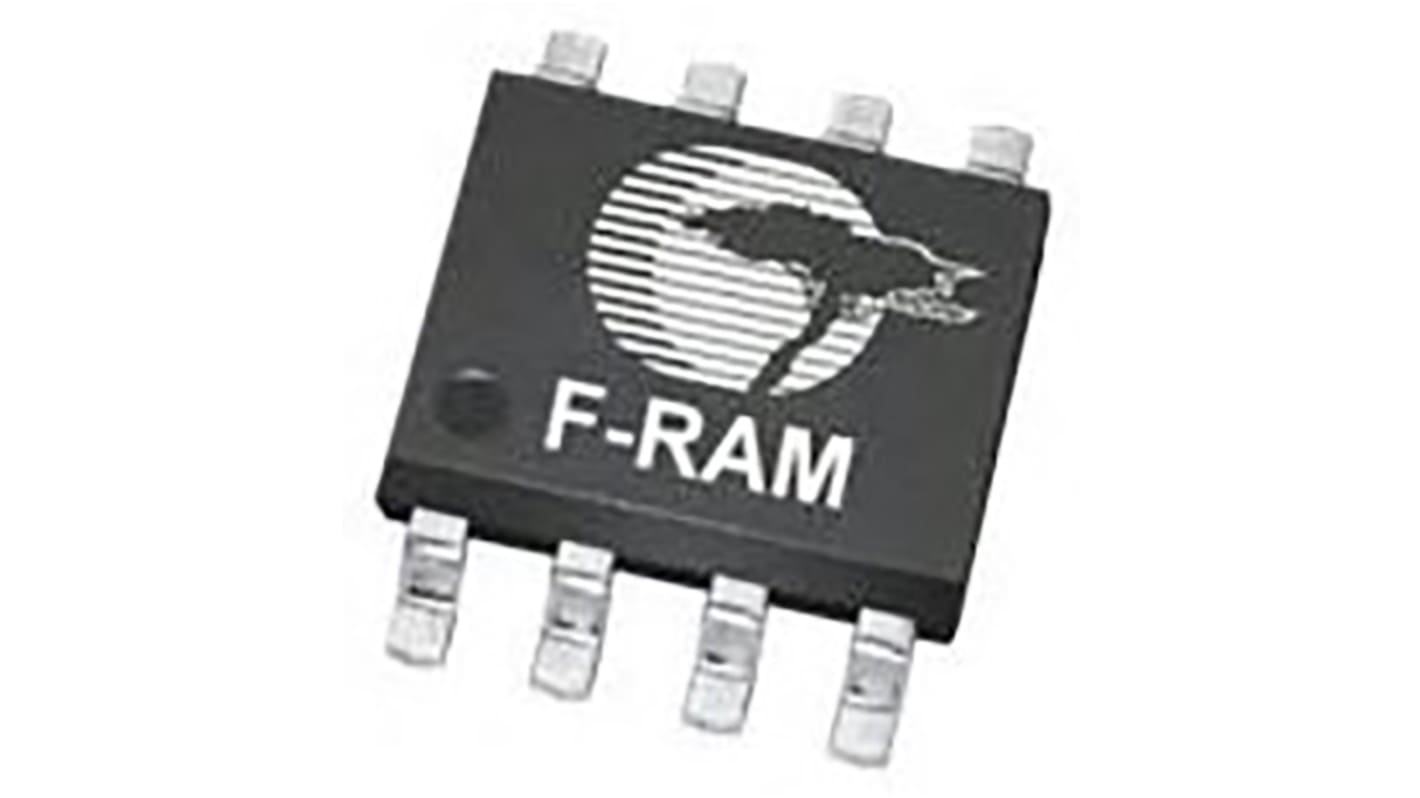

Infineon 64kbit Serial-I2C FRAM Memory 8-Pin SOIC, CY15B064J-SXE
- RS-stocknr.:
- 181-7438
- Fabrikantnummer:
- CY15B064J-SXE
- Fabrikant:
- Infineon
Sorry, we konden onze voorraadniveaus nu niet controleren. Probeer de pagina te vernieuwen.
Toegevoegd
Prijs Elk (in eentube van 97)
€ 4,531
(excl. BTW)
€ 5,483
(incl. BTW)
| Aantal stuks | Per stuk | Per tube* |
| 97 + | € 4,531 | € 439,507 |
| *prijsindicatie | ||
- RS-stocknr.:
- 181-7438
- Fabrikantnummer:
- CY15B064J-SXE
- Fabrikant:
- Infineon
Datasheets
Wetgeving en compliance
- Land van herkomst:
- US
Productomschrijving
64-Kbit ferro electric random access memory (F-RAM) logically organized as 8K x 8
High-endurance 10 trillion (1013) read/writes
121-year data retention (See the Data Retention and Endurance table)
No Delay™ writes
Advanced high-reliability ferro electric process
Fast 2-wire Serial interface (I2C)
Up to 1-MHz frequency
Direct hardware replacement for serial (I2C) EEPROM
Supports legacy timings for 100 kHz and 400 kHz
Low power consumption
120 A (typ) active current at 100 kHz
6 A (typ) standby current
Voltage operation: VDD = 3.0 V to 3.6 V
Automotive-E temperature: –40 C to +125 C
8-pin small outline integrated circuit (SOIC) package
High-endurance 10 trillion (1013) read/writes
121-year data retention (See the Data Retention and Endurance table)
No Delay™ writes
Advanced high-reliability ferro electric process
Fast 2-wire Serial interface (I2C)
Up to 1-MHz frequency
Direct hardware replacement for serial (I2C) EEPROM
Supports legacy timings for 100 kHz and 400 kHz
Low power consumption
120 A (typ) active current at 100 kHz
6 A (typ) standby current
Voltage operation: VDD = 3.0 V to 3.6 V
Automotive-E temperature: –40 C to +125 C
8-pin small outline integrated circuit (SOIC) package
Specificaties
Kenmerk | Waarde |
|---|---|
| Memory Size | 64kbit |
| Organisation | 8K x 8 bit |
| Interface Type | Serial-I2C |
| Data Bus Width | 8bit |
| Maximum Random Access Time | 3000ns |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 8 |
| Dimensions | 4.97 x 3.98 x 1.48mm |
| Length | 4.97mm |
| Width | 3.98mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Height | 1.48mm |
| Maximum Operating Temperature | +125 °C |
| Number of Bits per Word | 8bit |
| Minimum Operating Supply Voltage | 2 V |
| Minimum Operating Temperature | -40 °C |
| Number of Words | 8K |
| Automotive Standard | AEC-Q100 |
