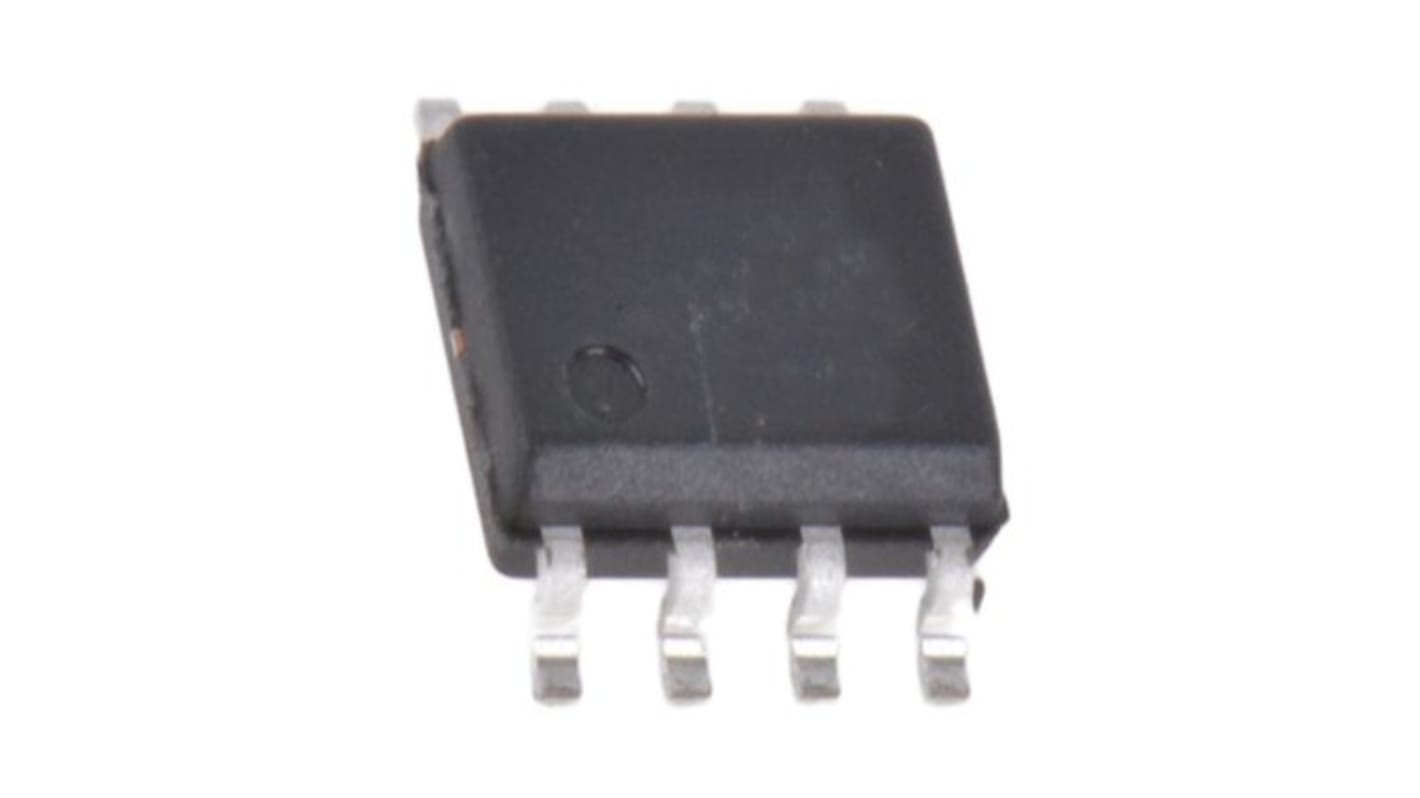

Infineon 128 kB Serial-SPI FRAM 8-Pin SOIC-8
- RS-stocknr.:
- 273-7321
- Fabrikantnummer:
- CY15B128Q-SXE
- Fabrikant:
- Infineon
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 5,88
(excl. BTW)
€ 7,11
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 75,00
Op voorraad
- 87 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 9 | € 5,88 |
| 10 - 24 | € 5,71 |
| 25 - 49 | € 5,57 |
| 50 - 99 | € 5,43 |
| 100 + | € 5,29 |
*prijsindicatie
- RS-stocknr.:
- 273-7321
- Fabrikantnummer:
- CY15B128Q-SXE
- Fabrikant:
- Infineon
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Infineon | |
| Memory Size | 128kB | |
| Product Type | FRAM | |
| Organisation | 16k x 8 bit | |
| Interface Type | Serial-SPI | |
| Data Bus Width | 8bit | |
| Maximum Clock Frequency | 33MHz | |
| Package Type | SOIC-8 | |
| Pin Count | 8 | |
| Standards/Approvals | RoHS | |
| Maximum Operating Temperature | 125°C | |
| Minimum Supply Voltage | 2.7V | |
| Number of Bits per Word | 8 | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | AEC-Q100 Grade 1 | |
| Number of Words | 16k | |
| Alles selecteren | ||
|---|---|---|
Merk Infineon | ||
Memory Size 128kB | ||
Product Type FRAM | ||
Organisation 16k x 8 bit | ||
Interface Type Serial-SPI | ||
Data Bus Width 8bit | ||
Maximum Clock Frequency 33MHz | ||
Package Type SOIC-8 | ||
Pin Count 8 | ||
Standards/Approvals RoHS | ||
Maximum Operating Temperature 125°C | ||
Minimum Supply Voltage 2.7V | ||
Number of Bits per Word 8 | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard AEC-Q100 Grade 1 | ||
Number of Words 16k | ||
The Infineon FRAM is a 128 Kbit non volatile memory employing an advanced ferroelectric process. A ferroelectric random access memory or FRAM is non volatile and performs reads and writes similar to a RAM. It provides reliable data retention for 121 years while eliminating the complexities, overhead, and system level reliability problems caused by serial flash, EEPROM, and other non volatile memories.
RoHS compliant
Low voltage operation
Low power consumption
AEC Q100 Grade 1 compliant
Sophisticated write protection scheme
Software protection using write disable instruction
