RS PRO Grey Lid Aluminium Enclosure, IP65, IP66, IP67, IP68, IK09, 90 mm x 360 mm x 360 mm

RS-stocknr.:: 122-8929
Fabrikant:: RS PRO

RS PRO Grey Lid Aluminium Enclosure, IP65, IP66, IP67, IP68, IK09, 90 mm x 360 mm x 360 mm

Subtotaal (1 eenheid)*

€ 181,94

(excl. BTW)

€ 220,15

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

12 stuk(s) klaar voor verzending vanaf een andere locatie

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 181,94

*prijsindicatie

RS-stocknr.:: 122-8929
Fabrikant:: RS PRO

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	RS PRO
	Product Type	Enclosure
	Body Material	Aluminium
	External Height	90mm
	External Width	360mm
	External Length	360mm
	IP Rating	IP65, IP66, IP67, IP68
	Lid Colour	Grey
	Flanged	No
	Shielding	Unshielded
	Hazardous Area Certification	ATEX, IECEx
	Series	RS PRO
	Standards/Approvals	No
	IK Rating	IK09
	Explosion Proof	Yes
	Gasket Material	Silicon

	Alles selecteren
	Merk RS PRO
	Product Type Enclosure
	Body Material Aluminium
	External Height 90mm
	External Width 360mm
	External Length 360mm
	IP Rating IP65, IP66, IP67, IP68
	Lid Colour Grey
	Flanged No
	Shielding Unshielded
	Hazardous Area Certification ATEX, IECEx
	Series RS PRO
	Standards/Approvals No
	IK Rating IK09
	Explosion Proof Yes
	Gasket Material Silicon

Land van herkomst:: IN

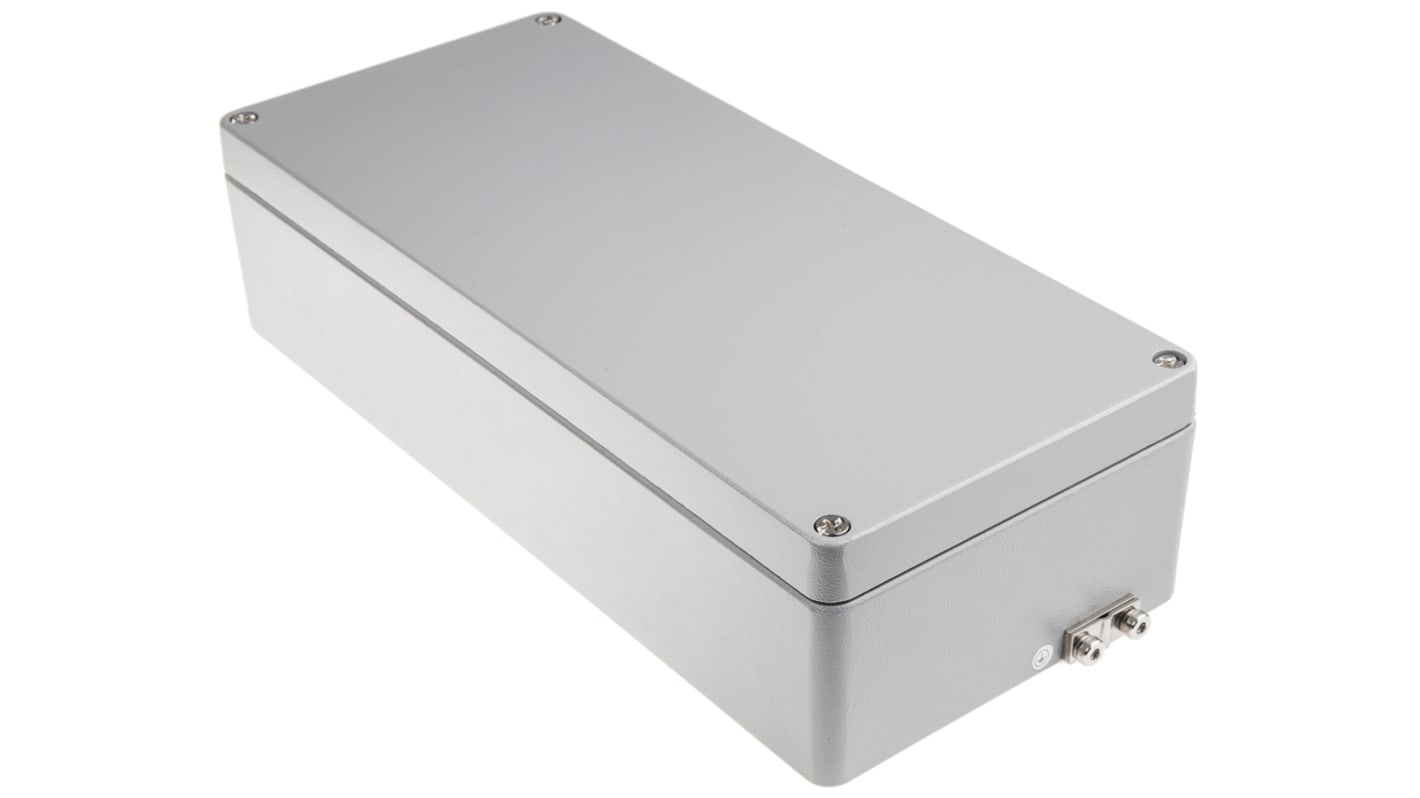

RS Pro Diecast Aluminium Enclosures

This diecast aluminium enclosure has a grey powder coat finish and is ATEX and IECEx approved, making it suitable for use in explosive atmospheres. It has an IK09 and IP66 rating which makes it suitable for use in various applications in the process control, automation and mining industries. It is also ideal for use on locomotives, crane hoists, solar panels, load cells, oil meters and high torque brakes.

Features and Benefits:

• AISi 12 aluminium

• Grey powder coated finish

• Stainless steel captive lid screws

• Service temperature: -50°C to 135°C

• Internal/external earthing: 4 mm² to 120 mm² internal and external

FAQ:

What does IP rating mean?

The IP rating is used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc) and moisture. For more information please, visit SOLUTIONS section at the top of the page or click on Selection Guide of an Enclosures.

What is the meaning of ATEX?

The ATEX directive consists of two EU directives describing what equipment and work space is allowed in an environment with an explosive atmosphere.

What is supplied?

• Enclosure body + cover ;• 4 cover screws

Certificate No.

• 11 2 G Ex e IIC Gb.
• 11 2 G Ex tb IIIC Db IP66.
• DEMKO 12 ATEX 1327771U.
• IECEx UL 13.0042U.

Approvals

• ATEX,
• IECEx,
• cULus,
• CE,
• RoHS,
• GOST-R.

Standards

• Mechanical Strength: in accordance with 60079-0, impact energy 7 Nm.
• Protection Class: EN60529, IP66.
• Compliance Standard: IEC/EN 60079-0, IEC/EN 60079-7 and IEC/EN 60079-31.
• Process Control System: ISO 9001:2008, IEC 80079-34:2011.
