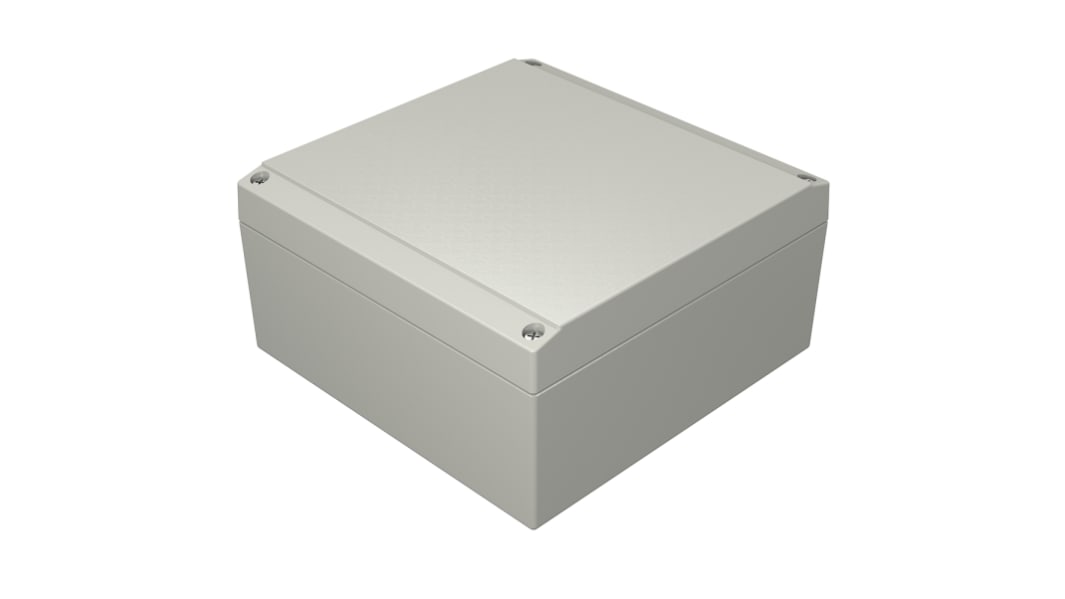

Rose Aluform Series Grey Die Cast Aluminium Enclosure, IP66, IK09 72.5 mm, 160 mm, 160 mm
- RS-stocknr.:
- 420-2418
- Fabrikantnummer:
- 041616080
- Fabrikant:
- Rose
Subtotaal (1 eenheid)*
€ 86,09
(excl. BTW)
€ 104,17
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 3 stuk(s) klaar voor verzending vanaf een andere locatie
- Plus verzending 3 stuk(s) vanaf 26 juni 2026
- Plus verzending 9 stuk(s) vanaf 07 augustus 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 86,09 |
*prijsindicatie
- RS-stocknr.:
- 420-2418
- Fabrikantnummer:
- 041616080
- Fabrikant:
- Rose
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Rose | |
| Body Material | Die Cast Aluminium | |
| Product Type | Enclosure | |
| External Height | 72.5mm | |
| External Length | 160mm | |
| External Width | 160mm | |
| IP Rating | IP66 | |
| Lid Colour | Grey | |
| Colour | Grey | |
| Flanged | No | |
| Shielding | Unshielded | |
| Hazardous Area Certification | UL, Maritime | |
| Series | Aluform | |
| Standards/Approvals | RoHS Compliant | |
| Weight | 1100g | |
| IK Rating | IK09 | |
| Transparent Door | No | |
| Gasket Material | Polyurethane | |
| Alles selecteren | ||
|---|---|---|
Merk Rose | ||
Body Material Die Cast Aluminium | ||
Product Type Enclosure | ||
External Height 72.5mm | ||
External Length 160mm | ||
External Width 160mm | ||
IP Rating IP66 | ||
Lid Colour Grey | ||
Colour Grey | ||
Flanged No | ||
Shielding Unshielded | ||
Hazardous Area Certification UL, Maritime | ||
Series Aluform | ||
Standards/Approvals RoHS Compliant | ||
Weight 1100g | ||
IK Rating IK09 | ||
Transparent Door No | ||
Gasket Material Polyurethane | ||
- Land van herkomst:
- DE
ROSE Die-Cast Aluminium Enclosure, 160mm Height, 81mm Depth - Aluform Series - 04161608
Protect your electronic components from damage and tampering with this watertight enclosure from ROSE. Its IP66 rating means it's dust-tight and resistant to high-pressure water jets. A polyurethane gasket helps keep moisture, contaminants and air out for additional protection. The lid is held securely in place with captive stainless steel screws, helping to prevent unauthorised access and tampering. It's also non-transparent to keep the contents of the enclosure hidden from view for added security. The die-cast aluminium material is resistant to corrosion and impact for long-lasting performance.
Features & Benefits
• Broad operating temperature range of -60°C to +130°C for use in harsh environments
• Designed for DIN rail mounting for ease of installation
• Wall thickness of 3mm for resistance to wear and impact
• Compact dimensions of 160 (height) x 160 (width) x 81mm (depth) for storing small components
Applications
• Telecommunications
• Solar power
• Computing
• Food and beverage manufacturing
How much does this enclosure weigh?
This enclosure has a light weight of just 1.12kg, so it won't place too much strain on your equipment.
Approvals
DIN1725; DIN 40050; DIN 50014
