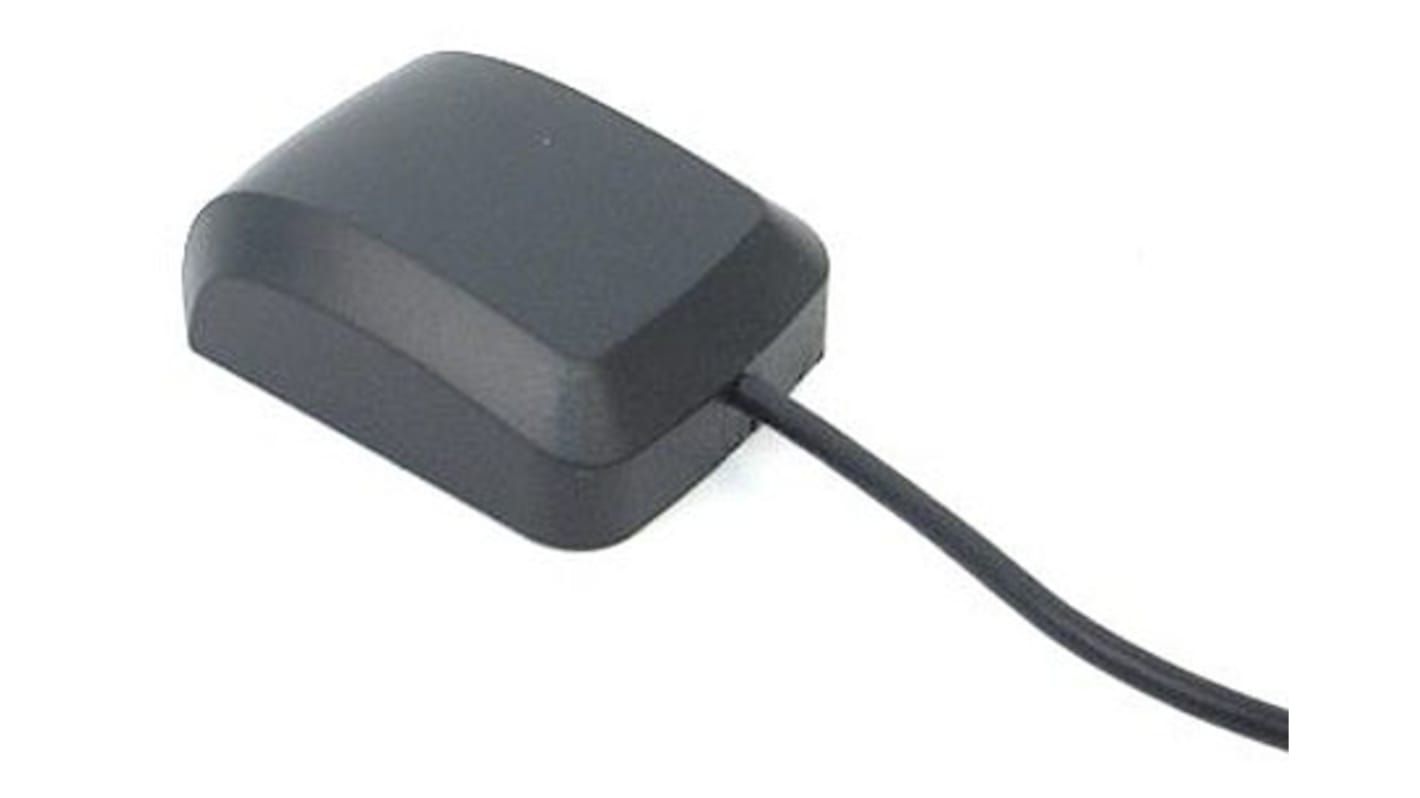

Siretta MIKE3A/3M/SMAM/S/S/17 Square GPS Antenna with SMA Connector, GPS

RS-stocknr.:: 896-8305
Fabrikantnummer:: MIKE3A/3M/SMAM/S/S/17
Fabrikant:: Siretta

Siretta MIKE3A/3M/SMAM/S/S/17 Square GPS Antenna with SMA Connector, GPS

Bulkkorting beschikbaar

Bekijk bulkkorting

Subtotaal (1 eenheid)*

€ 15,64

(excl. BTW)

€ 18,92

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

63 stuk(s) klaar voor verzending vanaf een andere locatie
Plus verzending 70 stuk(s) vanaf 19 augustus 2026
Plus verzending 70 stuk(s) vanaf 25 november 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 - 9	€ 15,64
10 - 24	€ 15,26
25 - 49	€ 14,39
50 - 99	€ 13,92
100 +	€ 13,21

*prijsindicatie

RS-stocknr.:: 896-8305
Fabrikantnummer:: MIKE3A/3M/SMAM/S/S/17
Fabrikant:: Siretta

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Siretta
	Internal/External	External
	Product Type	GPS Antenna
	Antenna Physical Form	Square
	Connector Type	SMA
	Lead Length	3000mm
	Antenna Mount Type	Magnetic
	Connector Gender	Male
	Antenna Internal Construction	Dielectric Antenna
	RF Protocols	GPS
	Gain	28dBi
	Lead Included	Yes
	Standards/Approvals	No
	Series	Mike 3A
	Number of Bands	1

	Alles selecteren
	Merk Siretta
	Internal/External External
	Product Type GPS Antenna
	Antenna Physical Form Square
	Connector Type SMA
	Lead Length 3000mm
	Antenna Mount Type Magnetic
	Connector Gender Male
	Antenna Internal Construction Dielectric Antenna
	RF Protocols GPS
	Gain 28dBi
	Lead Included Yes
	Standards/Approvals No
	Series Mike 3A
	Number of Bands 1

Mike 3A Magentic Mount Patch Antenna Data Sheet

Siretta GPS Antenna, 1575.42MHz Bandwidth, Magnetic Mount Type - MIKE3A/3M/SMAM/S/S/17

This GPS antenna provides external reception of GPS signals for industrial and technical installations. It is a square magnetic-mount aerial with an omni‑directional radiation pattern engineered for single‑band GPS operation at the L1 frequency. Delivered complete with a connector lead, it is suited to fixed or semi‑permanent mounting on metal surfaces in automation and instrumentation settings.

Features and Benefits:

• 1575.42 MHz centre frequency for precise L1 reception
• 28 dBi gain improves satellite signal sensitivity
• Magnetic mount enables quick attachment to metal surfaces
• SMA male connector allows direct mating with SMA‑equipped receivers
• 3000mm lead permits flexible positioning away from equipment
• Dielectric internal element offers stable performance across conditions

Applications

• Suitable for vehicle telematics requiring roof‑side mounting
• Ideal for GNSS timing in automation controller racks
• Used with survey receivers needing external antenna placement
• Can be used for machine‑location systems in manufacturing
• Suitable for test rigs where a removable antenna is required

What mounting method secures the antenna to metallic surfaces?

The unit uses a magnetic base that holds it in place on ferrous substrates for non‑permanent installation.

Which connector type interfaces with receivers and modems?

It terminates in an SMA male plug for direct connection to compatible SMA female ports.

How long is the attached cable and what does that allow?

The lead measures 3000 mm, enabling the antenna to be sited clear of electrical‑noise sources or awkward equipment positions.

Which environmental or regulatory standards does it meet?

The product complies with REACH and RoHS regulatory requirements for restricted substances.

Is the antenna suited to multi‑band GNSS applications?

It is designed for a single GPS band at 1575.42 MHz and will not provide reception on other GNSS frequency bands.
