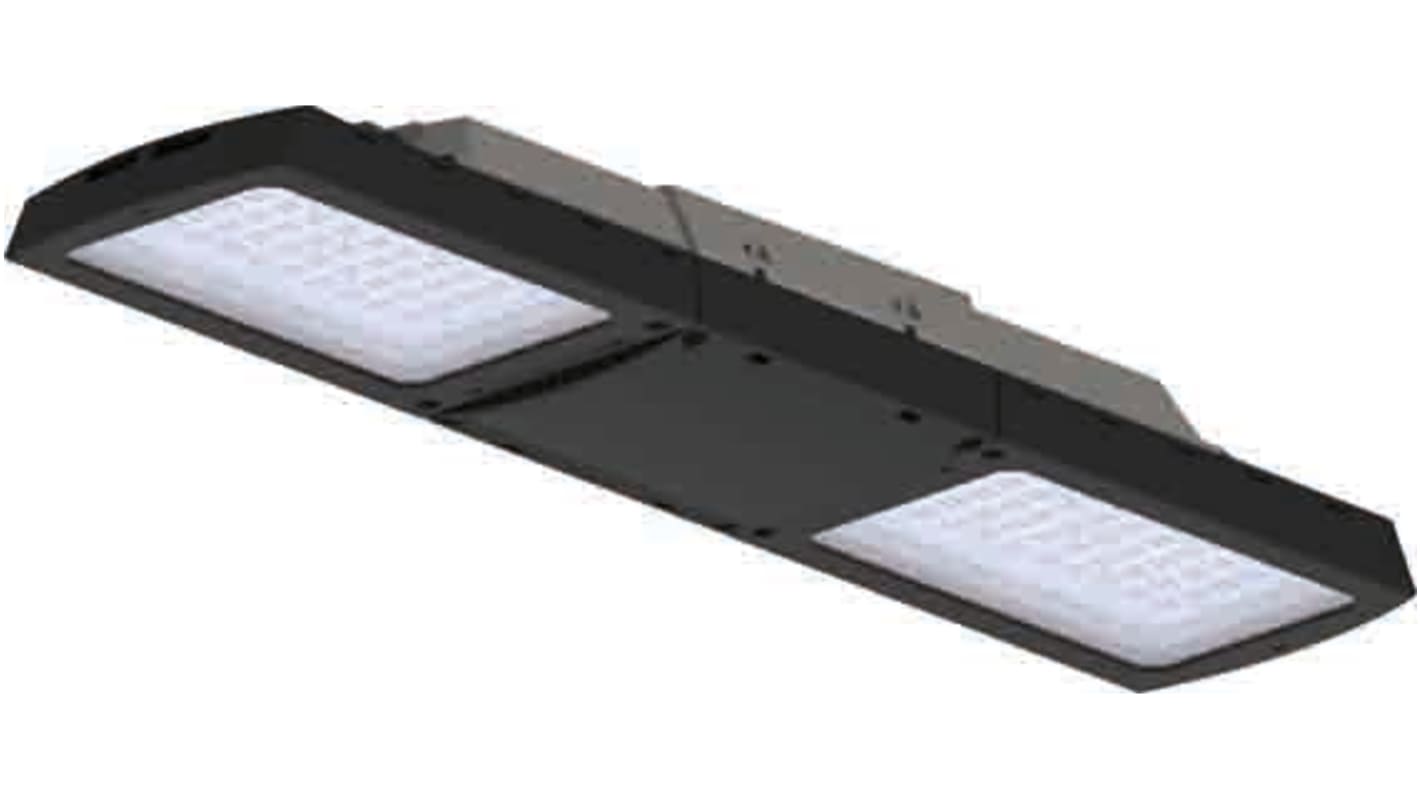

Eaton 67 W LED Lamp Lamp Hazardous Area Light Fitting, Temp T4, 277V ac,IECEx, ATEX

RS-stocknr.:: 220-6515
Fabrikantnummer:: 1 2300 170 111
Fabrikant:: Eaton

Eaton 67 W LED Lamp Lamp Hazardous Area Light Fitting, Temp T4, 277V ac,IECEx, ATEX

Subtotaal (1 eenheid)*

€ 1.013,90

(excl. BTW)

€ 1.226,82

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Voorradig bij de fabrikant

Klaar voor verzending vanaf 03 februari 2027

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 1.013,90

*prijsindicatie

RS-stocknr.:: 220-6515
Fabrikantnummer:: 1 2300 170 111
Fabrikant:: Eaton

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Eaton
	Mount Type	Lamp
	Product Type	Hazardous Area Light Fitting
	Temperature Classification	T4
	Housing Material	Fibreglass Reinforced Polyester
	Power	67W
	Sub Type	Lamp
	Lamp Type	LED
	Voltage	277V ac
	IP Rating	IP66, IP67
	Luminous Power	6920 lm (Frosted Glass Cover), 8120 lm (Clear Glass Cover)
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	55°C
	Number of Lamps	2
	Standards/Approvals	RoHS
	Length	931mm
	Width	201mm
	Hazardous Area Certification	IECEx, ATEX

	Alles selecteren
	Merk Eaton
	Mount Type Lamp
	Product Type Hazardous Area Light Fitting
	Temperature Classification T4
	Housing Material Fibreglass Reinforced Polyester
	Power 67W
	Sub Type Lamp
	Lamp Type LED
	Voltage 277V ac
	IP Rating IP66, IP67
	Luminous Power 6920 lm (Frosted Glass Cover), 8120 lm (Clear Glass Cover)
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 55°C
	Number of Lamps 2
	Standards/Approvals RoHS
	Length 931mm
	Width 201mm
	Hazardous Area Certification IECEx, ATEX

Datasheet - 1 2300 170 111

Land van herkomst:: RO

Eaton Hazardous Area Light Fitting, 4kV Surge Voltage Immunity, Clear Glass LED Cover - ExLin Series - 1 2300 170 111

In search of a guiding beacon in potentially explosive work zones? Let this hazardous area light fitting from Eaton illuminate the space. It provides up to 8120 lumens of brightness, giving you the radiance you need in low-light spots. The unit's LED strings operate individually to ensure your vision isn't hampered if one of them fails. Compact dimensions of 201 (L) x 931 (W) x 115mm (D) make it a cinch to install in areas with limited mounting space. You'll find fittings like this one used in applications such as industrial manufacturing and robotics.

Features & Benefits

• Low wattage of 67W makes it an energy-efficient workmate

• M20 metal thread for quick and hassle-free wiring

• Glass fibre-reinforced polyester enclosure offers wear and impact protection for use in harsh environments

• IP67 rating shows that it's fully protected from dust and immersion in up to 1m of water for 30 minutes

Does this fitting withstand surge voltage?

Yes, it handles up to 4kV of surge voltage without damage for uninterrupted illumination in the event of an electrical supply fault.

Note

Eaton formerly known as CEAG
