- RS-stocknr.:
- 181-0886
- Fabrikantnummer:
- 09200102612
- Fabrikant:
- HARTING
Bekijk deze categorie
Sorry, we konden onze voorraadniveaus nu niet controleren. Probeer de pagina te vernieuwen.
Prijs Each
€ 20,69
(excl. BTW)
€ 25,03
(incl. BTW)
Aantal stuks | Per stuk |
1 - 9 | € 20,69 |
10 - 24 | € 19,86 |
25 - 49 | € 19,01 |
50 + | € 18,22 |
- RS-stocknr.:
- 181-0886
- Fabrikantnummer:
- 09200102612
- Fabrikant:
- HARTING
Wetgeving en compliance
- Land van herkomst:
- DE
Productomschrijving

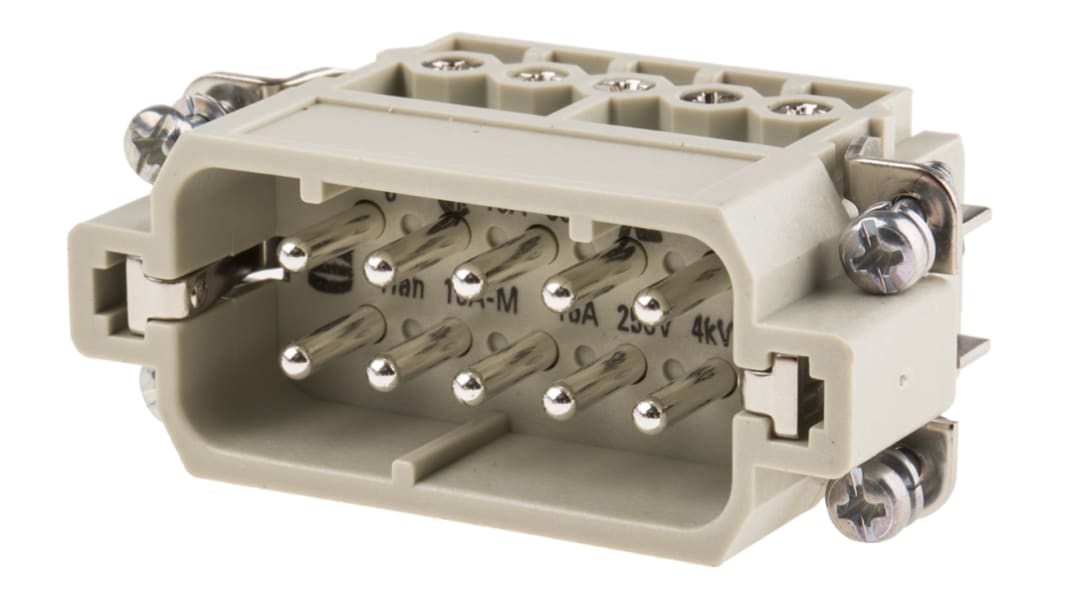

Han A® Inserts
Harting contact inserts have a wide range of uses. Inserts are selected according to the desired number of poles and voltage and current ratings.
Han A inserts options include:
1810482 – 09200042611, 4P+E pin insert,10A
1810498 – 09200042711, 4P+E socket insert,10A
1810858 – 09200032611, 3P+E pin insert,10A
1810870 – 09200032711, 3P+E socket insert,10A
1810886 – 09200102612, 10P+E pin insert,16A
1810892 – 09200102812, 10P+E socket insert,16A
1810915 – 09200162612, 16P+E pin insert,16A
1810937 – 09200162812, 16P+E socket insert,16A
Han A inserts options include:
1810482 – 09200042611, 4P+E pin insert,10A
1810498 – 09200042711, 4P+E socket insert,10A
1810858 – 09200032611, 3P+E pin insert,10A
1810870 – 09200032711, 3P+E socket insert,10A
1810886 – 09200102612, 10P+E pin insert,16A
1810892 – 09200102812, 10P+E socket insert,16A
1810915 – 09200162612, 16P+E pin insert,16A
1810937 – 09200162812, 16P+E socket insert,16A
Han A series Features:
Slim construction
Poles: 3-16 (screw connection)
Poles: 3-16 (screw connection)
Note
Two 16P + E inserts may be accommodated within a Size 32A housing (typical stock no 363-7964)
Warning
These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.
Approvals
UL, CSA, SEV


Han A® 10A to 16A Screw Series
These Han A® inserts are available in 10A and 16A current ratings. They are intended for use typically with hoods and housing; RS stock Nos. 114-8024, 181-0662 and 181-0690 and the associated ranges. These hoods and housings are associated to a specific Harting 'Size' number.
Specificaties
Kenmerk | Waarde |
Current Rating | 16A |
Gender | Male |
Series | Han A |
Type | Connector Insert |
Termination Method | Screw |
Pole Format | 10P+E |
Number of Rows | 2 |
Voltage Rating | 600 V |
Mounting Type | Panel Mount |
Number of Contacts | 10 |
Body Orientation | Straight |
