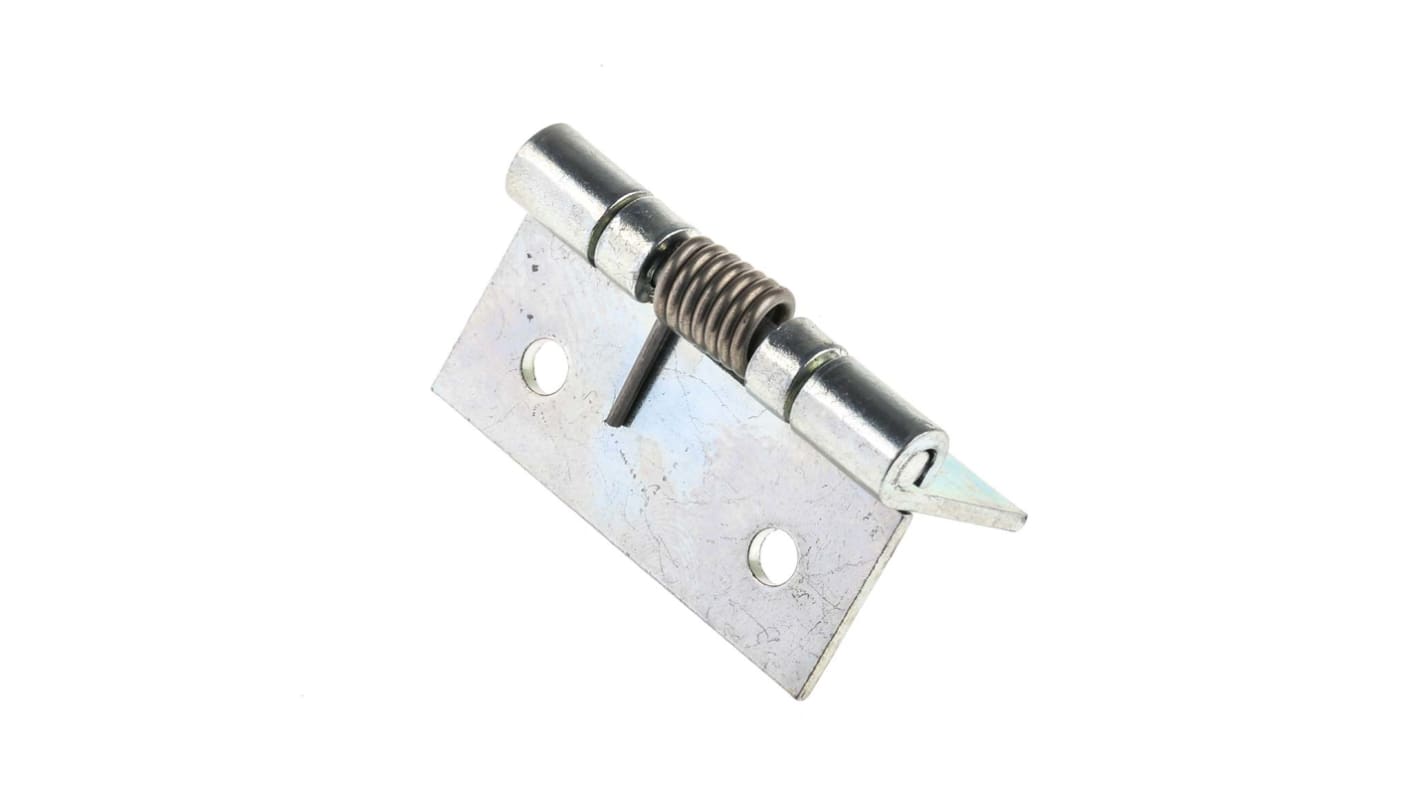

Pinet Zinc Plated Steel Spring with a Spring Loaded Pin, 50 mm x 50mm x 2 mm
- RS-stocknr.:
- 183-1637
- Fabrikantnummer:
- 71A3519
- Fabrikant:
- Pinet
Subtotaal (1 paar)*
€ 20,93
(excl. BTW)
€ 25,33
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 35 stuk(s) vanaf 26 augustus 2026
- Plus verzending 158 stuk(s) vanaf 26 augustus 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Paar | Per paar |
|---|---|
| 1 + | € 20,93 |
*prijsindicatie
- RS-stocknr.:
- 183-1637
- Fabrikantnummer:
- 71A3519
- Fabrikant:
- Pinet
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Pinet | |
| Product Type | Spring Hinge | |
| Material | Steel | |
| Hinge Type | Spring | |
| Length | 50mm | |
| Closing Type | Spring | |
| Width | 50mm | |
| Thickness | 2mm | |
| Pin Style | Spring Loaded | |
| Finish | Zinc Plated | |
| Holes per Leaf | 2 | |
| Standards/Approvals | No | |
| Alles selecteren | ||
|---|---|---|
Merk Pinet | ||
Product Type Spring Hinge | ||
Material Steel | ||
Hinge Type Spring | ||
Length 50mm | ||
Closing Type Spring | ||
Width 50mm | ||
Thickness 2mm | ||
Pin Style Spring Loaded | ||
Finish Zinc Plated | ||
Holes per Leaf 2 | ||
Standards/Approvals No | ||
- Land van herkomst:
- FR
Opening spring force:
M(0°): 1.5 N.m / M(90°): 1.1 N.m / M(180°): 0.65 N.m
Closing spring force:
M(0°): 0.25 N.m / M(90°): 0.65 N.m / M(180°): 1.1 N.m
